Device Management

Device management mainly provides device related operations, device control, device status change monitoring, device rename, device firmware upgrade, device remove, device restoration factory settings and other operations.

Class	Description
TuyaSmartDevice	Device Management Class
TuyaSmartDeviceModel	Device Model Class

TuyaSmartDeviceModel

Field	Type	Description
devId	NSString	Device Id
name	NSString	Device Name
iconUrl	NSString	Device Icon URL
isOnline	BOOL	Device Online Status. Include Wi-Fi、WLAN、Bluetooth. As long as any of them is YES, the value is YES.
isCloudOnline	BOOL	Device Wi-Fi Online Status
isLocalOnline	BOOL	Device WLAN Online Status
isShare	BOOL	Is Shared Device
dps	NSDictionary	Dps
dpCodes	NSDictionary	Dp Code
schemaArray	NSArray	Data Point Detail
productId	NSString	Product Id
capability	NSUInteger	Capability
deviceType	TuyaSmartDeviceModelType	Device Type
supportGroup	BOOL	Is Support Group
gwType	NSString	“v” Means Virtual Device
pv	NSString	Protocol Version
lpv	NSString	WLAN Protocol Version
latitude	NSString	latitude
longitude	NSString	longitude
localKey	NSString	A Key Used For Device Communication
uuid	NSString	Device uuid
homeId	long long	Home Id For Device
roomId	long long	Room Id For Device
upgrading	BOOL	Is Upgrading
timezoneId	NSString	Device Timezone Id
nodeId	NSString	Device Short Address
parentId	NSString	Parent Device Id
isMeshBleOnline	BOOL	Device Bluetooth Mesh Online Status
devKey	NSString	A Key Used For Standard SIG Mesh Device Communication
standard	BOOL	Is a Standardized Device
standSchemaModel	TuyaSmartStandSchemaModel	Standardized Data Point Detail
activeTime	NSTimeInterval	Active Time
sharedTime	long long	Shared Time

Initialize Device

Note: you need to initialize a home instance through TuyaSmartHome, then call the interface getHomeDetailWithSuccess:failure: get the details of the home. After synchronizing the details of the home, the device can be initialized successfully.

The wrong deviceId may cause initialization failure. Then, the instance of the device returns nil

Declaration

Initialize the device class according to the deviceId.

/**
 *  Get TuyaSmartDevice instance. If current user don't have this device, a nil will be return.
 *  获取设备实例。如果当前用户没有该设备，将会返回nil。
 *
 *  @param devId Device ID
 *  @return instance
 */
+ (nullable instancetype)deviceWithDeviceId:(NSString *)devId;

Parameters

Parameter	Description
devId	devId

Example

Objc:

TuyaSmartDevice *device = [TuyaSmartDevice deviceWithDeviceId:devId];
device.delegate = self;

Swift:

let device = TuyaSmartDevice(deviceId: devId)
device.delegate = self

Delegate of Device

After the TuyaSmartDeviceDelegate delegate protocol is realized, user can update the UI of the App device control in the callback of device status change.

Example

Objc:

- (void)initDevice {
    self.device = [TuyaSmartDevice deviceWithDeviceId:@"your_device_id"];
    self.device.delegate = self;
}

#pragma mark - TuyaSmartDeviceDelegate

- (void)device:(TuyaSmartDevice *)device dpsUpdate:(NSDictionary *)dps {
    // DPS status of the device changes, refresh the UI
}

- (void)deviceInfoUpdate:(TuyaSmartDevice *)device {
    // Device information updates such as device name modification, device online and offline status, etc
}

- (void)deviceRemoved:(TuyaSmartDevice *)device {
    // Device removed
}

- (void)device:(TuyaSmartDevice *)device signal:(NSString *)signal {
    // Wifi signal
}

- (void)device:(TuyaSmartDevice *)device firmwareUpgradeProgress:(NSInteger)type progress:(double)progress {
    // Firmware upgrade progress
}

- (void)device:(TuyaSmartDevice *)device firmwareUpgradeStatusModel:(TuyaSmartFirmwareUpgradeStatusModel *)upgradeStatusModel {
    // Callback of device upgrade status
}

Swift:

func initDevice() {
    device = TuyaSmartDevice(deviceId: "your_device_id")
    device?.delegate = self
}

// MARK: - TuyaSmartDeviceDelegate

func device(_ device: TuyaSmartDevice?, dpsUpdate dps: [AnyHashable : Any]?) {
    // DPS status of the device changes, refresh the UI
}

func deviceInfoUpdate(_ device: TuyaSmartDevice?) {
    // Device information updates such as device name modification, device online and offline status, etc
}

func deviceRemoved(_ device: TuyaSmartDevice?) {
    // Device removed
}

func device(_ device: TuyaSmartDevice?, signal: String?) {
    // Wifi signal
}

func device(_ device: TuyaSmartDevice?, firmwareUpgradeProgress type: Int, progress: Double) {
    // Firmware upgrade progress
}

func device(_ device: TuyaSmartDevice?, firmwareUpgradeStatusModel upgradeStatusModel: TuyaSmartFirmwareUpgradeStatusModel?) {
    // Callback of device upgrade status
}

Device Control

Device control supports three kinds of channel control, LAN control, cloud control, and automatic mode (if LAN is online, first go LAN control, LAN is not online, go cloud control)

LAN Control

	[self.device publishDps:dps mode:TYDevicePublishModeLocal success:^{
		NSLog(@"publishDps success");
	} failure:^(NSError *error) {
		NSLog(@"publishDps failure: %@", error);
	}];

Cloud Control

	[self.device publishDps:dps mode:TYDevicePublishModeInternet success:^{
		NSLog(@"publishDps success");
	} failure:^(NSError *error) {
		NSLog(@"publishDps failure: %@", error);
	}];

Auto Mode

	[self.device publishDps:dps mode:TYDevicePublishModeAuto success:^{
		NSLog(@"publishDps success");
	} failure:^(NSError *error) {
		NSLog(@"publishDps failure: %@", error);
	}];

Functions of Device

The dps (NSDictionary type) attribute of the TuyaSmartDeviceModel class defines the state of the device, and the state is called data point (DP) or function point.
Each key in the dps dictionary refers to a dpId of a function point, and Value refers to the dpValue of a function point. The dpValue is the value of the function point.

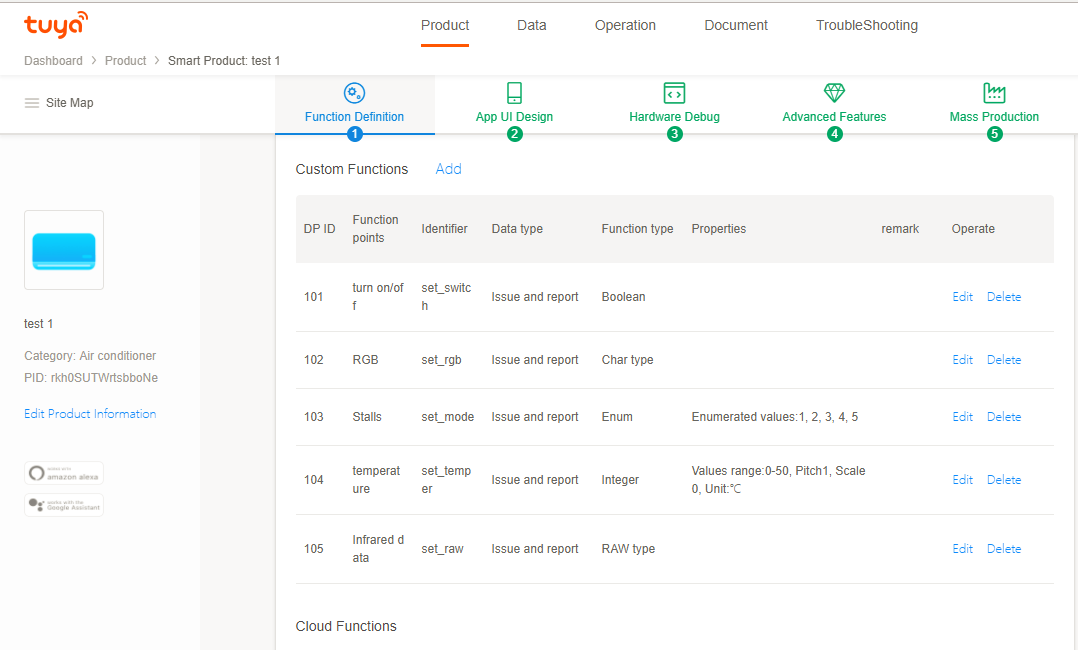

Refer to the functions of product in the Tuya developer platform for definition of function points of products. See the following figure.

The control instructions shall be sent in the format given below:

{"<dpId>":"<dpValue>"}

According to the definition of function points of the product in the back end, the example codes are as follows.

Example

Objc:

- (void)publishDps {
  // self.device = [TuyaSmartDevice deviceWithDeviceId:@"your_device_id"];

  NSDictionary *dps;

  // Set bool dp value to true
	dps = @{@"1": @(YES)};

  // Set string dp value to "ff5500"
	dps = @{@"4": @"ff5500"};

  // Set enum dp value to "Medium"
	dps = @{@"5": @"Medium"};

  // Set number dp value to 20
	dps = @{@"6": @(20)};

  // Set byte dp value to "1122"
	dps = @{@"15": @"1122"};

  // Send multiple dp values together
	dps = @{@"1": @(YES), @"4": @"ff5500"};

	[self.device publishDps:dps success:^{
		NSLog(@"publishDps success");

    // Publish dp success. device state change will be reported from deviceDpsUpdate delegate callback.

	} failure:^(NSError *error) {
		NSLog(@"publishDps failure: %@", error);
	}];


}

Swift:

func publishDps() {
    var dps = [String : Any]()

    // dps: Please refers to the specific product definition

    device?.publishDps(dps, success: {
 	    print("publishDps success")

      // Publish dp success. device state change will be reported from deviceDpsUpdate delegate callback.
    }, failure: { (error) in
        if let e = error {
            print("publishDps failure: \(e)")
        }
    })
}

Note:

• Special attention shall be paid to the type of data in sending the control commands. For example, the data type of function points shall be value, and the @{@"2": @(25)} instead of @{@"2": @"25"} shall be sent for the control command.
• In the transparent transmission, the byte string shall be the string format, and all letters shall be in the lower case, and the string must have even bits. The correct format shall be: @{@"1": @"011f"} instead of @{@"1": @"11f"}

For more concepts of function points, please refer to the QuickStart-Related Concepts of Function Points

Querying Device Information

Declaration

Query single dp data.

Query the latest data of the dp from the device; those data will be called back via the - (void)device:(TuyaSmartDevice *)device dpsUpdate:(NSDictionary *)dps delegate.

Example

Objc:

- (void)queryDP {
    // self.device = [TuyaSmartDevice deviceWithDeviceId:@"your_device_id"];
    // query dp = "1"
  [self.device publishDps:@{@"1":null} mode:TYDevicePublishModeAuto success:^{
        NSLog(@"query dp success");
    } failure:^(NSError *error) {
        NSLog(@"query dp failure: %@", error);
    }];
}

Swift:

func queryDP() {
    // self.device = [TuyaSmartDevice deviceWithDeviceId:@"your_device_id"];
    // query dp = "1"
    device.publishDps([
        "1": null
    ], mode: TYDevicePublishModeAuto, success: {
        print("query dp success")
    }, failure: { error in
        if let error = error {
            print("query dp failure: \(error)")
        }
    })
}

Notes

• This interface is mainly for the dp points where the data will not be reported automatically. The dp data values for regular query can be obtained through TuyaSmartDeviceModel.dps.

Modify the Device Name

Declaration

- (void)updateName:(NSString *)name success:(nullable TYSuccessHandler)success failure:(nullable TYFailureError)failure;

Parameters

Parameter	Description
name	New device name
success	Success block
failure	Failure block

Example

Objc:

- (void)modifyDeviceName:(NSString *)mame {
	// self.device = [TuyaSmartDevice deviceWithDeviceId:@"your_device_id"];

	[self.device updateName:name success:^{
		NSLog(@"updateName success");
	} failure:^(NSError *error) {
		NSLog(@"updateName failure: %@", error);
	}];
}

Swift:

func modifyDeviceName(_ name: String) {
    device?.updateName(name, success: {
        print("updateName success")
    }, failure: { (error) in
        if let e = error {
            print("updateName failure: \(e)")
        }
    })
}

Remove Device

After a device is removed, it will be in the to-be-network-configured status (smart config mode).

Declaration

- (void)remove:(nullable TYSuccessHandler)success failure:(nullable TYFailureError)failure;

Parameters

Parameter	Description
success	Success block
failure	Failure block

Example

Objc:

- (void)removeDevice {
	// self.device = [TuyaSmartDevice deviceWithDeviceId:@"your_device_id"];

	[self.device remove:^{
		NSLog(@"remove success");
	} failure:^(NSError *error) {
		NSLog(@"remove failure: %@", error);
	}];
}

Swift:

func removeDevice() {
    device?.remove({
        print("remove success")
    }, failure: { (error) in
        if let e = error {
            print("remove failure: \(e)")
        }
    })
}

Restore Factory Settings

After the device is restored to the factory settings, it will re-enter the network to be distributed state (smart config mode), and the relevant data of the device will be cleared.

Declaration

- (void)resetFactory:(nullable TYSuccessHandler)success failure:(nullable TYFailureError)failure;

Parameters

Parameter	Description
success	Success block
failure	Failure block

Example

Objc:

- (void)removeDevice {
	// self.device = [TuyaSmartDevice deviceWithDeviceId:@"your_device_id"];

	[self.device resetFactory:^{
		NSLog(@"reset success");
	} failure:^(NSError *error) {
		NSLog(@"reset failure: %@", error);
	}];
}

Swift:

func removeDevice() {
    device?.resetFactory({
        print("reset success")
    }, failure: { (error) in
        if let e = error {
            print("reset failure: \(e)")
        }
    })
}

Obtain Wi-Fi Signal Strength

Declaration

After calling Get Device Wi-Fi Signal, TuyaSmartDeviceDelegate device:signal: will be called

- (void)getWifiSignalStrengthWithSuccess:(nullable TYSuccessHandler)success failure:(nullable TYFailureError)failure;

Parameters

Parameter	Description
success	Send success block
failure	Failure block

Example

Objc:

- (void)getWifiSignalStrength {
	// self.device = [TuyaSmartDevice deviceWithDeviceId:@"your_device_id"];
    // self.device.delegate = self;

	[self.device getWifiSignalStrengthWithSuccess:^{
		NSLog(@"get wifi signal strength success");
	} failure:^(NSError *error) {
		NSLog(@"get wifi signal strength failure: %@", error);
	}];
}

#pragma mark - TuyaSmartDeviceDelegate

- (void)device:(TuyaSmartDevice *)device signal:(NSString *)signal {
    NSLog(@" signal : %@", signal);
}

Swift:

func getWifiSignalStrength() {
    self.device?.getWifiSignalStrength(success: {
        print("get wifi signal strength success")
    }, failure: { (error) in
        if let e = error {
            print("get wifi signal strength failure: \(e)")
        }
    })
}

// MARK: - TuyaSmartDeviceDelegate
func device(_ device: TuyaSmartDevice!, signal: String!) {

}

Obtain the Sub-Device List of a Gateway

Declaration

- (void)getSubDeviceListFromCloudWithSuccess:(nullable void (^)(NSArray <TuyaSmartDeviceModel *> *subDeviceList))success failure:(nullable TYFailureError)failure;

Parameters

Parameter	Description
success	Success block
failure	Failure block

Example

Objc:

- (void)getSubDeviceList {
	// self.device = [TuyaSmartDevice deviceWithDeviceId:@"your_device_id"];

	[self.device getSubDeviceListFromCloudWithSuccess:^(NSArray<TuyaSmartDeviceModel *> *subDeviceList) {
        NSLog(@"get sub device list success");
    } failure:^(NSError *error) {
        NSLog(@"get sub device list failure: %@", error);
    }];
}

Swift:

func getSubDeviceList() {
    device?.getSubDeviceListFromCloud(success: { (subDeviceList) in
        print("get sub device list success")
    }, failure: { (error) in
        if let e = error {
            print("get sub device list failure: \(e)")
        }
    })
}

Firmware Upgrade

Firmware upgrade process:

Obtain device upgrade information -> send module upgrade instructions -> module upgrade succeeds -> send upgrade instructions to the device control module -> the upgrade of device control module succeeds

User obtain device upgrade information interface to get TuyaSmartFirmwareUpgradeModel, you can get firmware type from type property, get type description from typeDesc property.

Obtain Device Upgrade Information

Declaration

- (void)getFirmwareUpgradeInfo:(nullable void (^)(NSArray <TuyaSmartFirmwareUpgradeModel *> *upgradeModelList))success failure:(nullable TYFailureError)failure;

Parameters

Parameter	Description
success	Success block
failure	Failure block

TuyaSmartFirmwareUpgradeModel Description

Field	Type	Description
desc	NSString	Upgrade title
typeDesc	NSString	Device type upgrade content
upgradeStatus	NSInteger	0:No upgrade 1:Has new version 2:Upgrading 5:Waiting for wake up
version	NSString	Firmware version
upgradeType	NSInteger	0:App Remind upgrade 2:app force upgrade 3:check upgrade
url	NSString	URL for firmware
fileSize	NSString	Firmware size
md5	NSString	MD5 for Firmware
upgradingDesc	NSString	The content when upgrading

Example

Objc:

- (void)getFirmwareUpgradeInfo {
	// self.device = [TuyaSmartDevice deviceWithDeviceId:@"your_device_id"];

	[self.device getFirmwareUpgradeInfo:^(NSArray<TuyaSmartFirmwareUpgradeModel *> *upgradeModelList) {
		NSLog(@"getFirmwareUpgradeInfo success");
	} failure:^(NSError *error) {
		NSLog(@"getFirmwareUpgradeInfo failure: %@", error);
	}];
}

Swift:

func getFirmwareUpgradeInfo() {
    device?.getFirmwareUpgradeInfo({ (upgradeModelList) in
        print("getFirmwareUpgradeInfo success")
    }, failure: { (error) in
        if let e = error {
            print("getFirmwareUpgradeInfo failure: \(e)")
        }
    })
}

Start Upgrade

Declaration

- (void)upgradeFirmware:(NSInteger)type success:(nullable TYSuccessHandler)success failure:(nullable TYFailureError)failure;

Parameters

Parameter	Description
type	type: The type to be upgraded is obtained from the device upgrade information interface getFirmwareUpgradeInfo
success	Success block
failure	Failure block

Example

Objc:

- (void)upgradeFirmware {
	// self.device = [TuyaSmartDevice deviceWithDeviceId:@"your_device_id"];
	// type: get firmware type from getFirmwareUpgradeInfo interface
	// TuyaSmartFirmwareUpgradeModel - type

	[self.device upgradeFirmware:type success:^{
		NSLog(@"upgradeFirmware success");
	} failure:^(NSError *error) {
		NSLog(@"upgradeFirmware failure: %@", error);
	}];
}

Swift:

func upgradeFirmware() {
    // type: get firmware type from getFirmwareUpgradeInfo interface
    // TuyaSmartFirmwareUpgradeModel - type

    device?.upgradeFirmware(type, success: {
        print("upgradeFirmware success")
    }, failure: { (error) in
        if let e = error {
            print("upgradeFirmware failure: \(e)")
        }
    })
}

Callback Interface

Example

Objc:

- (void)deviceFirmwareUpgradeSuccess:(TuyaSmartDevice *)device type:(NSInteger)type {
	// firmware upgrade success
}

- (void)deviceFirmwareUpgradeFailure:(TuyaSmartDevice *)device type:(NSInteger)type {
	// firmware upgrade failure
}

- (void)device:(TuyaSmartDevice *)device firmwareUpgradeProgress:(NSInteger)type progress:(double)progress {
	// firmware upgrade progress
}

Swift:

func deviceFirmwareUpgradeSuccess(_ device: TuyaSmartDevice!, type: Int) {
    // firmware upgrade success
}

func deviceFirmwareUpgradeFailure(_ device: TuyaSmartDevice!, type: Int) {
    // firmware upgrade failure
}

func device(_ device: TuyaSmartDevice!, firmwareUpgradeProgress type: Int, progress: Double) {
    // firmware upgrade progress
}

Fetch the Log of DP Report

Fetch the recent log of the DP report. It is only available for the result of 7 days, if you need more days’ results, please refer to the common interface.

Description

Name	Version	Description
tuya.m.smart.operate.all.log	1.0	Fetch the log of DP report

Parameters

Name	Type	Description	Is Required?
devId	String	Device ID	true
dpIds	String	The DP id for querying, splitted by comma. For example: @“1，2”	true
offset	Integer	The offset of pagination	true
limit	Integer	The number of fetched data per page	true
startTime	String	The start time for the query (unit in milliseconds)	false
endTime	String	The end time for the query (unit in milliseconds)	false
sortType	String	The order of sorted results, sorted by time. (ASC or DESC, Default is DESC)	false

Request Example

{
  "devId" : "05200020b4e62d16ce8b",
  "dpIds" : "1,2",
  "offset" : 0,
  "limit" : 10,
  "startTime" : "1542800401000",
  "endTime" : "1542886801000",
  "sortType" : "DESC"
}

Response Example

{
  "result" : {
    "total" : 11055,
    "dps" : [ {
      "timeStamp" : 1542829972,
      "dpId" : 5,
      "timeStr" : "2018-11-21 20:52:52",
      "value" : "311"
    }, {
      "timeStamp" : 1542829970,
      "dpId" : 5,
      "timeStr" : "2018-11-21 20:52:50",
      "value" : "323"
    }, {
      "timeStamp" : 1542829966,
      "dpId" : 5,
      "timeStr" : "2018-11-21 20:52:46",
      "value" : "230"
    }, {
      "timeStamp" : 1542829964,
      "dpId" : 5,
      "timeStr" : "2018-11-21 20:52:44",
      "value" : "231"
    }, {
      "timeStamp" : 1542829960,
      "dpId" : 5,
      "timeStr" : "2018-11-21 20:52:40",
      "value" : "307"
    }, {
      "timeStamp" : 1542829958,
      "dpId" : 5,
      "timeStr" : "2018-11-21 20:52:38",
      "value" : "320"
    }, {
      "timeStamp" : 1542829954,
      "dpId" : 5,
      "timeStr" : "2018-11-21 20:52:34",
      "value" : "229"
    }, {
      "timeStamp" : 1542829950,
      "dpId" : 5,
      "timeStr" : "2018-11-21 20:52:30",
      "value" : "325"
    }, {
      "timeStamp" : 1542829948,
      "dpId" : 5,
      "timeStr" : "2018-11-21 20:52:28",
      "value" : "292"
    }, {
      "timeStamp" : 1542829942,
      "dpId" : 5,
      "timeStr" : "2018-11-21 20:52:22",
      "value" : "231"
    } ],
    "hasNext" : true
  },
  "t" : 1542959314632,
  "success" : true,
  "status" : "ok"
}

Example

Objc:

- (void)getOperationLogList {

  [[TuyaSmartRequest new] requestWithApiName:@"tuya.m.smart.operate.all.log" postData:@{@"devId":@"", @"dpIds", @"1", @"offset":@(0), @"limit":@(10)} version:@"1.0" success:^(id result) {

  } failure:^(NSError *error) {

  }];

}

Swift:

func getOperationLogList() {

    TuyaSmartRequest().init(apiName: "tuya.m.smart.operate.all.log", postData: [:], version: "1.0", success: { result in

    }, failure: { error in

    })

}
