AI Stream

Prerequisites

Set up development environment

Before integrating the AI stream, read and implement the Preparation.

After integration is completed, add the dependency to your Podfile:

target 'xxxxx' do
  # Note: ThingSmartHomeKit requires v6.7.0 or later.
  # ...

  # Import the AI stream SDK
  pod 'ThingSmartBusinessExtensionKitAIStreamExtra'
end

Set up the agent

To enable the AI agent in your app, perform the following steps:

1. Create an AI agent. For more information, see AI Agent Dev Platform.

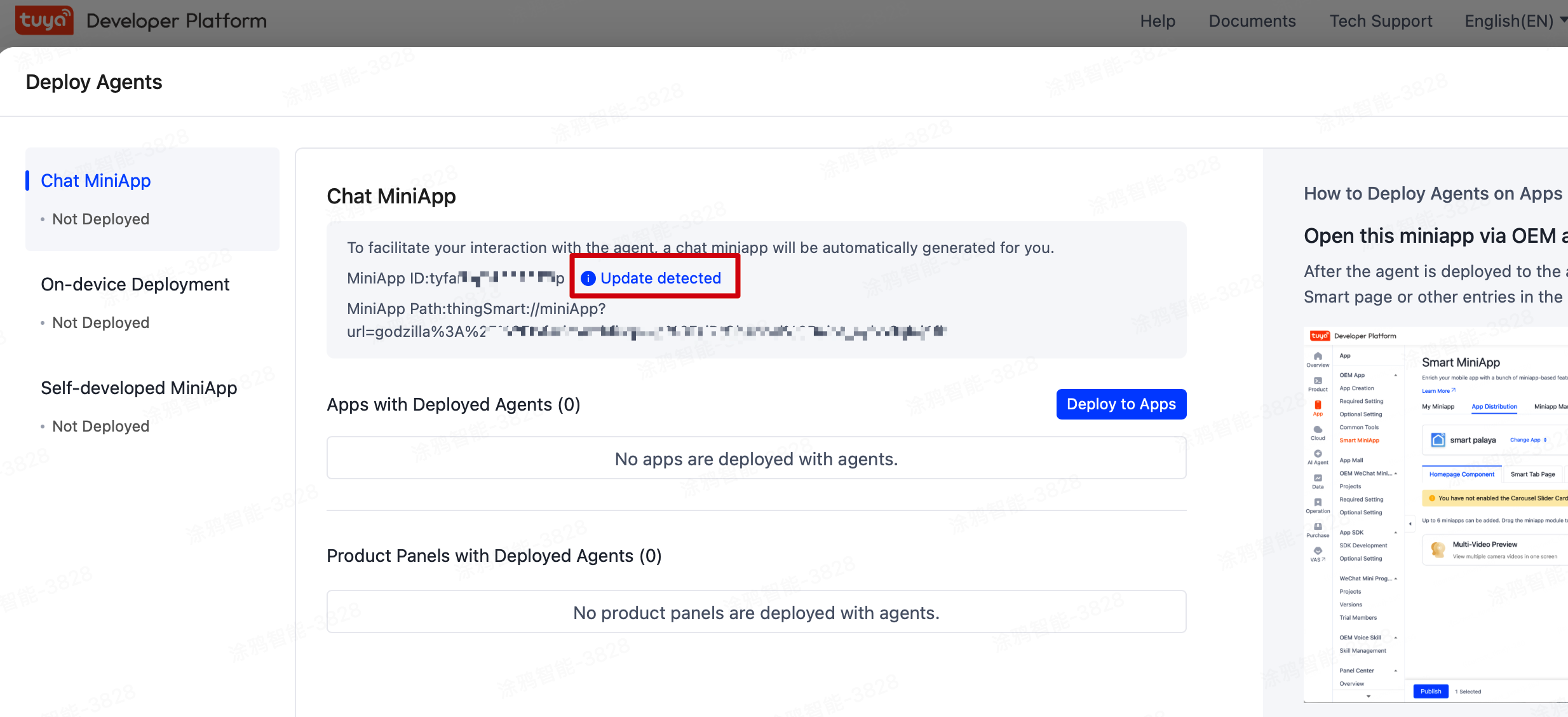

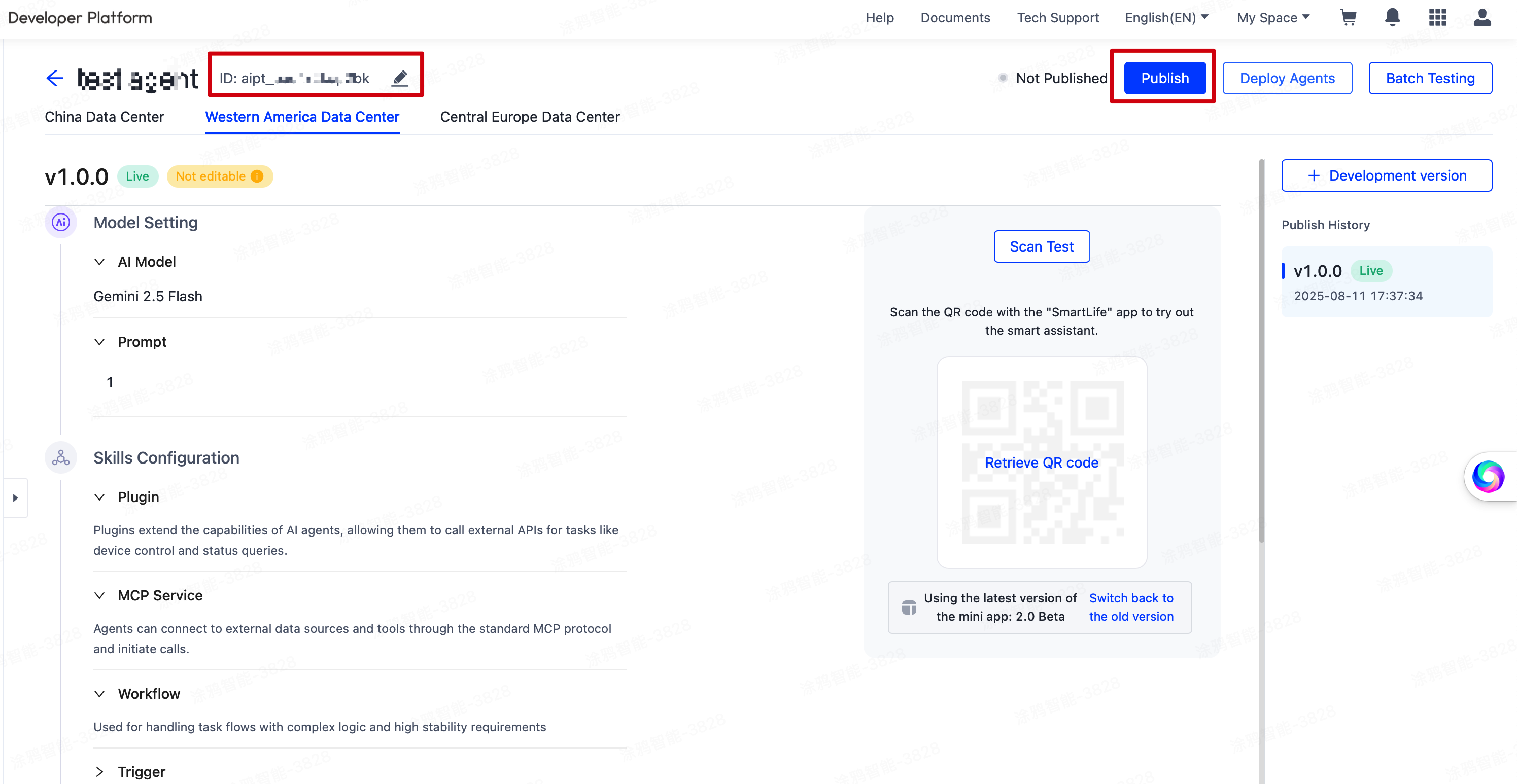

2. Publish and deploy the agent to your app. After configuration, click Publish at the top of the page.
   Record the agent ID for later use in SDK session creation.

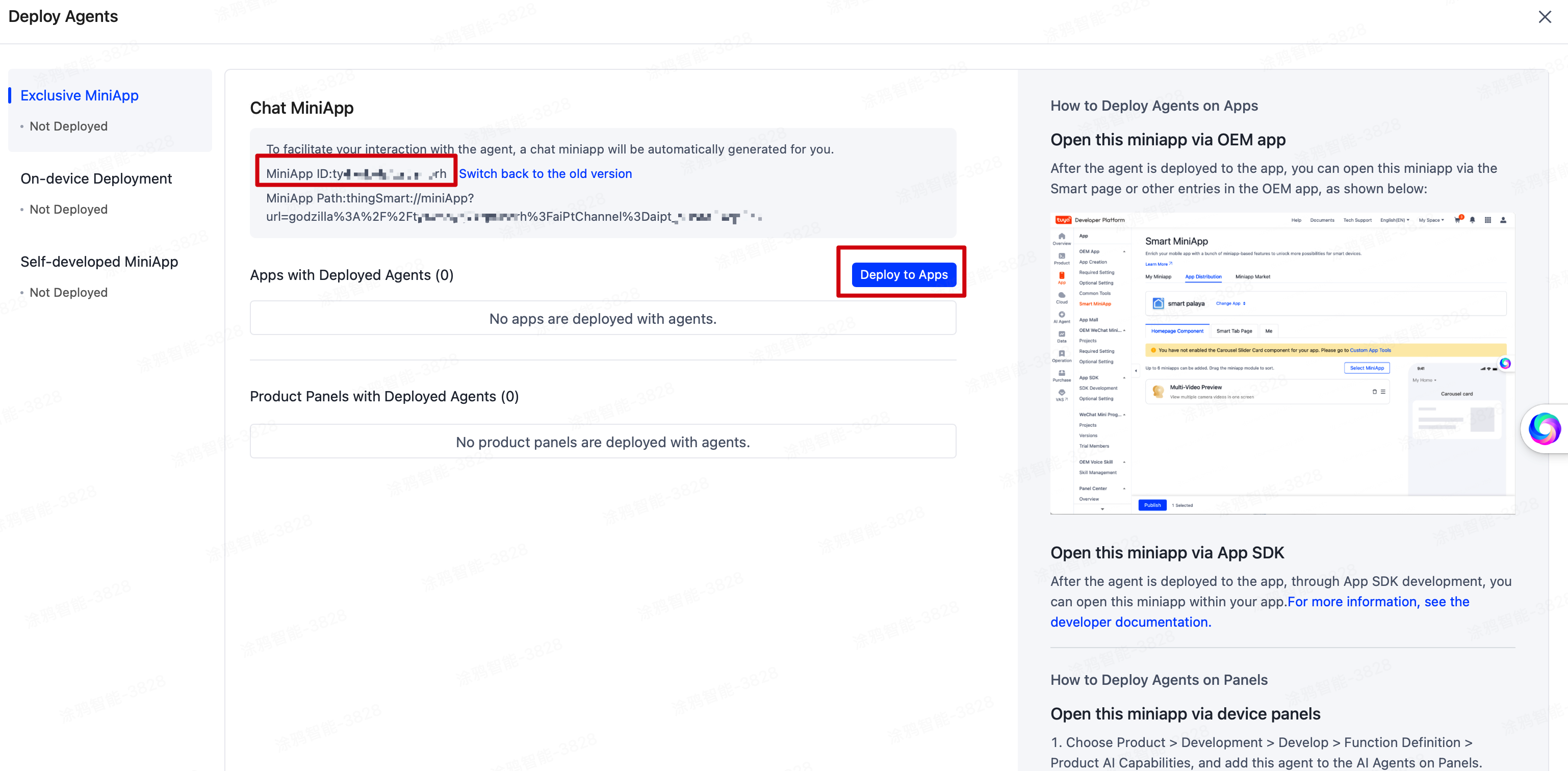

3. On the Deploy Agents page, click Deploy to Apps to assign the agent to your target app. Confirm and then click Confirm Info and Publish. Record the MiniApp ID for later use in SDK session creation.



Data flow

Connection management

The channel currently supports two connection types: app and proxy device.

• App channel: Authenticate as the logged-in user. One app has only one channel, supporting multi-device login and concurrent usage.
• Proxy device: Authenticate and connect as a device. It is usually designed for devices that cannot connect to the cloud independently, such as Bluetooth devices. It does not support concurrent multi-device connections to the same proxy device.

Session management

Sessions are established on top of channels. A single channel can host multiple sessions, which are required for data stream transmission.

When using different AI agents or configurations, you must request an agent token using the relevant information and create a session.

Data stream transmission

Key concepts:

• Event
• DataChannel
• ReuseDataChannel
• StreamFlag

Event

An event can be sent from the app to the server, or delivered from the server to the app.

When sending, it mainly includes the following events:

Event	Description
EventStart	Marks the start of an event. It must be sent before data stream transmission. An EventId is required, which must remain consistent until EventEnd or ChatBreak is sent.
EventPayloadEnd	Indicates completion of a single data transmission within an event. DataChannel data is required.
EventEnd	Marks the end of an event. This event is sent after all data streams are transmitted. After receiving this event, the server will deliver all data to the agent for processing.
ChatBreak	Interrupts an event. It can be triggered during data stream transmission or reception.

When receiving, it mainly includes the following events:

Event	Description
EventStart	Marks the start of an event, indicating the cloud is about to deliver data to the app. Includes an EventId corresponding to the one sent by the app.
EventPayloadEnd	Indicates completion of a single data transmission within an event.
EventEnd	Marks the end of an event. This event is sent after all data streams are transmitted.
ChatBreak	Interrupts an event. The cloud is interrupting the app, and the app should stop sending or receiving data for this EventId (requires configuration).
ServerVAD	Cloud-based voice activity detection (VAD). The cloud has detected the end of an audio segment from the app. Upon receiving this event, the app must stop sending audio data for this EventId. Even if the data is sent, the cloud will ignore it. Requires configuration.

DataChannel

During session creation, the AgentToken response includes bizConfig with two key properties: sendData and revData to indicate the data types.

Based on bizConfig.sendData and bizConfig.revData, the SDK automatically generates sendDataChannels and recvDataChannels.

Scenarios:

• Single-stream data of the same type: Methods like sendAudioData and sendVideoData require no explicit data channel.
• Multi-stream data of the same type (such as dual-lens cameras with two video streams): Channel order must match physical inputs. The dataChannel value must be passed in the data stream sending method. This scenario is not currently available.
• sendEventPayloadsEnd always requires dataChannel, regardless of stream count.

ReuseDataChannel

The session creation interface includes a reuseDataChannel parameter, which defaults to false (disabled).

It is designed for real-time streaming scenarios (such as live audio/video streams), where two or more sessions require different processing of the same real-time data. It optimizes data timeliness and reduces transmission overhead.

Scenarios:

Two sessions are required to process audio translation and audio summarization, respectively. Real-time audio data must be captured and shared between both sessions for parallel processing.

StreamFlag

Mark the start/end of specific data streams, with four types:

• OnlyOne(0): Single packet only. It is used for text or small-sized images.
• StreamStart(1): Start of data stream to send or receive. The first packet should include metadata, such as sample rate, bit depth, and format for audio data. Packet data can be empty.
• Streaming(2): Data transmission is in progress.
• StreamEnd(3): End of data stream. Packet data can be empty.

AI chat flow example

API description

Import header files

#import <ThingSmartStreamChannelKit/ThingSmartStreamChannelKit.h>

Get channel object

• App channel: Authenticate as the logged-in user. One app has only one channel, supporting multi-device login and concurrent usage.
• Proxy device: Authenticate and connect as a device. It is usually designed for devices that cannot connect to the cloud independently, such as Bluetooth devices. It does not support concurrent multi-device connections to the same proxy device.

// Use the device identity
self.client = [ThingSmartStreamClient clientForAgentDevice:@"device_id"];

// Use the app identity
self.client = [ThingSmartStreamClient clientForApp];

Listen for events

Add or remove a delegate

@interface ThingSmartStreamClient : NSObject
/// Adds an Stream client delegate.
/// - Parameter delegate: Delegate
- (void)addDelegate:(id<ThingSmartStreamClientDelegate>)delegate;

/// Removes an Stream client delegate.
/// - Parameter delegate: Delegate
- (void)removeDelegate:(id<ThingSmartStreamClientDelegate>)delegate;
@end

Example:

Before establishing a connection or receiving data, you must set up a delegate to receive messages.

- (void)addListner {
  // self.client = [ThingSmartStreamClient clientForApp];
  // self.client = [ThingSmartStreamClient clientForAgentDevice:@"xxx"];
  [self.client addDelegate:self];
}

Connection and session state change messages

@protocol ThingSmartStreamClientDelegate <NSObject>
@optional

/// Connection connect state changed
/// - Parameters:
///   - client: stream client object
///   - connectState: connect state
///   - error: error info. when connectState == ThingSmartStreamConnectStateClosedByServer
- (void)streamClient:(ThingSmartStreamClient *)client
        connectState:(ThingSmartStreamConnectState)connectState
               error:(nullable NSError *)error;

/// Session state changed.
/// - Parameters:
///   - sessionID: session id
///   - sessionState: session state
///   - error: error info. when connectState != ThingSmartStreamSessionStateCreateSuccess
- (void)streamClientSessionId:(NSString *)sessionID
          changedSessionState:(ThingSmartStreamSessionState)sessionState
                        error:(nullable NSError *)error;

@end

Receive events and data stream messages

@protocol ThingSmartStreamClientDelegate <NSObject>
@optional
- (void)streamClientDidReceiveEvent:(ThingStreamEventPacketModel *)packet;
- (void)streamClientDidReceiveVideo:(ThingStreamVideoPacketModel *)packet;
- (void)streamClientDidReceiveAudio:(ThingStreamAudioPacketModel *)packet;
- (void)streamClientDidReceiveImage:(ThingStreamImagePacketModel *)packet;
- (void)streamClientDidReceiveFile:(ThingStreamFilePacketModel *)packet;
- (void)streamClientDidReceiveText:(ThingStreamTextPacketModel *)packet;
@end

Connection management

How it works:

Select the channel connection type

@interface ThingSmartStreamClient : NSObject

@property (nonatomic, assign, readonly) ThingSmartStreamClientType clientType;

/// The stream client for AgentDevice.
/// - Parameter devId: Device ID.
+ (nullable instancetype)clientForAgentDevice:(NSString *)devId;

/// The stream client for App
+ (instancetype)clientForApp;

@end

Initiate a connection request

@interface ThingSmartStreamClient : NSObject

/// Connect to stream server.
- (void)connect;

/// - Parameter success: callback connection ID when connection established.
- (void)connect:(ThingSuccessString)success;

@end

Disconnect and destroy the channel

For device proxy mode (clientType == ThingSmartStreamClientTypeDevice), it is recommended to destroy the channel after exiting the device control page.

@interface ThingSmartStreamClient : NSObject
/// Disconnect from stream server.
- (void)disconnect;

/// Destory the stream client. ( Only for AgentDevice client. )
- (void)destory;
@end

Determine the connection status

typedef NS_ENUM(NSUInteger, ThingSmartStreamConnectState) {
    ThingSmartStreamConnectStateIdle           = 0,
    ThingSmartStreamConnectStateConnecting     = 1,
    ThingSmartStreamConnectStateAuthing        = 2,
    ThingSmartStreamConnectStateConnected      = 3,
    ThingSmartStreamConnectStateClosedByServer = 4,
    ThingSmartStreamConnectStateClosed         = 5
};

@interface ThingSmartStreamClient : NSObject
@property (atomic, assign, readonly) ThingSmartStreamConnectState state;

/// Check the connection is connected;
- (BOOL)isConnected;
@end

Session management

Create session

There are two session creation methods.

• Method 1: Normal method. First, get the agent token info and use it to create a session.

  Since getting the agent token info involves some latency, this method allows pre-fetching. Typically, it is valid for 24 hours.

     @interface ThingSmartStreamClient : NSObject

     #pragma mark - Session Establish & Close
     /// Query AI agent token.
     /// - Parameters:
     ///   - params: Query params obj.
     ///   - success: Success handler.
     ///   - failure: Fail handler.
     - (void)queryAgentToken:(ThingStreamQueryAgentTokenParams *)params
                     success:(void(^)(ThingStreamAgentTokenInfo *tokenResponse))success
                     failure:(ThingFailureError)failure;

     /// Creat a new session.
     /// - Parameters:
     ///   - tokenInfo: Agent token info. (use -queryAgentToken:success:failure: to get token info)
     ///   - bizTag: Biz tag.
     ///   - reuseDataChannel: Reuse data channel. (Default is NO)
     ///   - sessionId: Session ID. If sessionId is nil, a new session will be created.
     ///   - cacheBasePath: Cache receive data path.
     ///   - userDatas: User data list.
     ///   - completion: Completion.
     - (void)createSessionWithToken:(ThingStreamAgentTokenInfo *)token
                             bizTag:(uint64_t)bizTag
                 reuseDataChannel:(BOOL)reuseDataChannel
                         sessionId:(nullable NSString *)sessionId
                     cacheBasePath:(nullable NSString *)cacheBasePath
                         userDatas:(nullable NSArray<ThingStreamAttribute *> *)userDatas
                         completion:(nullable ThingSmartStreamSessionCompletion)completion;
     @end


• Method 2: Convenient method. Get the agent token info and automatically create a session.

     @interface ThingSmartStreamClient : NSObject

     /// Query AI agent token and create a new session.
     /// - Parameters:
     ///   - params: Query params obj.
     ///   - reuseDataChannel: reuse data channel. (Default is NO)
     ///   - cacheBasePath: Cache receive data path. If cacheBasePath is nil, it won't cache data.
     ///   - userDatas: User data list.
     ///   - completion: Completion.
     - (void)createSessionWithQueryParams:(ThingStreamQueryAgentTokenParams *)params
                         reuseDataChannel:(BOOL)reuseDataChannel
                         cacheBasePath:(nullable NSString *)cacheBasePath
                             userDatas:(nullable NSArray<ThingStreamAttribute *> *)userDatas
                             completion:(nullable ThingSmartStreamSessionCompletion)completion;

     @end


Proactively close sessions

@interface ThingSmartStreamClient : NSObject
/// Close a session
/// - Parameters:
///   - sessionID: session id.
///   - code: close reason.
///   - completion: Completion.
- (void)closeSession:(NSString *)sessionID
            withCode:(ThingStreamAttributeConnectionSessionCode)code
          completion:(nullable ThingSmartStreamCompletion)completion;
@end

Session creation example

To create a session, you must pass the APIs and relevant parameters. Here is an example of invoking the APIs, as well as a parameter description.

• aiSolutionCode: Corresponds to the Agent ID in the Agent preparation process.
• miniProgramId: Corresponds to the Mini Program ID in the Agent preparation process.

- (void)createSession {
    // First, select an identity and ensure that the channel is connected
    // self.clent  = [ThingSmartStreamClient clientForAgentDevice:@"your_device_id"];
    // self.client = [ThingSmartStreamClient clientForApp];

    ThingStreamQueryAgentTokenParams *params = [ThingStreamQueryAgentTokenParams new];
    params.solutionCode = @"your_agent_id"; // agent id
    params.ownerId = @"your_home_id"; // home id
    params.api = @"m.life.ai.token.get";
    params.apiVerion = @"1.0";
    params.extParams = @{
        @"miniProgramId": @"your_mini_app_id",
        @"onlyAsr": @NO, // only ASR or not
        @"needTts": @NO // need TTS or not
    };

    WEAKSELF_ThingSDK
    // Normal: Request the agent token first and then create the session.
    [self.client queryAgentToken:params success:^(ThingStreamAgentTokenInfo * _Nonnull tokenResponse) {
        [weakSelf_ThingSDK.client createSessionWithToken:tokenResponse bizTag:0 reuseDataChannel:NO sessionId:nil cacheBasePath:nil userDatas:nil completion:^(ThingStreamSessionInfo * _Nullable result, NSError * _Nullable error) {
            if (result) {
                NSLog(@"Creat success: %@", result.sessionID);
            } else {
                NSLog(@"Create fail: %@", error);
            }
        }];
    } failure:^(NSError *error) {
        NSLog(@"Query token fail: %@", error);
    }];

//    // Convenient: Request the agent token to create a session in one function
//    [self.client createSessionWithQueryParams:params reuseDataChannel:NO cacheBasePath:nil userDatas:nil completion:^(ThingStreamSessionInfo * _Nullable result, NSError * _Nullable error) {
//        if (result) {
//            NSLog(@"Creat success: %@", result.sessionID);
//        } else {
//            NSLog(@"Create fail: %@", error);
//        }
//    }];
}

Send events

The following events can be sent:

• EventStart: Marks the start of a dialogue round. You can either specify an EventId or let the SDK auto-generate one.
• EventPayloadEnd: Notifies the cloud that one data stream transmission in this dialogue is completed.
• EventEnd: Ends the dialogue round. After this event is sent, the AI will process all transmitted data and generate a response.
• ChatBreak: Interrupts a dialogue. This event can be triggered during sending or receiving.

@interface ThingSmartStreamClient : NSObject

#pragma mark - Send Event Packet
/// Send event start.
/// - Parameters:
///   - sessionId: Session id.
///   - attributes: Attributes of Event Packet.
///     - Optional attributes:
///         - UserData
///   - successHandler: Success handler.
///   - failure: Failure handler.
- (void)sendEventStart:(NSString *)sessionId
             userDatas:(nullable NSArray<ThingStreamAttribute *> *)userDatas
               success:(nullable void(^)(NSString *eventId))successHandler
               failure:(nullable ThingFailureError)failure;

/// Send event start.
/// - Parameters:
///   - sessionId: Session id.
///   - eventId: Event id.
///   - attributes: Attributes of Event Packet.
///     - Optional attributes:
///         - UserData
///   - successHandler: Success handler.
///   - failure: Failure handler.
- (void)sendEventStart:(NSString *)sessionId
               eventId:(nullable NSString *)eventId
             userDatas:(nullable NSArray<ThingStreamAttribute *> *)userDatas
               success:(nullable void(^)(NSString *eventId))successHandler
               failure:(nullable ThingFailureError)failure;

/// Send event payloads end.
/// - Parameters:
///   - eventId: Event ID. Same as the value passed in to -startEventStart:sessionId:attributes:completion:
///   - sessionId: Session ID.
///   - dataChannel: The dataChannel used inVideo/Audio/Image/File/Text Packet that transmission payload ends.
///   - attributes: Attributes of Event Packet.
///     - Optional attributes:
///         - UserData
///   - completion: Completion.
- (void)sendEventPayloadsEnd:(NSString *)eventId
                   sessionId:(NSString *)sessionId
                 dataChannel:(NSString *)dataChannel
                   userDatas:(nullable NSArray<ThingStreamAttribute *> *)userDatas
                  completion:(nullable ThingSmartStreamCompletion)completion;

/// Send event end.
/// - Parameters:
///   - eventId: Event ID. Same as the value passed in to -startEventStart:sessionId:attributes:completion:
///   - sessionId: Session ID.
///   - attributes: Attributes of Event Packet.
///     - Optional attributes:
///         - UserData
///         - EventTimestamp
///   - completion: Completion.
- (void)sendEventEnd:(NSString *)eventId
           sessionId:(NSString *)sessionId
           userDatas:(nullable NSArray<ThingStreamAttribute *> *)userDatas
          completion:(nullable ThingSmartStreamCompletion)completion ;

/// Send event chat break.
/// - Parameters:
///   - eventId: Event ID. Same as the value passed in to -startEventStart:sessionId:attributes:completion:
///   - sessionId: Session ID.
///   - completion: Completion.
- (void)sendEventChatBreak:(NSString *)eventId
                 sessionId:(NSString *)sessionId
                completion:(nullable ThingSmartStreamCompletion)completion;

@end

Send data stream

@interface ThingSmartStreamClient : NSObject
#pragma mark - Packet
#pragma mark Send Video/Audio/Image/Text/File Packet
/// Send video packet.
/// - Parameters:
///   - videoModel: Video packet model.
///   - completion: completion.
- (void)sendVideoData:(ThingStreamVideoPacketModel *)packet completion:(nullable ThingSmartStreamCompletion)completion;

/// Send audio packet.
/// - Parameters:
///   - audioModel: Audio packet model.
///   - completion: completion.
- (void)sendAudioData:(ThingStreamAudioPacketModel *)packet completion:(nullable ThingSmartStreamCompletion)completion;

/// Send text packet.
/// - Parameters:
///   - textModel: text packet model.
///   - completion: completion.
- (void)sendTextData:(ThingStreamTextPacketModel *)packet completion:(nullable ThingSmartStreamCompletion)completion;

/// Send image packet.
/// - Parameters:
///   - imageModel: image packet model.
///   - completion: completion.
- (void)sendImageData:(ThingStreamImagePacketModel *)packet
             progress:(nullable void(^)(int progress))progress
           completion:(nullable ThingSmartStreamCompletion)completion;

/// Send file packet. (Currently, the server model is not supported.)
/// - Parameters:
///   - fileModel: file packet model.
///   - completion: completion.
- (void)sendFileData:(ThingStreamFilePacketModel *)packet
            progress:(nullable void(^)(int progress))progress
          completion:(nullable ThingSmartStreamCompletion)completion;
@end

Real-time audio recording and playback

For real-time audio recording and playback of received audio files, two utility classes are provided, ThingStreamRecorder.h and ThingStreamPlayer.h. Import them by adding #import <ThingSmartStreamBizKit/ThingSmartStreamBizKit.h>.

Demo

For more information, see the demo tuya-home-ios-sdk-sample-swift.

Procedure:

1. Read this document and complete all prerequisites.
2. Open the StreamChatController.swift file.
3. In the func createSession():
   • Set solutionCode to the Agent ID recorded in prerequisites.
   • Set miniProgramId to the Mini Program ID recorded in prerequisites.
4. In the func createSession(), choose a session creation approach (Normal or Convenient) and uncomment the relevant code.
5. Run the demo, log in, and navigate to the AI Stream SDK page to test.

Error codes

code	msg	Description	Remarks
39001	/	A common error has occurred.	Applies to miscellaneous error cases.
39002	deviceId is invalid clientType is invalid api is invalid apiVersion is invalid ownerId is invalid solutionCode is invalid agentToken is invalid bizConfig is invalid sendData/revData is invalid text is blank	Invalid parameter.	Invalid agent token request parameters. solutionCode or ownerId is empty. Invalid request parameters when creating a session. agentToken or bizConfig is empty.
39003	Cloud error messages	HTTP request failed.	Failed to get the agent token. The request for an agent token from the cloud interface failed.
39004	not connect	Connection is not established.	This error occurs when creating/closing a session, sending data, or sending an event.
39005	session is invalid	The SessionId does not exist.	This error occurs when closing a session, sending data, or sending an event.
39006	eventId is invalid	The EventId is empty.	This error occurs when sending an event.
39007	dataChannel is invalid	Invalid dataChannel.	This error occurs when sending data and PayloadEnd.
39008	packet is invalid	Invalid data packet.	This error occurs when sending data. For example, the first or only one packet of data requires fixed parameters, and the text content is empty.
39009	file info get fail file not exist failed to read file data	An exception occurred while reading file data.	This error occurs when sending data. For example, the image or file does not exist, or an exception occurred during the reading process. TTT: The file required to play audio does not exist (startPlayAudio).
39010	send data fail send audio end fail send image fail send text fail	Failed to send the data.	Failed to send data via socket, containing socket error details.
39012	socket connection broken close by remote (200/400/401…)	The connection was closed by the remote end.	Detailed errors correspond to cloud error codes: 200, 400, 401, 404, 408, 500, 504, 601, 602, 603, 604, and 605. For TTT, 39012 does not exist. TTT devices report errors directly through onConnectStateChanged with codes such as 200 and 400.

Receive text data

This section details the JSON formats and their processing logic in the AI chat component.

Automatic speech recognition (ASR)

After a user sends a voice input, the system returns the ASR result in the following format:

{
    "bizId": "asr-1754380053514",
    "bizType": "ASR",
    "eof": 0,
    "data": {
        "text": "what's the weather today?"
    }
}

Field	Description	Field type	Example
bizId	The business ID used to identify an interaction.	string	asr-1754380053514
bizType	The business type. ASR indicates speech recognition results.	string	ASR
eof	The end flag. Valid values: 0 means not ended, and 1 means ended.	int	0 or 1
data	The returned ASR result object.	object
text	The recognized text content.	string	What’s the weather today?

Treatment:

• When the value of eof is 0, save the temporary result and display the intermediate recognition result.
• When the value of eof is 1, the final recognition result is displayed and added to the chat list.

Responses from the NLG large model

After the AI model responds to a user query, the data returned is in the following format:

{
    "bizId": "nlg-1754380053514",
    "bizType": "NLG",
    "eof": 0,
    "data": {
        "appendMode": "append",
        "reasoningContent": "Reasoning content",
        "content": "Text content returned by the model",
        "images": [
            {
                "url": "https://www.tuya.com/image1.jpg"
            }
        ]
    }
}

Field	Description	Field type	Example
bizId	The business ID, used to associate messages from the same interaction.	string	nlg-1754380053514
bizType	The business type. NLG stands for Natural Language Generation.	string	NLG
eof	The end flag. Valid values: 0 means streaming is in progress, and 1 means it is finished.	int	0 or 1
data	The data object returned.	object
appendMode	The text append mode.	string	Append or others
reasoningContent	The LLM reasoning process (chain-of-thought).	string	The step-by-step thinking content
content	The actual response content generated by the LLM.	string	Text response from the LLM
images	The image data array returned by the LLM.	array
url	The URL of the specified image.	string	https://www.tuya.com/im***1.jpg

Treatment:

• When the value of appendMode is append, the new content is appended to the existing message. Otherwise, a new message is created.
• Extract url from the images array, and render each URL as a rich-media image message.
• When the value of eof is 1, it marks the end of NLG streaming.

Skill response format

AI can invoke various skills. For example, display emojis.

This section only illustrates emoji-type skills. Other skills might vary depending on the data definition of the agent.

Emoji skill (llm_emo)

{
    "bizId": "skill-1754380053514",
    "bizType": "SKILL",
    "eof": 0,
    "data": {
        "code": "llm_emo",
        "skillContent": {
            "text": "😀",
            "startTime": 1000,
            "endTime": 2000,
            "sequence": 1
        }
    }
}

Field	Description	Field type	Example
bizId	The business ID.	string	skill-1754380053514
bizType	The business type. SKILL means to invoke skills.	string	SKILL
eof	The end flag.	int	0 or 1
data	The returned data.	object	-
code	The code of a skill.	string	llm_emo
skillContent	The content of a skill.	object	-
text	The emoji.	string	😀
startTime	The start time to display an emoji, in milliseconds.	long	1000
endTime	The end time to stop displaying an emoji, in milliseconds.	long	2000
sequence	The sequence number, starting with 1.	int	1

Treatment:

• When the value of the sequence is 1, the existing emoji step list is cleared.
• A new emoji step is added to the list.
• When the value of eof is 1, the emojis begin to be displayed in chronological order.

Supported emojis

The following emoji types are supported:

Emotion type	Unicode	Display effect
SAD	\uD83D\uDE22	😢
ANGRY	\uD83D\uDE20	😠
NEUTRAL	\uD83D\uDE10	😐
FEARFUL	\uD83D\uDE28	😨
SURPRISE	\uD83D\uDE32	😲
CONFUSED	\uD83D\uDE15	😕
DISAPPOINTED	\uD83D\uDE1E	😞
ANNOYED	\uD83D\uDE21	😡
THINKING	\uD83E\uDD14	🤔
HAPPY	\uD83D\uDE00	😀
