This topic describes the features provided by the Bluetooth Beacon 2.0 Mesh Lighting Product Development Kit (AK801).
Release
Version |
Description |
0.0.6 (applies to TuyaOS v3.6.3) |
Implement the basic features for a lighting product. |
Description
- Device pairing and reset.
- The device turns on in cool white light at full brightness by default.
- Repeating the on/off cycle five times can reset the device. If no operation is performed within three minutes, the device restores to the previous network state. If the device is reset with a beacon 2.0 remote control, network recovery is not possible.
- The pairing state is indicated by the highest color temperature and full brightness, blinking at a frequency of 500 ms for 3 minutes.
- On/off gradient in white mode and color mode.
- Switch between white mode and color mode.
- Light scenes support gradient mode and jumping mode. The breathing mode is created by combining the gradient mode and the scene unit of light-off effects.
- Countdown timer. Powering on/off or turning on/off the light will cause the countdown to fail.
- The music sync feature is implemented with the scene DP data.
- Schedule lights locally.
- The beacon 2.0 local scheduling defines that the system checks for tasks to execute every 10 seconds, with an error of less than one minute.
- The local schedule data will be cleared when the power is disconnected.
- Local scheduling only works for the control of light switches.
- Power-on behavior.
- Power-off memory.
- Support pairing with beacon 2.0 physical remote controls. The pairing window period is 30 seconds after power on.
- Support PWM driver and 5758D driver. You can switch between them using the macros
DRIVER_PWM
and DRIVER_5758D
. When 5758D drives white and colored light (RGBCW), set the drive current to 6 mA and 27 mA for RGB and cool and warm white (CW) respectively.
- Scene sync in a device group.
- Product testing with a host.
Leaving the pid
empty is suitable for OEM production. If you set the pid
to a specific value, the application cannot be used for products with different pid
values.
static beacon_dev_s beacon_dev = {
.mac = {0xdc, 0x23, 0x4f, 0x02, 0x95, 0x6e},
.authkey = "xxxxxxxxxxxxxxxx",
.pid = " ",
.version = 0x11,
.flag = 0x00,
.kind = 0x1015,
.state = STATE_NOT_PAIRED
};
The source code is compact due to limited RAM space. However, after adding the 5758D driver, there is no remaining code for implementing the feature of power-on behavior. You need to trade off specific features for your preferred one.
- To use a field-programmable gate array (FPGA) for debugging, set
BOARD_FPGA
to 1.
- To print logs for debugging, set
APPLOG
to 1. uart_putc
is used for transmission. With APPLOG
enabled, other features such as local music will be unavailable due to limited resources.
Architecture

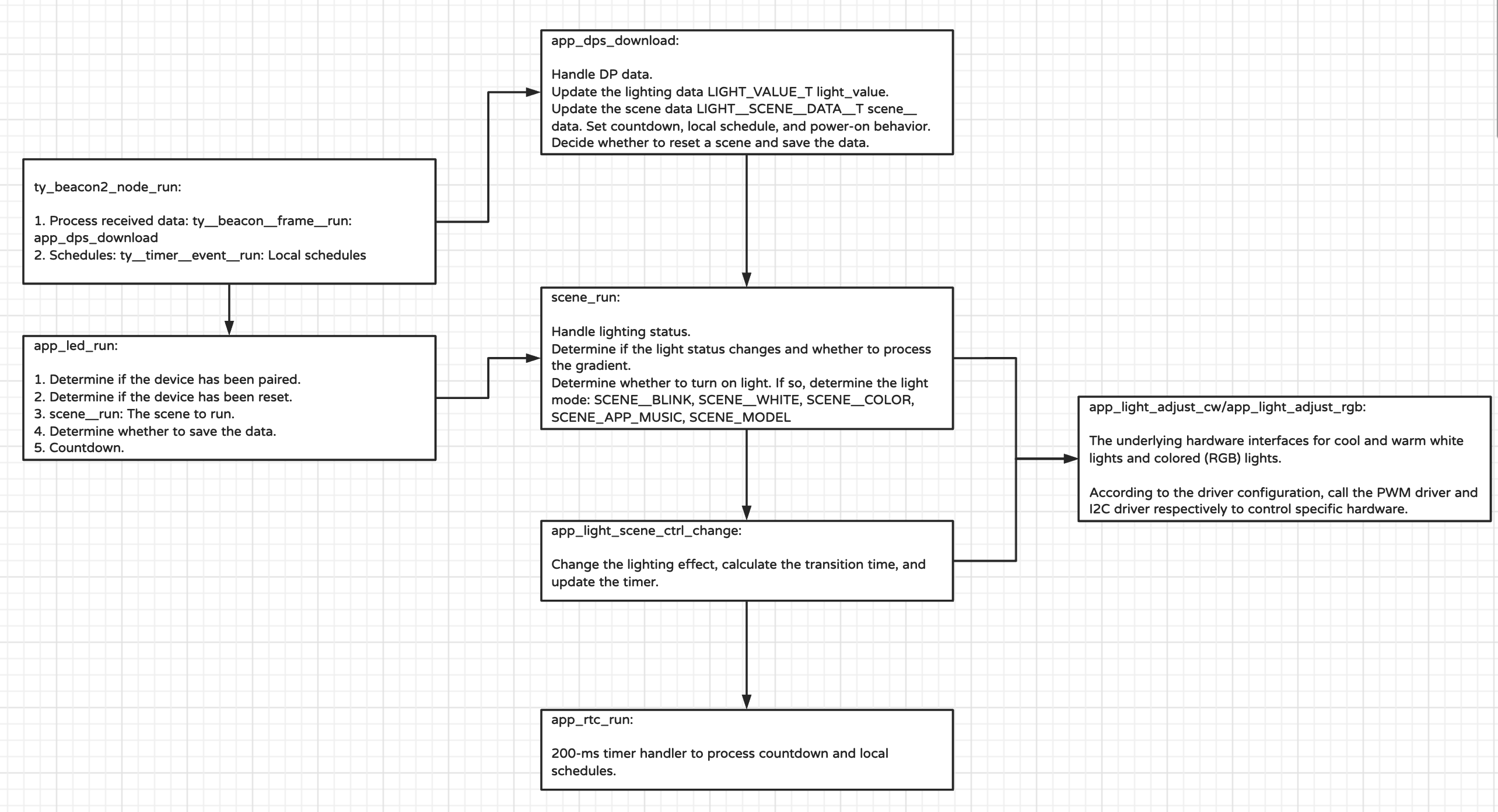

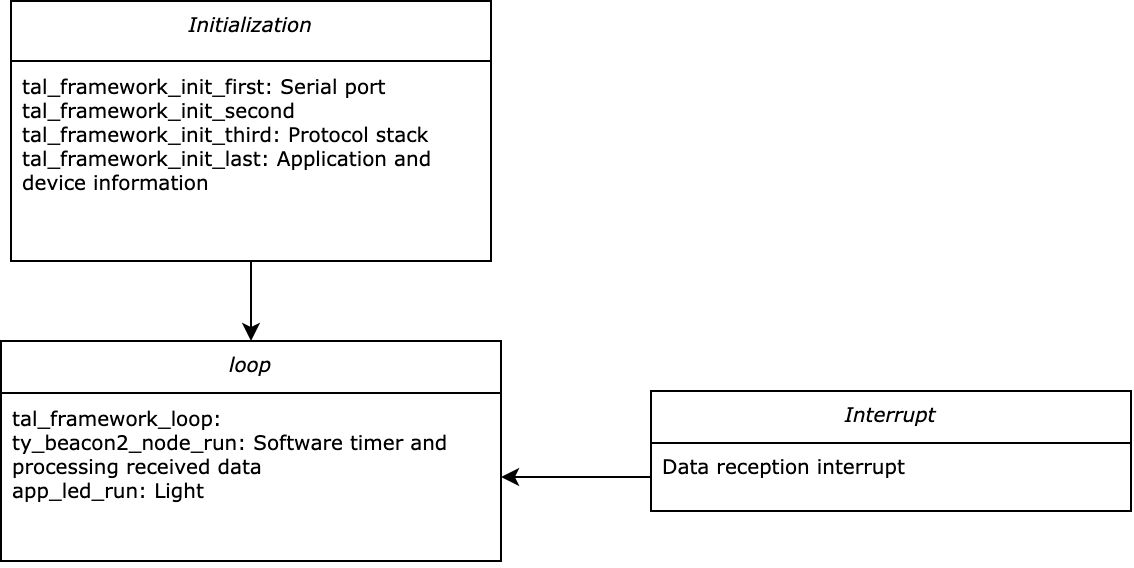

Application logic
Things to note
- AK801 has 2 KB RAM. Stacks, heaps, and global variables are stored in RAM.
- The stack is set to 380 bytes by default.
- You can check the
.htm
file for stack usage.
- You can check the
.map
file for RAM usage.
If you have any problems with TuyaOS development, you can post your questions in the Tuya Developer Forum.
