Tuya Development Board 3.0 Schematic
Last Updated on : 2022-10-26 07:01:49download
5V to 3.3V
Figure 1 5V to 3.3V
USB to Serial port
Figure2 USB to Serial port
Peripheral pin
Figure 3 Peripheral pin

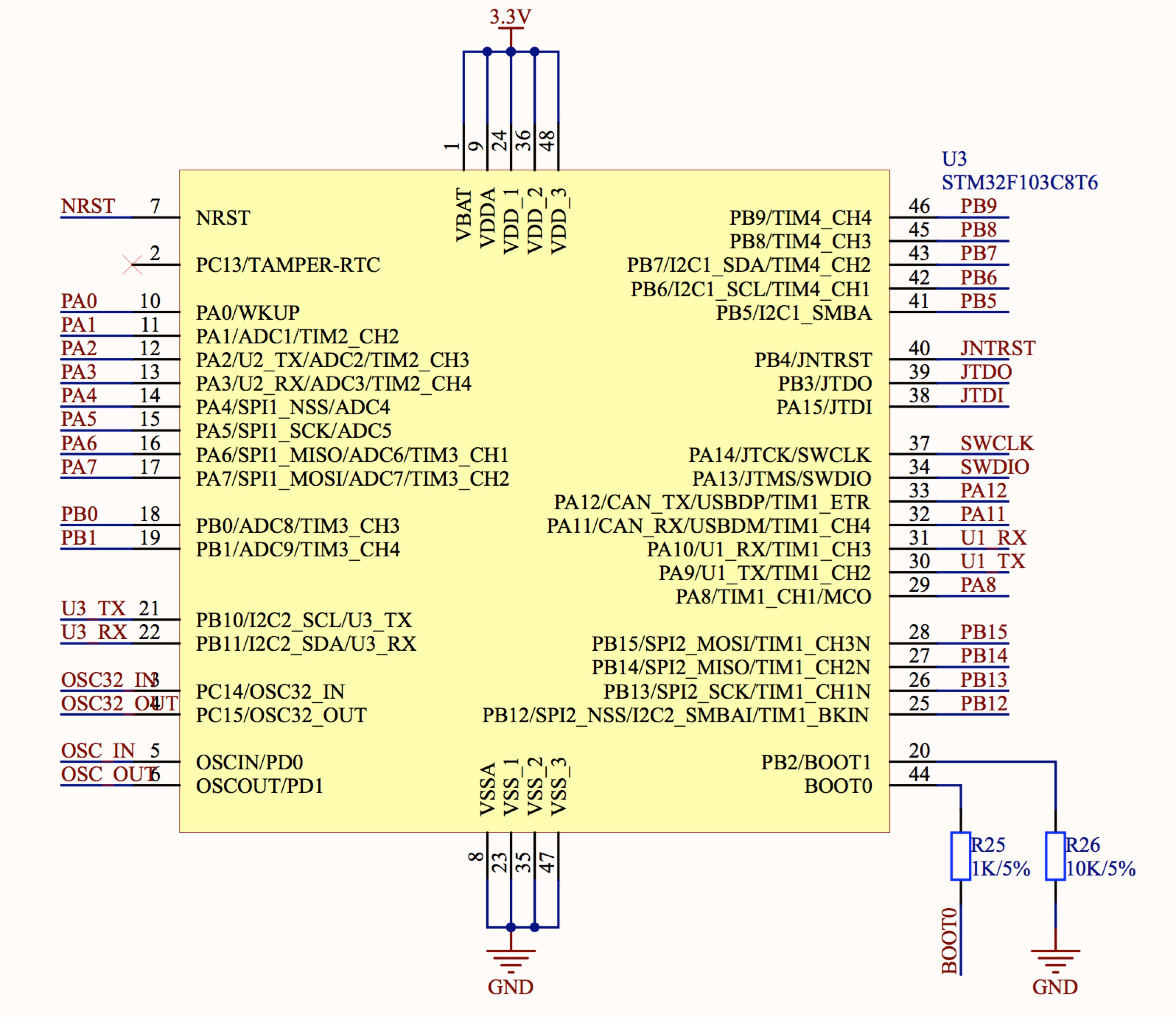

Part of MCU

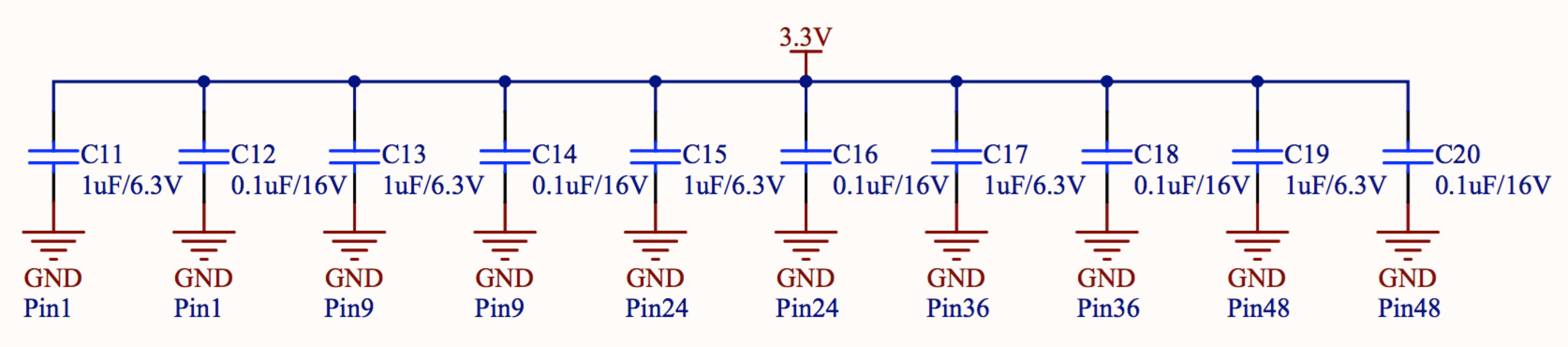

Figure 4 Part of MCU
Wi-Fi Module
Figure 5 Wi-Fi Module
