WRG1 Module

Last Updated on : 2020-10-13 08:45:34download

WRG1 is a low power embedded Wi-Fi module developed by Tuya Smart.

Scope of application

This topic describes relevant information about WRG1 module during MCU connection development.

WRG1 is a low power embedded Wi-Fi module developed by Tuya Smart. The module consists of a highly integrated radio-frequency identification (RFID) chip RTL8711AM and an external flash chip, with a built-in Wi-Fi network protocol stack and various library functions. WRG1 also has low-power ARM-Cortex M3 MCU, WLAN MAC, and 1T1R WLAN. The highest basic frequency is 166 MHz. The module has 2MB built-in synchronous dynamic random access memory (SDRAM), 4 MB flash, and numerous peripheral resources. As a real time operating system (RTOS) platform, WRG1 integrates all function libraries of Wi-Fi MAC and TCP/IP protocols. You can develop your own embedded Wi-Fi products.

For more information, see WRG1 Module Datasheet.

Typical application diagram

  • Reference diagram of coordinated processing mode of the module and 3.3 V MCU:

    WRG1 Module

  • Reference diagram of coordinated processing mode of the module and 5 V MCU:

    WRG1 Module

Design specification

  • Module power supply:

    • When the module is in the working mode, the maximum transient current reaches 343 mA. It is recommended that the supply current of the 3.3 V module should exceed 400 mA.
    • In the PCB layout, capacitors C1 and C2 at the power input pin shall be arranged near the power supply pin. The capacitance shall exceed 10 uF.
  • Module pin:

    • There are no special pins. For more information, see WRG1 Module Datasheet.
  • Radio frequency (RF) of the module:

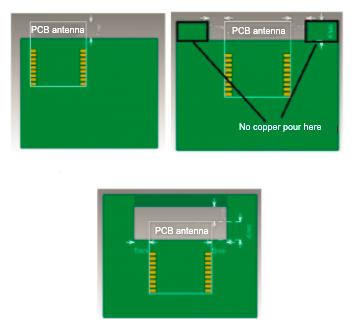

    • When a PCB onboard antenna is used in the Wi-Fi module, it is recommended that the distance between the module antenna and other metal parts should be at least 15 mm, in order to optimize the Wi-Fi performance. Wiring and copper pour are not allowed in the antenna area of the PCB, in order not to affect the antenna performance.

      WRG1 Module

      WRG1 Module

    • The parameters of U.FL RF connector are shown in the figure below:

      WRG1 Module
