Data Point Reference

This topic describes the features, formats, and usages of data points (DPs) that apply to smart video locks.

Background

Terms

The following table lists the important terminologies that you may find helpful in understanding this topic. For more information, see Glossary.

Term	Explanation
Data point (DP)	A DP is an abstract representation of a feature you want to apply to a physical device, which can be defined by various data types.
Product ID (PID)	A PID is an abstract representation of a collection of physical devices that have the same configurations and properties. Each product created on the Tuya Developer Platform is assigned a unique PID that is associated with the product information, including DPs, app control panel, and purchase information.
Firmware key	The unique identity of firmware assigned by the Tuya Developer Platform.
Member	Also known as user.
Member ID	The ID of a member or a user, which is a 1-byte unsigned integer assigned and managed by the cloud. The valid values range from 0x01 to 0x64. The rest are reserved.
Hardware ID	The ID of the hardware specific to an unlocking method, which is a 1-byte unsigned integer assigned and managed by the local processor. The valid values range from 0x00 to 0xFE. 0xFF is reserved. For example, for fingerprint unlocking and password unlocking, the hardware ID is 0x01 and 0x02 respectively.
Validity period	A specific unlocking method (such as fingerprint, password, and door card) is valid during the specified time period.
Cloud-to-device messaging	Data is sent from a mobile phone to a device.
Device-to-cloud messaging	Data is sent from a device to a mobile phone.

DP format

The size of dp_data_len is two bytes for smart video locks. The following table details the DP format.

Field	Bytes	Description
dp_id	1	The ID of a DP.
dp_type	1	The data type of a DP.
dp_data_len	2	The data length of a DP.
dp_data_value	dp_data_len	The payload of a DP.

Manage unlocking methods

Add unlocking methods

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Cloud-to-device	1	Raw	len	Type (1 byte)	Stage (1 byte)	Admin flag (1 byte)	Member ID (1 byte)	Hardware ID (1 byte)	Validity period (17 bytes)	Number of times (1 byte)	Password length (1 byte)	Password content (n bytes)	Message UUID (2 bytes)
				0x01: Password 0x02: Door card 0x03: Fingerprint 0x04: Face 0x05: Palm print 0x06: Finger vein	0x00: Start enrollment. 0xFE: Cancel enrollment ( initiated by app).	0x00: Ordinary member 0x01: Admin	0x01 to 0x64	0xFF: Default value	See Appendix: Validity period.	0x00: Permanent 0x01: One-time … 0xFE: 254 times 0xFF: Expired	The bytes of a password (used for unlocking with password only)	The password is sent in the numerical format. The valid values for each byte range from 0x00 to 0x09. For example, if a password is 123456, the data to be sent is [0x01,0x02,0x03,0x04,0x05,0x06] When the password length is 0, the field of password content is not passed in.	Description
Device-to-cloud	1	Raw	len	Type (1 byte)	Stage (1 byte)	Admin flag (1 byte)	Member ID (1 byte)	Hardware ID (1 byte)	Number of times (1 byte)		Return value (1 byte)		Message UUID (2 bytes)
				0x01: Password 0x02: Door card 0x03: Fingerprint 0x04: Face 0x05: Palm print 0x06: Finger vein	0x00: Start enrollment.	0x00: Ordinary member 0x01: Admin	0x01 to 0x64	0xFF: Default value	The number of times to finish enrollment For example, six to eight times for fingerprint enrollment. One time for door card or face enrollment.		0x00: Default value		Same as above.
					0xFC: Enrollment in progress	0x00: Ordinary member 0x01: Admin	0x01 to 0x64	0xFF: Default value	The sequence number for enrollment times, starting from 1. For example, fingerprint enrollment might be eight times. This field is populated with the current times.		Reasons for failed enrollment: 0x00: Success. 0x01: Fingerprint-scanning failed due to incomplete fingerprint or a wet finger.
					0xFD: Enrollment failed.	0x00: Ordinary member 0x01: Admin	0x01 to 0x64	0xFF: Default value	Current enrollment stage: 0x00: Start enrollment. 0xFC: Enrollment in progress. 0xFF: Finish enrollment.		Reasons for failed enrollment
					0xFE: Cancel enrollment ( initiated by app).	0x00: Ordinary member 0x01: Admin	0x01 to 0x64	0xFF: Default value	0x00: Default value		0x00: Default value
					0xFF: Enrollment is finished.	0x00: Ordinary member 0x01: Admin	0x01 to 0x64	Hardware ID assigned to the device. Valid values range from 0x00 to 0xFE.	0x00: Default value		0x00: Default value

Interaction example

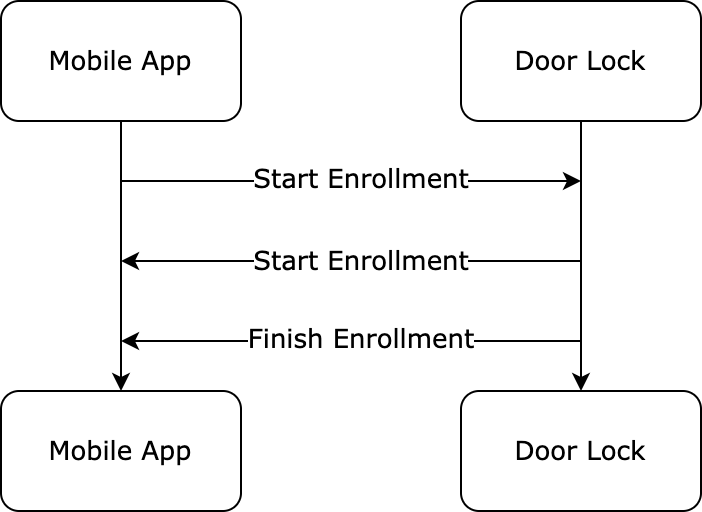

• The following figure shows how the mobile app interacts with the lock during the enrollment of the password, door card, and face.

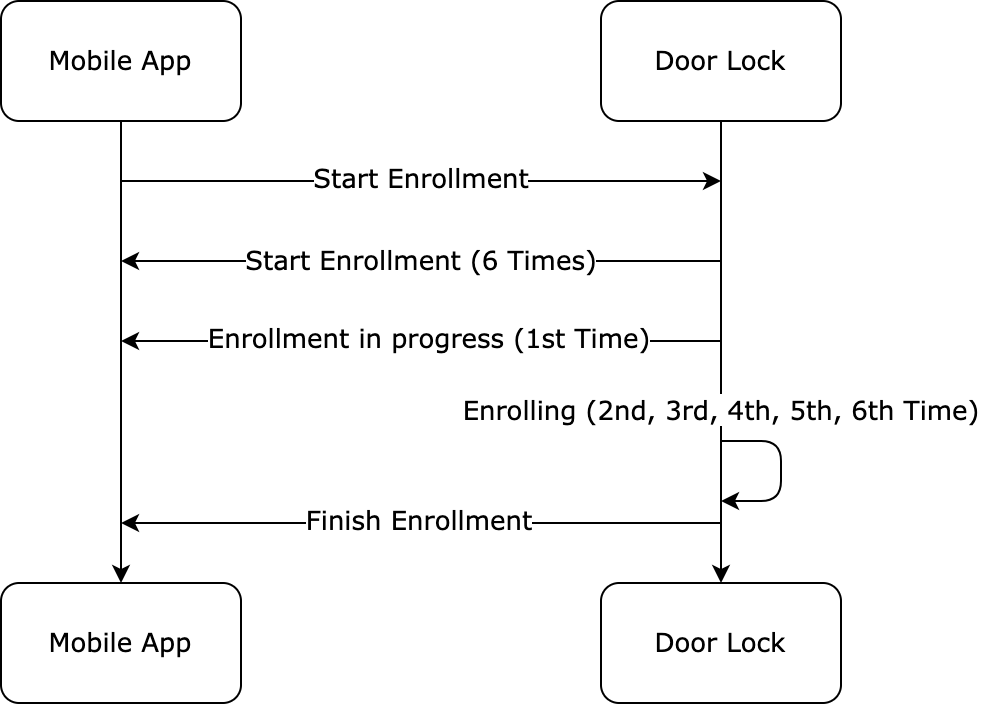

• The following figure shows how the mobile app interacts with the lock during the fingerprint enrollment.



Delete unlocking methods

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Cloud-to-device	2	Raw	len	Type (1 byte)	Stage (1 byte)	Admin flag (1 byte)	Member ID (1 byte)	Hardware ID (1 byte)	Deletion method (1 byte)
				0x00: Delete a member.	0x00: Default	0x00: Default The MCU does not need to check this field.	0x01 to 0x64	0xFF: Default value	0x00: Delete all the unlock methods granted to a member.
				0x01: Password 0x02: Door card 0x03: Fingerprint 0x04: Face 0x05: Palm print 0x06: Finger vein	0x00: Default	0x00: Ordinary member 0x01: Admin	0x01 to 0x64	0x00 to 0xFE	0x01: Delete a specified unlocking method granted to a member.
Device-to-cloud	2	Raw	len	Type (1 byte)	Stage (1 byte)	Admin flag (1 byte)	Member ID (1 byte)	Hardware ID (1 byte)	Deletion method (1 byte)		Return value (1 byte)
				0x00: Delete a member.	0x00: Default	0x00: Ordinary member 0x01: Admin	0x01 to 0x64	0xFF: Default value	0x00: Delete all the unlock methods granted to a member.		0x00: Deletion failed. 0xFF: Deletion succeeded. 0x01: Hardware ID does not exist. 0x02: Hardware ID cannot be deleted, such as the hardware ID associated with the admin.
				0x01: Password 0x02: Door card 0x03: Fingerprint 0x04: Face 0x05: Palm print 0x06: Finger vein	0x00: Default	0x00: Ordinary member 0x01: Admin	0x01 to 0x64	0x00 to 0xFE	0x01: Delete a specified unlocking method granted to a member.		0x00: Deletion failed. 0xFF: Deletion succeeded. 0x01: Hardware ID does not exist. 0x02: Hardware ID cannot be deleted, such as the hardware ID associated with the admin.

Modify unlocking methods

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Cloud-to-device	3	Raw	len	Type (1 byte)	Stage (1 byte)	Admin flag (1 byte)	Member ID (1 byte)	Hardware ID (1 byte)	Validity period (17 bytes)	Number of times (1 byte)	Password length (1 byte)	Password content (n bytes)
				0x00: Modify the validity period for members.	0x00: Default	0x00: Ordinary member 0x01: Admin	0x01 to 0x64	0xFF: Default value	See Appendix: Validity period.	0x00: Default value. (Modification is not allowed)	The bytes of a password (used for unlocking with password only)	Description
				0x01: Password 0x02: Door card 0x03: Fingerprint 0x04: Face 0x05: Palm print 0x06: Finger vein	0x00: Default	0x00: Ordinary member 0x01: Admin	0x01 to 0x64	0x00 to 0xFE	See Appendix: Validity period.	0x00: Permanent 0x01: One-time … 0xFE: 254 times 0xFF: Expired	The bytes of a password (used for unlocking with password only)	Same as above.
Device-to-cloud	3	Raw	len	Type (1 byte)	Stage (1 byte)	Admin flag (1 byte)	Member ID (1 byte)	Hardware ID (1 byte)	Number of times (1 byte)		Return value (1 byte)
				0x00: Modify the validity period for a specified member.	0x00: Default	0x00: Ordinary member 0x01: Admin	0x01 to 0x64	0xFF: Default value	0x00: Default value. (Modification is not allowed)		0x00: Failure 0xFF: Success
				0x01: Password 0x02: Door card 0x03: Fingerprint 0x04: Face 0x05: Palm print 0x06: Finger vein	0x00: Default	0x00: Ordinary member 0x01: Admin	0x01 to 0x64	0x00 to 0xFE	0x00: Permanent 0x01: One-time … 0xFE: 254 times 0xFF: Expired		0x00: Failure 0xFF: Success

Manage temporary passwords

Add temporary passwords

The types of temporary passwords include one-time and recurring. The temporary password is different from the ordinary password in the following ways:

• A temporary password is not associated with any members.
• The validity period of a temporary password can be modified when the lock is connected.
• As an unlocking method, the type of the temporary password is defined as 0xF0. 0x01 indicates password. 0x02 indicates door card. 0x03 indicates fingerprint.
• When responding to the cloud, the lock must report the hardware ID together with the cloud-preassigned temporary password ID to sync the mapping relationship between the two IDs with the cloud.

Take care of the following possible issue with temporary passwords:

• If the lock fails to sync the internal clock with the server time due to a power failure, this can cause the schedule for recurring access to not work properly.
• Solution:
  • Add a backup battery to the lock to ensure it can still be connected to the cloud even after a power failure.
  • You can accept the problems that might arise.

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Cloud-to-device	4	Raw	len	Cloud-assigned ID (2 bytes)	State (1 byte)	Validity period (17 bytes)	Number of times (1 byte)	Password length (1 byte)	Password content (n bytes)
				An associated ID assigned by the cloud.	0x00: Invalid 0x01: Valid	See Appendix: Validity period.	0x00: Permanent 0x01: One-time … 0xFE: 254 times 0xFF: Expired	The bytes of a password (used for unlocking with password only)	Same as Add Unlocking Methods.
Device-to-cloud	4	Raw	len	Cloud-assigned ID (2 bytes)	Hardware ID (1 byte)	Return value (1 byte)
				Same as above.	0x00 to 0xFE	0x00: Success. 0x01: Failure 0x02: Hardware ID is assigned.

Delete temporary passwords

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Cloud-to-device	5	Raw	len	Hardware ID (1 byte)
				0x00 to 0xFE
Device-to-cloud	5	Raw	len	Hardware ID (1 byte)	Return value (1 byte)
				0x00 to 0xFE	0x00: Success. 0x01: Failure.

Modify temporary passwords

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Cloud-to-device	6	Raw	len	Hardware ID (1 byte)	State (1 byte)	Validity period (17 bytes)	Number of times (1 byte)	Password length (1 byte)	Password content (n bytes)
				0x00 to 0xFE	0x00: Invalid 0x01: Valid	See Appendix: Validity period.	Same as Adding Temporary Passwords.	The bytes of a password (used for unlocking with password only)	Same as Adding Temporary Passwords.
Device-to-cloud	6	Raw	len	Hardware ID (1 byte)	Return value (1 byte)
				0x00 to 0xFE	0x00: Success. 0x01: Failure.

Sync unlocking methods

• Purpose: To ensure the unlocking methods in the local device and the server are in sync, each time users open the lock member list or pull down to refresh the list, all the added unlocking methods will be synced between them.

• Hardware types: Used to notify the lock of what unlocking methods it should report. For the in-sync stage, the data length of each packet is defined by you. The total length of one packet should not exceed 200 bytes.

• Sync locally-added unlocking methods: A lock syncs the locally-added unlocking methods with the cloud in the following cases:

  • If the member ID is 0xFF, the cloud saves this ID and associates the reported unlocking method with the app account that is bound with this lock. The member ID 0xFF is used when the cloud sends commands of this unlocking method. Note that this member ID cannot be deleted from the cloud.
  • If the member ID is 0xFD, the cloud saves this ID and associates the reported unlocking method with the app account that is bound with this lock. The member ID 0xFD is used when the cloud sends commands of this unlocking method. Note that this member ID is generic.
  This solution allows users to create temporary passwords that can be used when the lock gets offline. These passwords are cached in the cloud. After the lock gets back online and downloads the cached temporary passwords from the cloud, it should proactively sync the mapping relationship between the cloud-assigned ID and the hardware ID.

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Cloud-to-device	7	Raw	len	Hardware types (len bytes)
				0x01: Password 0x02: Door card 0x03: Fingerprint 0x04: Face 0x05: Palm print 0x06: Finger vein 0xF0: Temporary password
Device-to-cloud	7	Raw	len	Stage (1 byte)	Packet sequence number (1 byte)	Data for sync (n bytes)
				0x00: In-sync	0x00 to 0xFF The packet sequence number starts from 0, incrementally in order.	Data 1, Data 2 … Data n Data format definition
Device-to-cloud	7	Raw	len	Stage (1 byte)	Total packets (1 byte)
				0x01: Sync finished	Total packets For example, if a packet for the in-sync stage is delivered twice, the packets are two in total.

Manage remote unlocking

Set a key

• A key is required to use remote unlocking. The cloud sends the key to the lock after successful pairing. The MCU can also request the key.

• The key for remote unlocking (DP 10) is configured through the command for setting keys.

• In this command, validity, member ID, start time, end time, and access times are reserved fields.

  To enhance security, the key for remote unlocking is updated occasionally. The cloud determines the update rule. After a key is used for n times, the cloud sends a new key to the lock through DP 9.

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Cloud-to-device	9	Raw	len	Validity (1 byte)	Member ID (2 bytes)	Start time (4 bytes)	End time (4 bytes)	Access times (2 bytes)	Key (8 bytes)
				0x00: Invalid 0x01: Valid	0x01 to 0x64	Unix timestamp	Unix timestamp	0x0000 to 0xFFFF	ASCII code
Device-to-cloud	9	Raw	len	Return value (1 byte)				Member ID (2 bytes)
				0x00: Success. 0x01: Failure. 0x10: Request for the remote unlocking key. We recommend the MCU record the state of acquiring the key. If the key is not acquired, the module requests the key each time it is connected to the cloud.				0x01 to 0x64

Remote unlocking

Remote unlocking indicates the door is unlocked through non-short-range communication such as Bluetooth, which applies to Wi-Fi smart video locks.

• If the command is initiated by a mobile app, this is called remote unlocking by app.
• If the command is initiated by a smart speaker, this is called remote unlocking by voice.

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Cloud-to-device	10	Raw	len	State (1 byte)	Member ID (2 bytes)	Key (8 bytes)	Unlocking methods (2 bytes)
				0x00: Lock. 0x01: Unlock.	0x01 to 0x64	ASCII code	0x0000: Remote unlocking by unknown methods. 0x0001: Remote unlocking by app. 0x0002: Remote unlocking by voice.
Device-to-cloud	10	Raw	len	Return value (1 byte)			Member ID (2 bytes)
				0x00: Success. 0x01: Failure. 0x02: The key is invalid. 0x03: The access times run out. 0x04: The current time is not in the validity period. 0x05: Key comparison does not pass.			0x01 to 0x64

Lock settings

Feature	Messaging direction	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value (len bytes)
Doorbell ringtones	Cloud-to-device/device-to-cloud	20	enum	0x01	Ringtones (1 byte)
					0x00: Ringtone 0 0x01: Ringtone 1 … 0x0A: Ringtone 10
Doorbell volume	Cloud-to-device/device-to-cloud	21	enum	0x01	Volume (1 byte)
					0x00: Mute 0x01: Low volume 0x02: Medium volume 0x03: High volume
System language	Cloud-to-device/device-to-cloud	22	enum	0x01	Languages (1 byte)
					0x00: Simplified Chinese 0x01: English 0x02: Japanese 0x03: German 0x04: Spanish 0x05: Latin 0x06: French 0x07: Russian 0x08: Italian 0x09: Traditional Chinese 0x0A: Korean
Auto-locking settings	Cloud-to-device/device-to-cloud	23	bool	0x01	State (1 byte)
					0x00: Turn off. 0x01: Turn on.
Delay for auto-locking	Cloud-to-device/device-to-cloud	24	value	0x04	The length of time delay (4 bytes)
					0x00000001 to 0xFFFFFFFF in seconds
Single/combined unlocking	Cloud-to-device/device-to-cloud	25	enum	0x01	Combined unlocking methods (1 byte)
					0x00: Unlock with a single method 0x01: Fingerprint + Password 0x02: Fingerprint + Door card 0x03: Fingerprint + Face 0x04: Password + Door card 0x05: Password + Face 0x06: Door card + Face
Turn on/off locking check	Cloud-to-device/device-to-cloud	26	bool	0x01	State (1 byte)
					0x00: Turn off. 0x01: Turn on.
Arm away	Cloud-to-device/device-to-cloud	27	bool	0x01	State (1 byte)
					0x00: Turn off. 0x01: Turn on.
Do not disturb (DND)	Cloud-to-device/device-to-cloud	28	bool	0x01	State (1 byte)
					0x00: Turn off. 0x01: Turn on.
DND period	Cloud-to-device/device-to-cloud	29	raw	0x04	Start time (2 bytes)	End time (2 bytes)
					HH:MM (hour:minute)	HH:MM (hour:minute)
Keep-alive on/off	Cloud-to-device/device-to-cloud	44	bool	0x01	State (1 byte)
					0x00: Off (non-keep-alive). Wi-Fi goes online as needed. 0x01: On (keep-alive). Wi-Fi stays online and enters sleep mode at the specified time. DP 44 and DP 30 are mutually exclusive. If both DPs are selected, DP 44 takes precedence.
Sleep mode	Cloud-to-device/device-to-cloud	30	bool	0x01	State (1 byte)
					0x00: Off. 0x01: On. DP 44 and DP 30 are mutually exclusive. You can choose either.
Sleep mode time period	Cloud-to-device/device-to-cloud	31	raw	0x05	Start time (2 bytes)	End time (2 bytes)	Weekly schedule (1 byte)
					HH:MM (hour:minute)	HH:MM (hour:minute)	0x00: One-time See Appendix: Validity period
User guide	Cloud-to-device/device-to-cloud	32	raw	0x02	Feature (1 byte)	State (1 byte)
					0x00: Angle 0x01: Hover …	0x00: Success. 0x01: Failure.
Special control	Cloud-to-device/device-to-cloud	33	bool	0x01	State (1 byte)
					0x00: Turn off. 0x01: Turn on.
Special features	Cloud-to-device/device-to-cloud	34	enum	0x01	Custom features (1 byte)
					0x00: Feature 0 0x01: Feature 1 …
Electronic double locking	Cloud-to-device/device-to-cloud	35	bool	0x01	State (1 byte)
					0x00: Turn off. 0x01: Turn on (only the admin can unlock the door).
Manual locking	Cloud-to-device	8	bool	0x01	Fixed value (1 byte)
					0x01
	Device-to-cloud	8	bool	0x01	Return value (1 byte)
					0x00: Failure. 0x01: Success.

Report real-time status

Feature	Messaging direction	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value (len bytes)
Operating state	Device-to-cloud	11	enum	0x01	Mode (1 byte)
					0x00: keep_alive 0x01: sleep 0x02: lock_keep 0x03: lock_sleep
Alkaline battery level	Device-to-cloud	45	Value	0x04	Battery level (4 bytes)
					0x00 to 0x64
Lithium-ion battery level	Device-to-cloud	46	Raw	0x02	Battery level (1 byte)	Charging state (1 byte)
					0x00 to 0x64: Battery level 0xFF: Failed to obtain the battery level	0x00: Not charged 0x01: Charging 0x02: Fully charged
Locking/unlocking state	Device-to-cloud	47	Boolean	0x01	State (1 byte)
					0x00: Locked 0x01: Unlocked
Child lock	Device-to-cloud	48	Boolean	0x01	State (1 byte)
					0x00: Turn off the child lock. 0x01: Turn on the child lock.
Lift-up double locking	Device-to-cloud	49	Boolean	0x01	State (1 byte)
					0x00: Not double locked by lifting up the handle 0x01: Double locked by lifting up the handle
Double locking state	Cloud-to-device/device-to-cloud	50	Boolean	0x01	State (1 byte)
					0x00: Not double locked 0x01: Double locked
Door open/closed state	Device-to-cloud	51	enum	0x01	State (1 byte)
					0x00: The door is closed 0x01: The door is open 0x02: Unknown Note: The definitions of enumeration values are different from other all-in-one versions
Unlock from inside	Device-to-cloud	52	Boolean	0x01	State (1 byte)
					0x00: Undefined 0x01: Unlock from inside

Report records

Alert and unlocking records

Feature	Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (1 byte)	dp_data_value (len bytes)
Doorbell records	Device-to-cloud	53	Boolean	0x01	State (1 byte)
					0x00: Undefined 0x01: Calling
Alert records	Device-to-cloud	60	enum	0x01	Reasons for alerts (1 byte)
					Value range
Ordinary password unlocking records	Device-to-cloud	61	Value	0x04	Hardware ID (4 bytes)
					0x00 to 0xFE
Fingerprint unlocking records	Device-to-cloud	63	Value	0x04	Hardware ID (4 bytes)
					0x00 to 0xFE
Door card unlocking records	Device-to-cloud	64	Value	0x04	Hardware ID (4 bytes)
					0x00 to 0xFE
Face unlocking records	Device-to-cloud	65	Value	0x04	Hardware ID (4 bytes)
					0x00 to 0xFE
Palm print unlocking records	Device-to-cloud	66	Value	0x04	Hardware ID (4 bytes)
					0x00 to 0xFE
Finger vein unlocking records	Device-to-cloud	67	Value	0x04	Hardware ID (4 bytes)
					0x00 to 0xFE
Iris unlocking records	Device-to-cloud	68	Value	0x04	Hardware ID (4 bytes)
					0x00 to 0xFE
Temporary password unlocking	Device-to-cloud	69	Value	0x04	Hardware ID (4 bytes)
					0x00 to 0xFE
Mechanical key unlocking	Device-to-cloud	71	Value	0x04	Invalid field (4 bytes)
					Populated with 0xFF
Remote unlocking by app	Device-to-cloud	72	Value	0x04	Member ID (4 bytes)
					0x01 to 0x64
Remote unlocking by voice	Device-to-cloud	73	Value	0x04	Member ID (4 bytes)
					0x01 to 0x64

Locking records

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Device-to-cloud	62	Raw	0x05	Locking methods (1 byte)	Member ID (4 bytes)
				0x00: Locking by undefined methods 0x01: Remote locking by app 0x02: Remote locking by voice 0x03: Geofencing-based locking 0x04: Locking by app 0x05: Locking by using accessory 0x06: Auto-locking 0x07: Manual locking	0x01 to 0x64

Combined unlocking records

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Device-to-cloud	70	Raw	len	Combined unlocking methods (1 byte)	Unlocking method 1 (1 byte)	Hardware ID 1 (1 byte)	Unlocking method 2 (1 byte)	Hardware ID 2 (1 byte)
				0x01: Fingerprint + Password 0x02: Fingerprint + Door card 0x03: Fingerprint + Face 0x04: Password + Door card 0x05: Password + Face 0x06: Door card + Face	0x01: Password 0x02: Door card 0x03: Fingerprint 0x04: Face 0x05: Palm print 0x06: Finger vein 0xF0: Temporary password	0x01 to 0xFE	Same as unlocking method 1	0x01 to 0xFE

Offline password

• Scenarios:

  The door lock user gets an offline password from the app and notifies the visitor of this password. The offline password can be the following types:

  • One-time password: It is valid for six hours and can be used only once. If the password is used within the validity period, an unlocking record is created.

  • Timed password: It must be used once within 24 hours for activation. Otherwise, it will expire. It can be used unlimited times within the specified validity period. Every unlocking operation is recorded.

  • The code to clear a single password: It has the same validity period as the corresponding password and takes effect only on the first-time usage. A record of clearing a single password is created after the code is used.

  • The code to clear all passwords: It is a one-time clear code and valid for 24 hours. A record of clearing all passwords is created after the code is used.

• Limitations on clearing a single password or all passwords:

  • Only the activated and valid password can be cleared.
  • The one-time password cannot be cleared because it is invalid after use.

• Usage: For more information, see Serial Communication Protocol.

Feature	Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (1 byte)	dp_data_value
Offline password Set T0 time	Cloud-to-device/device-to-cloud	86	String	len	T0 timestamp (10 bytes)
					Unix timestamp The module processes this DP, without the MCU taking care of it.
Offline password unlocking records	Device-to-cloud	89	Raw	0x10	Encrypted password (16 bytes)
					For more information, see Serial Communication Protocol.
Offline password Clear a single record	Device-to-cloud	87	Raw	0x10	The encrypted code for clearing passwords (16 bytes)
					For more information, see Serial Communication Protocol.
Offline password Clear all records	Device-to-cloud	88	Raw	0x10	The encrypted code for clearing passwords (16 bytes)
					For more information, see Serial Communication Protocol.

Manage unlocking methods (bulk version)

Background: The default or standard solution supports only a 1-byte member and unlocking method, which is insufficient for access control devices. To address this limitation, a new set of bulk version DPs is designed to manage large-sized members and unlocking methods. The bulk version DPs differ from the standard version DPs only in the bytes of member ID and hardware ID. When you create products or write code, select the DP of the required version.

DP ID mapping

DP	Default/standard version	Bulk version
Add unlocking methods	DP ID=1	DP ID=13
Delete unlocking methods	DP ID=2	DP ID=14
Modify unlocking methods	DP ID=3	DP ID=15
Add temporary passwords	DP ID=4	DP ID=16
Delete temporary passwords	DP ID=5	DP ID=17
Modify temporary passwords	DP ID=6	DP ID=18
Sync unlocking methods	DP ID=7	DP ID=19
Combined unlocking records	DP ID=70	DP ID=74

Add unlocking methods

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Cloud-to-device	13	raw	len	Type (1 byte)	Stage (1 byte)	Admin flag (1 byte)	Member ID (2 bytes)	Hardware ID (2 bytes)	Validity period (17 bytes)	Number of times (1 byte)	Password length (1 byte)	Password content (n bytes)	Message UUID (2 bytes)
				0x01: Password 0x02: Door card 0x03: Fingerprint 0x04: Face 0x05: Palm print 0x06: Finger vein	0x00: Start enrollment. 0xFE: Cancel enrollment (initiated by app).	0x00: Ordinary member 0x01: Admin	0x0001 to 0xFFFF	0xFFFF: Default value	See Appendix: Validity period.	0x00: Permanent 0x01: One-time … 0xFE: 254 times 0xFF: Expired	The bytes of a password (used for unlocking with password only)	The password is sent in the numerical format. The valid values for each byte range from 0x00 to 0x09. For example, if a password is 123456, the data to be sent is [0x01,0x02,0x03,0x04,0x05,0x06] When the password length is 0, the field of password content is not passed in.	Description
Device-to-cloud	13	raw	len	Type (1 byte)	Stage (1 byte)	Admin flag (1 byte)	Member ID (2 bytes)	Hardware ID (2 bytes)	Number of times (1 byte)		Return value (1 byte)		Message UUID (2 bytes)
				0x01: Password 0x02: Door card 0x03: Fingerprint 0x04: Face 0x05: Palm print 0x06: Finger vein	0x00: Start enrollment.	0x00: Ordinary member 0x01: Admin	0x0001 to 0xFFFF	0xFFFF: Default value	The number of times to finish enrollment For example, six to eight times for fingerprint enrollment. One time for door card or face enrollment.		0x00: Default value		Same as above.
					0xFC: Enrollment in progress	0x00: Ordinary member 0x01: Admin	Same as above.	Same as above.	The sequence number for enrollment times, starting from 1. For example, fingerprint enrollment might be eight times. This field is populated with the current times.		Reasons for failed enrollment: 0x00: Success. 0x01: Fingerprint-scanning failed due to incomplete fingerprint or a wet finger.
					0xFD: Enrollment failed	0x00: Ordinary member 0x01: Admin	Same as above.	Same as above.	Current enrollment stage: 0x00: Start enrollment. 0xFC: Enrollment in progress. 0xFF: Finish enrollment.		Reasons for failed enrollment
					0xFE: Cancel enrollment (initiated by app).	0x00: Ordinary member 0x01: Admin	Same as above.	Same as above.	0x00: Default value		0x00: Default value
					0xFF: Enrollment is finished.	0x00: Ordinary member 0x01: Admin	0x0001 to 0xFFFF	Hardware ID assigned to the device. Valid values range from 0x0000 to 0xFFFE.	0x00: Default value		0x00: Default value

Delete unlocking methods

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Cloud-to-device	14	raw	len	Type (1 byte)	Stage (1 byte)	Admin flag (1 byte)	Member ID (2 bytes)	Hardware ID (2 bytes)	Deletion method (1 byte)
				0x00: Delete a member.	0x00: Default	0x00: Default The MCU does not need to check this field.	0x0001 to 0xFFFF	0xFFFF: Default value	0x00: Delete all the unlock methods granted to a member.
				0x01: Password 0x02: Door card 0x03: Fingerprint 0x04: Face 0x05: Palm print 0x06: Finger vein	0x00: Default	0x00: Ordinary member 0x01: Admin	0x0001 to 0xFFFF	0x0000 to 0xFFFE	0x01: Delete a specified unlocking method granted to a member.
Device-to-cloud	14	raw	len	Type (1 byte)	Stage (1 byte)	Admin flag (1 byte)	Member ID (2 bytes)	Hardware ID (2 bytes)	Deletion method (1 byte)		Return value (1 byte)
				0x00: Delete a member.	0x00: Default	0x00: Ordinary member 0x01: Admin	0x0001 to 0xFFFF	0xFFFF: Default value	0x00: Delete all the unlock methods granted to a member.		0x00: Deletion failed. 0xFF: Deletion succeeded. 0x01: Hardware ID does not exist. 0x02: Hardware ID cannot be deleted, such as the hardware ID associated with the admin.
				0x01: Password 0x02: Door card 0x03: Fingerprint 0x04: Face 0x05: Palm print 0x06: Finger vein	0x00: Default	0x00: Ordinary member 0x01: Admin	0x0001 to 0xFFFF	0x0000 to 0xFFFE	0x01: Delete a specified unlocking method granted to a member.		0x00: Deletion failed. 0xFF: Deletion succeeded. 0x01: Hardware ID does not exist. 0x02: Hardware ID cannot be deleted, such as the hardware ID associated with the admin.

Modify unlocking methods

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Cloud-to-device	15	raw	len	Type (1 byte)	Stage (1 byte)	Admin flag (1 byte)	Member ID (2 bytes)	Hardware ID (2 bytes)	Validity period (17 bytes)	Number of times (1 byte)	Password length (1 byte)	Password content (n bytes)
				0x00: Modify the validity period for members.	0x00: Default	0x00: Ordinary member 0x01: Admin	0x0001 to 0xFFFF	0xFFFF: Default value	See Appendix: Validity period.	0x00: Default value. (Modification is not allowed)	The bytes of a password (used for unlocking with password only)	Description
				0x01: Password 0x02: Door card 0x03: Fingerprint 0x04: Face 0x05: Palm print 0x06: Finger vein	0x00: Default	0x00: Ordinary member 0x01: Admin	0x0001 to 0xFFFF	0x0000 to 0xFFFE	See Appendix: Validity period.	0x00: Permanent 0x01: One-time … 0xFE: 254 times 0xFF: Expired	The bytes of a password (used for unlocking with password only)	Same as above.
Device-to-cloud	15	raw	len	Type (1 byte)	Stage (1 byte)	Admin flag (1 byte)	Member ID (2 bytes)	Hardware ID (2 bytes)	Number of times (1 byte)		Return value (1 byte)
				0x00: Modify the validity period for a specified member.	0x00: Default	0x00: Ordinary member 0x01: Admin	0x0001 to 0xFFFF	0xFFFF: Default value	0x00: Default value. (Modification is not allowed)		0x00: Failure 0xFF: Success
				0x01: Password 0x02: Door card 0x03: Fingerprint 0x04: Face 0x05: Palm print 0x06: Finger vein	0x00: Default	0x00: Ordinary member 0x01: Admin	0x0001 to 0xFFFF	0x0000 to 0xFFFE	0x00: Permanent 0x01: One-time … 0xFE: 254 times 0xFF: Expired		0x00: Failure 0xFF: Success

Add temporary passwords

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Cloud-to-device	16	raw	len	Cloud-assigned ID (2 bytes)	State (1 byte)	Validity period (17 bytes)	Number of times (1 byte)	Password length (1 byte)	Password content (n bytes)
				An associated ID assigned by the cloud.	0x00: Invalid 0x01: Valid	See Appendix: Validity period.	0x00: Permanent 0x01: One-time … 0xFE: 254 times 0xFF: Expired	The bytes of a password (used for unlocking with password only)	Same as Add Unlocking Methods.
Device-to-cloud	16	raw	len	Cloud-assigned ID (2 bytes)	Hardware ID (2 bytes)	Return value (1 byte)
				Same as above.	0x0000 to 0xFFFE	0x00: Success. 0x01: Failure 0x02: Hardware ID is assigned.

Delete temporary passwords

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Cloud-to-device	17	raw	len	Hardware ID (2 bytes)
				0x0000 to 0xFFFE
Device-to-cloud	17	raw	len	Hardware ID (2 bytes)	Return value (1 byte)
				0x0000 to 0xFFFE	0x00: Success. 0x01: Failure.

Modify temporary passwords

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Cloud-to-device	18	raw	len	Hardware ID (2 bytes)	State (1 byte)	Validity period (17 bytes)	Number of times (1 byte)	Password length (1 byte)	Password content (n bytes)
				0x0000 to 0xFFFE	0x00: Invalid 0x01: Valid	See Appendix: Validity period.	Same as Adding Temporary Passwords.	The bytes of a password (used for unlocking with password only)	Same as Adding Temporary Passwords.
Device-to-cloud	18	raw	len	Hardware ID (2 bytes)	Return value (1 byte)
				0x0000 to 0xFFFE	0x00: Success. 0x01: Failure.

Sync unlocking methods

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Cloud-to-device	19	raw	len	Message ID (2 bytes)	Hardware types (n bytes)
				Used to be associated with a packet	0x01: Password 0x02: Door card 0x03: Fingerprint 0x04: Face 0x05: Palm print 0x06: Finger vein
Device-to-cloud	19	raw	len	Stage (1 byte)	Message ID (2 bytes)	Packet sequence number (1 byte)	Data for sync (n bytes)
				0x00: In-sync	Same as above	0x00 to 0xFF The packet sequence number starts from 0, incrementally in order.	Data 1, Data 2 … Data n Data format definition
Device-to-cloud	19	raw	len	Stage (1 byte)	Message ID (2 bytes)	Total packets (1 byte)
				0x01: Sync finished	Same as above	Total packets For example, if a packet for the in-sync stage is delivered twice, the packets are two in total.

Combined unlocking records

Data transmission	dp_id (1 byte)	dp_type (1 byte)	dp_data_len (2 bytes)	dp_data_value
Device-to-cloud	74	raw	len	Combined unlocking methods (1 byte)	Unlocking method 1 (1 byte)	Hardware ID 1 (2 bytes)	Unlocking method 2 (1 byte)	Hardware ID 2 (2 bytes)
				0x01: Fingerprint + Password 0x02: Fingerprint + Door card 0x03: Fingerprint + Face 0x04: Password + Door card 0x05: Password + Face 0x06: Door card + Face	0x01: Password 0x02: Door card 0x03: Fingerprint 0x04: Face 0x05: Palm print 0x06: Finger vein 0xF0: Temporary password	0x0000 to 0xFFFE	Same as unlocking method 1	0x0000 to 0xFFFE

Appendix: Validity period

Byte(s)	Meaning	Description	Example
1	Start time	Unsigned integer Data is four bytes long, stored in big-endian format.	Example: 123-456-789 (Unix timestamp) = 0x‭075BCD15 (hex)‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬ If the validity is permanent, the start time is 0x386CD300.			07
2						5B
3						CD
4						15
5	End time	Unsigned integer Data is four bytes long, stored in big-endian format.	Example: 999-999-999 (Unix timestamp) = 0x‭3B9AC9FF (hex)‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬ If the validity is permanent, the end time is 0x72BC9B7F.			3B
6						9A
7						C9
8						FF
9	The recurring patterns:		0x00: One-time	0x01: Daily schedule	0x02: Weekly schedule	0x03: Monthly schedule
10	Recurring flag 1		For a one-time schedule, 10 to 17 bytes are 0.	This field defaults to 0x00.	This field defaults to 0x00.	Bit 7: Default to 0 Bit 6: The 31st of a month … Bit 0: The 25th of a month
11	Recurring flag 2			This field defaults to 0x00.	This field defaults to 0x00.	Bit 7: The 24th of a month … Bit 0: The 17th of a month
12	Recurring flag 3			This field defaults to 0x00.	This field defaults to 0x00.	Bit 7: The 16th of a month … Bit 0: The 9th of a month
13	Recurring flag 4			This field defaults to 0x00.	Bit 7: Default to 0 Bit 6: Saturday … Bit 1: Monday Bit 0: Sunday	Bit 7: The 8th of a month … Bit 0: The 1st of a month
14	The start time 1 (hour) in a day		Start time: 08:30			08 (decimal)
15	The start time 2 (minute) in a day					30 (decimal)
16	The end time 1 (hour) in a day		End time: 20:30			20 (decimal)
17	The end time 2 (minute) in a day					30 (decimal)

When users add or modify unlocking methods, the recurring validity period and the access times are both applied. There are two use cases:

• When the access times are 0x00, this indicates permanent access. You only need to process the recurring pattern of the validity.
• When the recurring pattern is 0x00, this indicates one-time access. You only need to process the access times.

For example, schedule a password to be valid every Monday to Friday from 08:00 to 08:30 from 2018-01-26 08:00:00 to 2018-08-08 09:56:32. The validity is 0x ‭5A6A6F80 5B6A4DD0 02 0000003E 0800 081E‬‬‬‬‬‬.

• 2018-01-26 08:00:00 = 1516924800 (Unix timestamp) = 0x‭5A6A6F80‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬‬ (hex)
• 2018-08-08 09:56:32 = 1533693392 (Unix timestamp) = 0x5B6A4DD0‬ (hex)
• The recurring pattern: 0x02 indicates weekly schedule.
• Recurring flag 1 = Recurring flag 2 = Recurring flag 3 = 0x00
• Recurring flag 4 = 0x3E (from Monday to Friday)
• The start time 1 is 0x08. The start time 2 is 0x00.
• The end time 1 is 0x08. The end time 2 is 0x1E.
