Production Authorization

This topic describes how to obtain a license, write it to devices, and integrate the production test interfaces into your firmware.

License

The license is an encryption certificate issued by Tuya to allow a device to connect to the Tuya IoT operating system. Each device must be assigned a unique license for authentication. A license grants permission for a single device to connect to and access the cloud.

A license contains the following fields:

Field	Description
uuid	The unique ID of the specified device. Globally unique and cannot be flashed to multiple devices.
auth_key	Authentication key that corresponds to the uuid.
pin	Short code used for QR code pairing on Wi-Fi devices. Available only after the advanced capability is enabled.

Get the license

You can request a free license or purchase one.

• Request free license
• Purchase license

Write license

The license can be delivered in two ways: a license list and a credential.

License list

Delivered as an Excel spreadsheet containing a list of clear keys (uuid and auth_key). Licenses are generated when the order is redeemed, and the corresponding clear keys are provided. You manage the key pairs.

Flashing method: Use your own tools to write the authorization information to devices individually.

Credential

Delivered as a string of characters (internally referred to as a Token). When redeeming the order, select one of the following delivery modes:

Delivery mode	Contents
Credential	Firmware and authorization information
Credential (authorization only)	Authorization information only, without firmware

Flashing method: Use Tuya’s production test tool to parse and write the authorization information to devices.

Scenario

Select a delivery mode based on your production method:

Production method	Recommended delivery method
Production using Tuya’s production test tool	Credential is required
Production using custom tools	Either a credential or a license list

How to use

• License list: After obtaining the spreadsheet, implement your own writing script. After each product passes testing, your server writes a key pair (uuid and auth_key) to the device.
• Credential: Use Tuya’s production test tool to edit the routing and load the testing script. After each product passes testing, the tool writes a key pair to the device.

Production test workflow

Prepare firmware

1. Complete business code development and integrate the ty_rvc_mf_init call into the initialization entry.
2. Compile the firmware.
3. Upload the firmware to the Tuya Developer Platform.

Download Production Toolkit

Download the corresponding Production Toolkit for your product category from the Tuya Developer Platform. The package includes the required production test tool.

Hardware connection

Device serial port (TX/RX/GND)
       │
   TTL-to-USB adapter
       │
   PC USB port

• Serial port configuration: 9600 bps, 8N1
• After the connection is established, you can use the production test tool.

Run production test

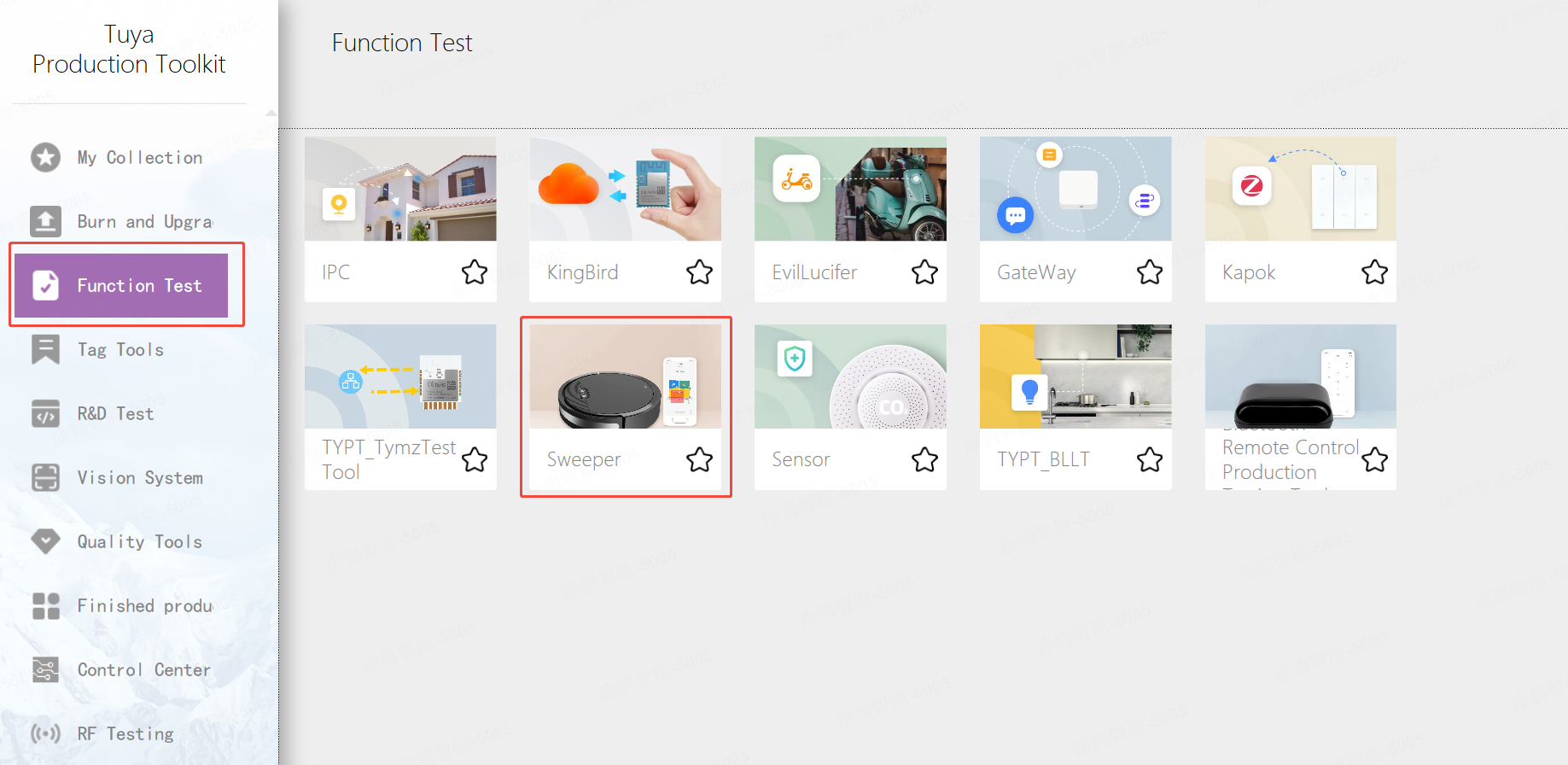

1. Under Functional Test, select Sweeper.

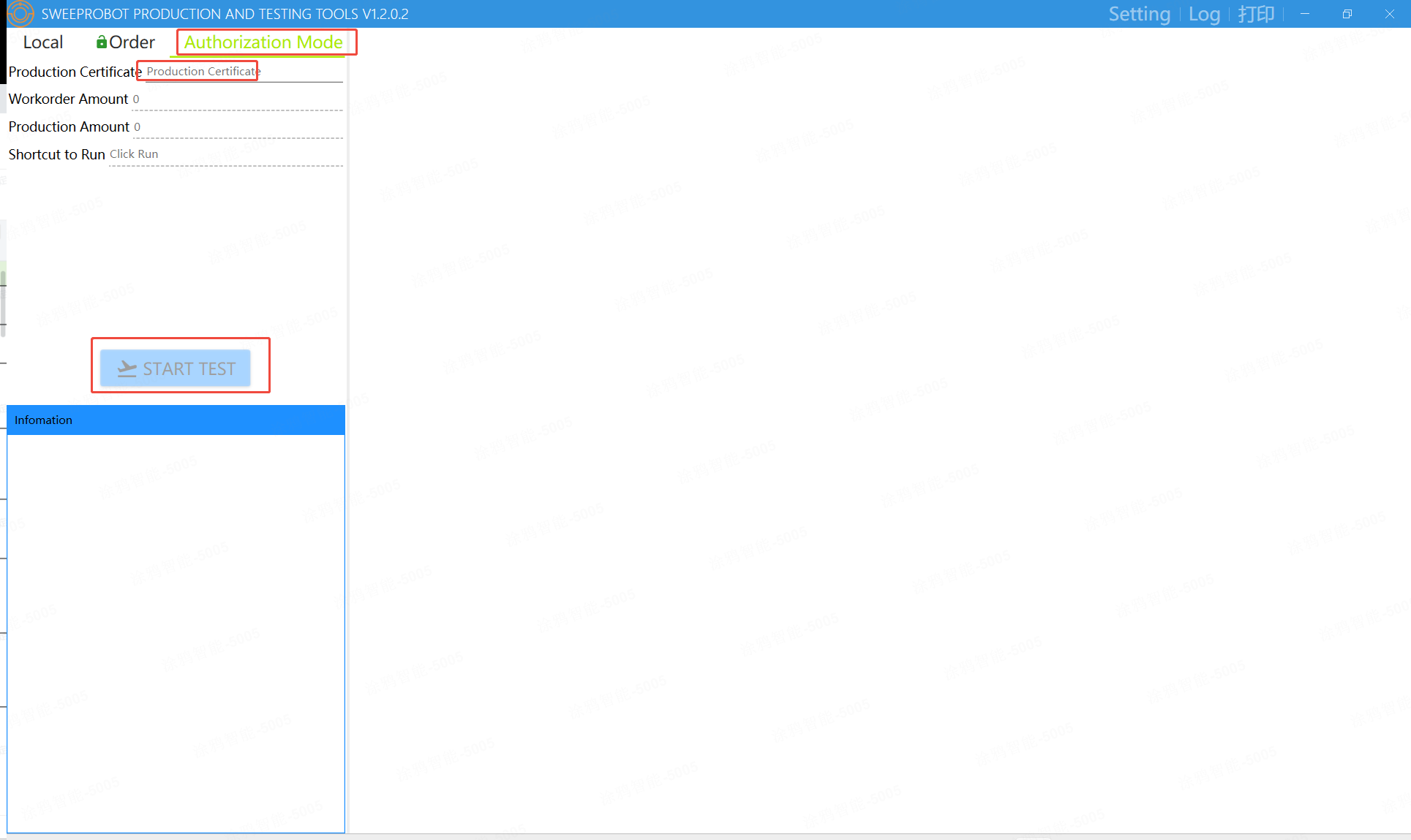

2. Select Authorization Mode, enter the Production Certificate, and then click Start Test.

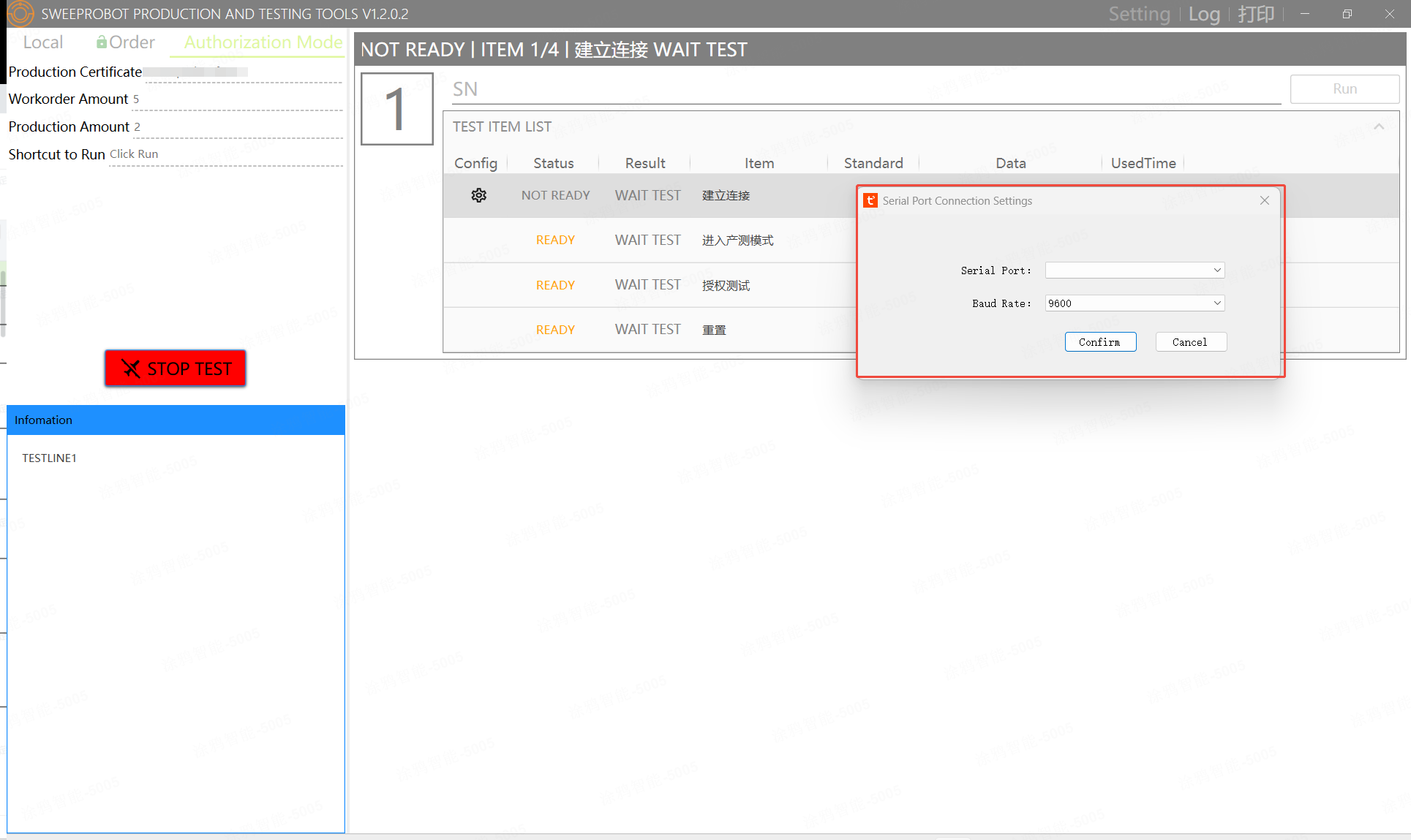

3. In Test Item List > Config, click the configuration button. In the Serial Port Connection Settings window, select the serial port and baud rate.



API reference

API description

ty_rvc_mf_init is the production authorization initialization entry provided by the Tuya Robot Vacuum (RVC) SDK. It is called during device startup to determine whether the device should enter production test and to write authorization information during production test.

Function signature

OPERATE_RET ty_rvc_mf_init(IN CHAR_T *user_sw_ver, TY_RVC_MF_DATA_EVENT_CB mf_info_cb);

Parameters

Parameter	Type	Direction	Description
user_sw_ver	CHAR_T *	in	Firmware version string, for example, "1.0.0".
mf_info_cb	TY_RVC_MF_DATA_EVENT_CB	in	Authorization information callback. Triggered when the production test tool sends the license and used to write the data to flash memory.

Return values

Return value	Description
OPRT_OK	The production test entry is disabled (normal production device), or no command is received within the 500 ms detection window and the function exits normally.
Other error codes	Internal initialization failure, such as memory allocation, timer creation, or thread creation failure.

Callback type

typedef INT_T (*TY_RVC_MF_DATA_EVENT_CB)(IN void *param);

The actual type of the callback parameter param is GW_BASE_IF_S *. The callback is triggered after the production test tool sends the license. Write the license to flash memory in the callback.

How it works

Key timing parameters:

Parameter	Value	Description
MF_DETECT_MSTIME	500 ms	Production test detection window. The process exits after timeout.
UART_BAUD_RATE	9600 bps	Production test UART baud rate.
Auto-disable production test mode	15 minutes	A disable flag is written 15 minutes after successful activation, preventing future entry into production test mode.

Code integration example

Implement the authorization information callback

/**
 * @brief Validate manufacturing authorization base info.
 * @param[in] base_if GW base interface data.
 * @return OPRT_OK on success, error code on invalid data.
 */
STATIC OPERATE_RET __ty_mf_info_validate(CONST GW_BASE_IF_S *base_if)
{
    if (base_if == NULL) {
        PR_ERR("mf info param null");
        return OPRT_INVALID_PARM;
    }
    if (base_if->uuid[0] == '\0' || strlen(base_if->uuid) > GW_UUID_LEN) {
        PR_ERR("mf info uuid invalid");
        return OPRT_INVALID_PARM;
    }
    if (base_if->auth_key[0] == '\0' || strlen(base_if->auth_key) > AUTH_KEY_LEN) {
        PR_ERR("mf info auth_key invalid");
        return OPRT_INVALID_PARM;
    }
    if (base_if->pin[0] == '\0' || strlen(base_if->pin) >= SIZEOF(base_if->pin)) {
        PR_ERR("mf info pin invalid");
        return OPRT_INVALID_PARM;
    }
    return OPRT_OK;
}

/**
 * @brief Manufacturing authorization info callback.
 * @param[in] param GW_BASE_IF_S pointer.
 * @return OPRT_OK on success, error code on failure.
 */
STATIC INT_T ty_mf_info_cb(void *param)
{
    GW_BASE_IF_S *base_if = (GW_BASE_IF_S *)param;
    GW_BASE_IF_S local_info = {{0}};
    OPERATE_RET rt = OPRT_OK;

    if (base_if == NULL) {
        return OPRT_INVALID_PARM;
    }
    memcpy(&local_info, base_if, SIZEOF(GW_BASE_IF_S));
    rt = __ty_mf_info_validate(&local_info);
    if (OPRT_OK != rt) {
        return rt;
    }
    PR_NOTICE("mf info ok, uuid=%s", local_info.uuid);
    /* Write the uuid, auth_key, and pin to flash memory. */
    return OPRT_OK;
}

Call during initialization

static OPERATE_RET ty_iot_sdk_init(CHAR_T *p_token)
{
    /* ... Other initialization ... */

    /* Production test initialization. Must be called before tuya_iot_wf_dev_init. */
    ty_rvc_mf_init(TY_APP_VERSION, ty_mf_info_cb);

    /* Continue with normal initialization */
    TUYA_CALL_ERR_RETURN(tuya_iot_wf_dev_init(...));
    /* ... */
}

TKL interface adaptation description

The production test communication and hardware operations used by ty_rvc_mf_init depend on the TKL (Tuya Kernel Layer). When porting to a new platform, implement the required interfaces in vendor/<platform>/tuyaos/tuyaos_adapter/.

UART interface adaptation

Production test serial port communication relies on the interfaces defined in tkl_uart.h. Although the TAL layer encapsulates UART operations, the platform must implement the following TKL interfaces:

Interface	Function signature	Description
tkl_uart_init	OPERATE_RET tkl_uart_init(TUYA_UART_NUM_E port_id, TUYA_UART_BASE_CFG_T *cfg)	Initialize the UART. Production test uses TUYA_UART_NUM_0 with a baud rate of 9600/8N1.
tkl_uart_deinit	OPERATE_RET tkl_uart_deinit(TUYA_UART_NUM_E port_id)	Release serial port resources after the production test ends.
tkl_uart_write	INT_T tkl_uart_write(TUYA_UART_NUM_E port_id, VOID_T *buff, UINT16_T len)	Send the production test protocol response frame to the host.
tkl_uart_read	INT_T tkl_uart_read(TUYA_UART_NUM_E port_id, VOID_T *buff, UINT16_T len)	Read host data from the receive buffer (non-blocking).
tkl_uart_rx_irq_cb_reg	VOID_T tkl_uart_rx_irq_cb_reg(TUYA_UART_NUM_E port_id, TUYA_UART_IRQ_CB rx_cb)	Register RX interrupt callback. The TAL uses this callback to write data into the internal ring buffer.

The fixed configuration of the serial port during the production test is as follows:

TUYA_UART_BASE_CFG_T base_cfg = {
    .baudrate = 9600,
    .databits = TUYA_UART_DATA_BIT_8,
    .parity   = TUYA_UART_PARITY_NONE,
    .stopbits = TUYA_UART_STOP_BIT_1,
    .flowctrl = TUYA_UART_FLOWCTRL_NONE,
};

MAC interface adaptation

When the production test tool needs to read the Wi-Fi module MAC address, the SDK calls the following interface in tkl_wifi.h:

Interface	Function signature	Description
tkl_wifi_get_mac	OPERATE_RET tkl_wifi_get_mac(CONST WF_IF_E wf, NW_MAC_S *mac)	Read the Wi-Fi module MAC address and report it to the host for record keeping.

NW_MAC_S is defined as follows:

typedef struct {
    BYTE_T mac[6];   /* MAC address, 6 bytes, network byte order */
} NW_MAC_S;

Notes

Item	Description
Timing	It must be called before tuya_iot_wf_dev_init.
Blocking characteristics	After entering the production test, the function blocks until the production test is complete.
Production test close flag	The SDK automatically writes a close flag to the DB file 15 minutes after successful activation.
Callback memory safety	The GW_BASE_IF_S pointer received by mf_info_cb is valid only during the callback execution and must be copied immediately if needed.
License uniqueness	The uuid is bound to the device and has global uniqueness. You cannot burn the same uuid to multiple devices.
Serial port resources	The serial port is exclusively occupied by the SDK during the production test and must not be accessed simultaneously by the application.
