Quick Start

This topic describes the directory structure of the development kit, with an explanation of folders and their content.

Directory

The directory of the development kit:

├── software
│    ├── packages               # SDK package.
│    ├── SDKInformation.json    # SDK information file.
│    └── TuyaOS					# SDK directory.
│       ├── apps				# The sample applications, which can be modified as needed.
│       ├── build
│       ├── build_app.sh			# The script for compilation.
│       ├── CHANGELOG.md
│       ├── include				# The header file of the SDK.
│       ├── libs				# SDK libraries. You can link them as needed.
│       ├── LICENSE				# Tuya MIT License
│       ├── Makefile
│       ├── output				# The build output.
│       ├── prepare_app.sh
│       ├── README.md
│       ├── scripts
│       ├── tmp
│       └── vendor				# The toolchain. When you build a project, the toolchain is automatically downloaded to this directory.
├── T5
│   ├── hardware				# Hardware documentation.
│   │   └── T5
│   └── pc
│       └── tools				# Development tools.
└── tuya.json

TuyaOS > apps > T5AI_gateway-T5_zg_gw directory:

├── application_components		# Source code of custom components.
├── application_drivers
├── bak-build.sh
├── build
├── build.conf
├── default_gpio_config.json
├── fs.bin				# File system where temporarily stores the default audio. You can make your own file system.
├── include				# The header file.
├── libs
├── local.mk
├── output				# The build output.
├── package.json
├── README.md
└── src				        # The source code.

Configurations

The RTOS gateway needs to generate a JSON configuration during initialization, as shown below:

STATIC OPERATE_RET __gen_config(ty_cJSON **cfg)
{
    ty_cJSON *root = NULL, *bt = NULL, *tuya = NULL;

    if (cfg == NULL) {
        PR_ERR("param is null");
        return OPRT_INVALID_PARM;
    }

    bt = ty_cJSON_CreateObject();
    ty_cJSON_AddNumberToObject(bt, "enable_hb", 1);
    ty_cJSON_AddNumberToObject(bt, "scan_timeout", 5);
    ty_cJSON_AddNumberToObject(bt, "subdev_type", 0xF);

    tuya = ty_cJSON_CreateObject();
    ty_cJSON_AddItemToObject(tuya, "bt", bt);

    root = ty_cJSON_CreateObject();
    ty_cJSON_AddStringToObject(root, "pid", PRODUCT_KEY);
    ty_cJSON_AddStringToObject(root, "uuid", UUID);
    ty_cJSON_AddStringToObject(root, "authkey", AUTHKEY);
    ty_cJSON_AddItemToObject(root, "tuya", tuya);

    *cfg = root;

    return OPRT_OK;
}

The fields are analyzed in detail as follows. Format:

{
    "pid": <xxx>,
    "uuid": <...>,
    "authkey_key": <...>,
    "ap_ssid": <... optional>,
    "ap_password": <... optional>,
    "log_level": <level>,
    "storage_path": <...>,
    "start_mode": <xxxx>,
    "tuya": {
        "bt": {
                "enable_hb": <xxx, number>,
                "scan_timeout": <xxx, number>,
                "subdev_type": <xxx, number>,
        },
    },
    "user": {
        [ { "tp": <DEV_ATTACH_MOD_X, number>, "sw_ver": <version, string> }, ... ]
    },
}

Common configurations

Field	Required	Description
PID	Yes	The SDK runs in non-OEM mode. pid specifies the product ID (PID) of the current device.
uuid	No	The universally unique identifier. The system reads UUID from the NVRAM first. If no UUID is found, the UUID specified here is used. For more information about NVRAM, see Flash Full Firmware.
authkey_key	No	The authorization key. The system reads the authorization key from the NVRAM first. If no authorization key is found, the authorization key specified here is used. For more information about NVRAM, see Flash Full Firmware.
ap_ssid	No	The SSID of the access point (AP) used for pairing in Wi-Fi AP mode. If not specified, the default value is SmartLife-<the last four characters of the WLAN MAC>.
ap_password	No	The password of the AP, defaulting to empty.
log_level	No	The log level, defaulting to debug level (level 4).
storage_path	Yes	The file storage path. The file system must be read/write.
start_mode	No	The supported Wi-Fi pairing modes: 0: WF_START_AP_ONLY. Wi-Fi AP mode only. 1: WF_START_SMART_ONLY. Wi-Fi EZ mode (Wi-Fi Easy Connect) only. 2: WF_START_AP_FIRST. Both Wi-Fi AP mode and Wi-Fi EZ mode are available, with Wi-Fi AP mode taking priority. 3: WF_START_SMART_FIRST. Both Wi-Fi AP mode and Wi-Fi EZ mode are available, with Wi-Fi EZ mode taking priority. 4: WF_START_SMART_AP_CONCURRENT. Wi-Fi AP mode and Wi-Fi EZ mode coexist.

Zigbee configuration

Field	Required	Description
storage_path	Yes	The file storage path. The file system must be read/write.
cache_path	Yes	A temporary directory to store cache files, such as OTA update files.
dev_name	Yes	The name of the serial port.
cts	Yes	Specifies whether to enable flow control. Tuya’s NCP has flow control enabled.
thread_mode	Yes	1: Run the Zigbee host program in thread mode. 0: Run the Zigbee host program in process mode.

Build

Follow the steps below to build on Visual Studio Code:

1. Expand TuyaOS > apps. Right-click on the demo directory and choose Build Project. Enter a version number and press the Enter key.

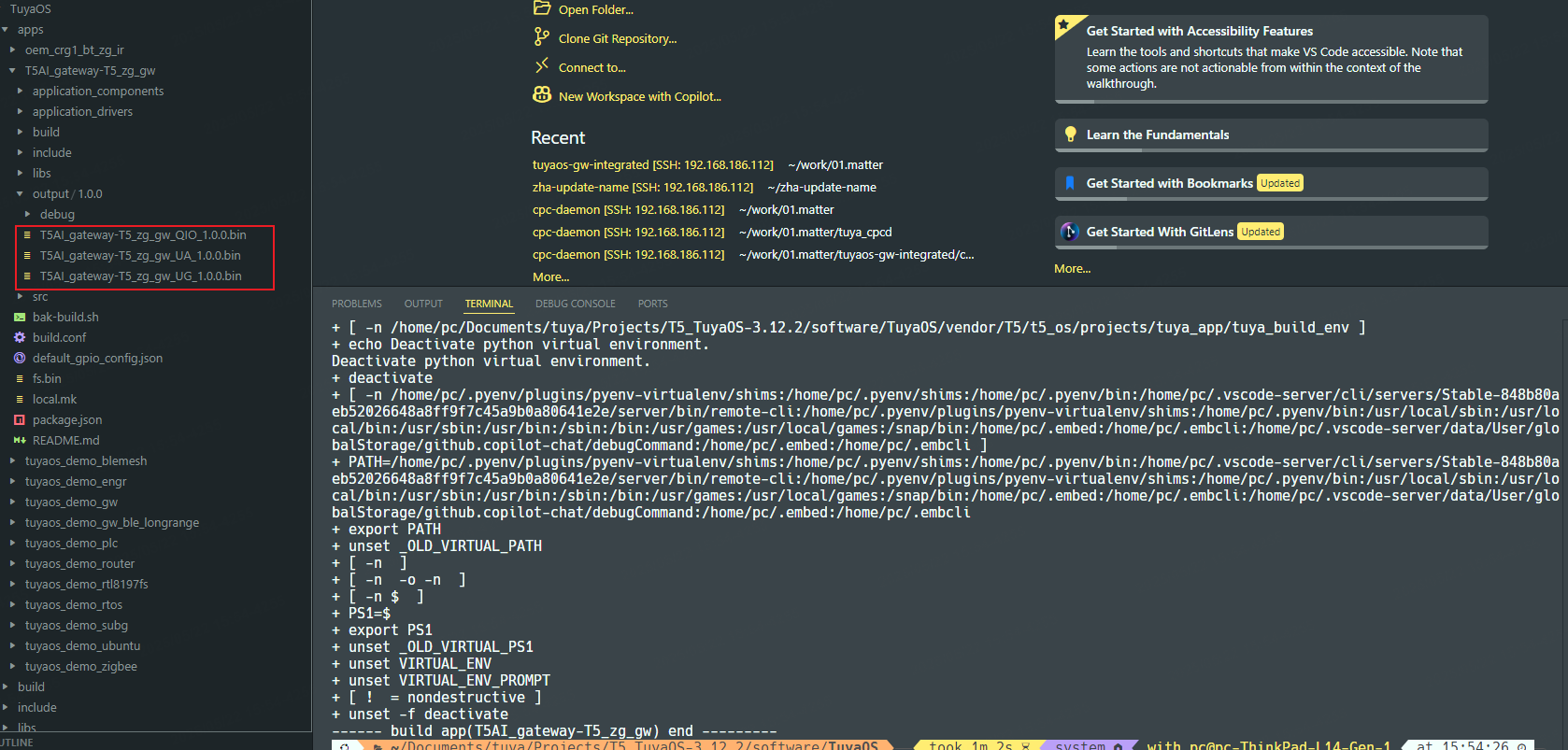

2. You can see the output in the TERMINAL window. When the TERMINAL displays a message as shown below, it means the build is successful. The build output is stored in the output directory.



Firmware description:

• T5AI_gateway-T5_zg_gw_QIO_<version>.bin: full firmware, used for flashing of the entire chip.
• T5AI_gateway-T5_zg_gw_UG_<version>.bin: OTA firmware, used for firmware updates. It can be uploaded to the Tuya Developer Platform for remote OTA updates.

Run

Run the sample application to see how it behaves.

You can flash the QIO firmware to the T5 gateway development board. For more information, see Flash Firmware. After flashing, restart the device.

The T5-AI gateway supports Bluetooth and Wi-Fi pairing. You can use the Tuya Smart app to activate the gateway. For more information about the app, see User Guide.

Upload firmware

For more information, see Update Firmware.

Serial log

Use the USB to UART converter to connect the development board, as shown below.

Log pins

Pin	Description
TX1/RX1	Log output
GND	Ground

Baud rate: 460800

Keys

The gateway development board features three buttons.

In the demo provided by Tuya, the functions of KEY1 and KEY2 have been pre-defined. You can modify their functionality by referring to the implementation in the demo.

Key	Description
RST	Power cycling. It cannot be modified.
KEY1	User key 1. It has been defined as the voice wake-up key in the demo.
KEY2	User key 2. It has been defined as the gateway function key in the demo. Press this key to enable a Zigbee device to join the network, and press and hold it to reset the gateway.

The code to define the key functions:

• TuyaOS > apps > T5AI_gateway-T5_zg_gw > include > user_key.h
• TuyaOS > apps > T5AI_gateway-T5_zg_gw > src > user_key.c

The macros to define the keys:

#define GW_RESET_KEY  TUYA_GPIO_NUM_43
#define GW_VOICE_KEY  TUYA_GPIO_NUM_42

When using the demo provided by Tuya, you must connect P43 to KEY1 and P42 to KEY2 for proper operation.

LED

The gateway development board features one LED bead.

Lighting status	Description
Blinking orange light	The gateway is pairing.
Steady on blue light	Pairing is completed.
Blinking blue light	Start pairing over Zigbee.
Red breathing light	Voice wake-up is in progress.

In the demo provided by Tuya, the LED functions have been pre-defined. You can modify the functionality by referring to the implementation in the demo.

The code to define the LED functions:

• TuyaOS > apps > T5AI_gateway-T5_zg_gw > include > user_led.h
• TuyaOS > apps > T5AI_gateway-T5_zg_gw > src > user_led.c

The macros to define the LED:

#define NET_BLED_PORT_PIN  TUYA_IO_PIN_32
#define NET_RLED_PORT_PIN  TUYA_IO_PIN_34
#define NET_GLED_PORT_PIN  TUYA_IO_PIN_36

When using the demo provided by Tuya, you must connect P32 and BLUE, P34 and RED, and P36 and GREEN for proper operation.
