Set GUI Resource Package

Overview

On the Tuya Developer Platform, the GUI workbench is a graphic resource management tool designed for smart devices with screens. With this tool, you can easily configure and update images, fonts, audio, video, and other resource content in your product.

This topic describes how to configure screen-related resources in the GUI workbench.

Procedure

Submit a resource package

First, prepare the product resource package, including image files, font libraries, audio, video, and other files, ensuring each resource type has a clearly defined ID. After packaging is completed, submit the resource package to the Tuya project manager.

After the Tuya project manager uploads the resource package in the backend, you can select and configure the resources on the Tuya Developer Platform.

Edit and configure GUI cloud capabilities

1. Log in to the Tuya Developer Platform and choose Product > Development in the left-side navigation bar.

2. On the page of Product Development, select the desired product and click Develop in the Operation column.

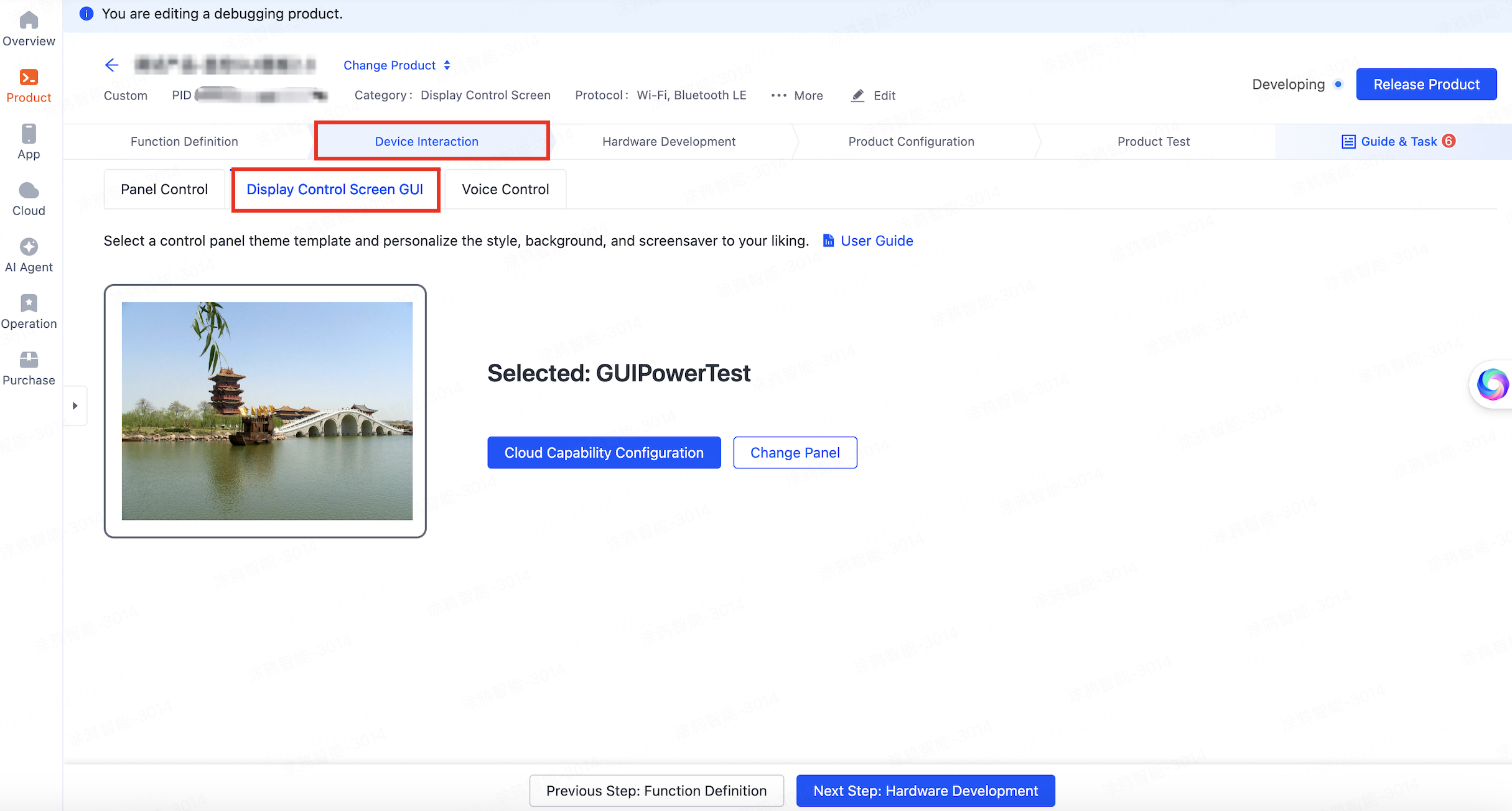

3. In the step of Device Interaction, click the Display Control Screen GUI tab.

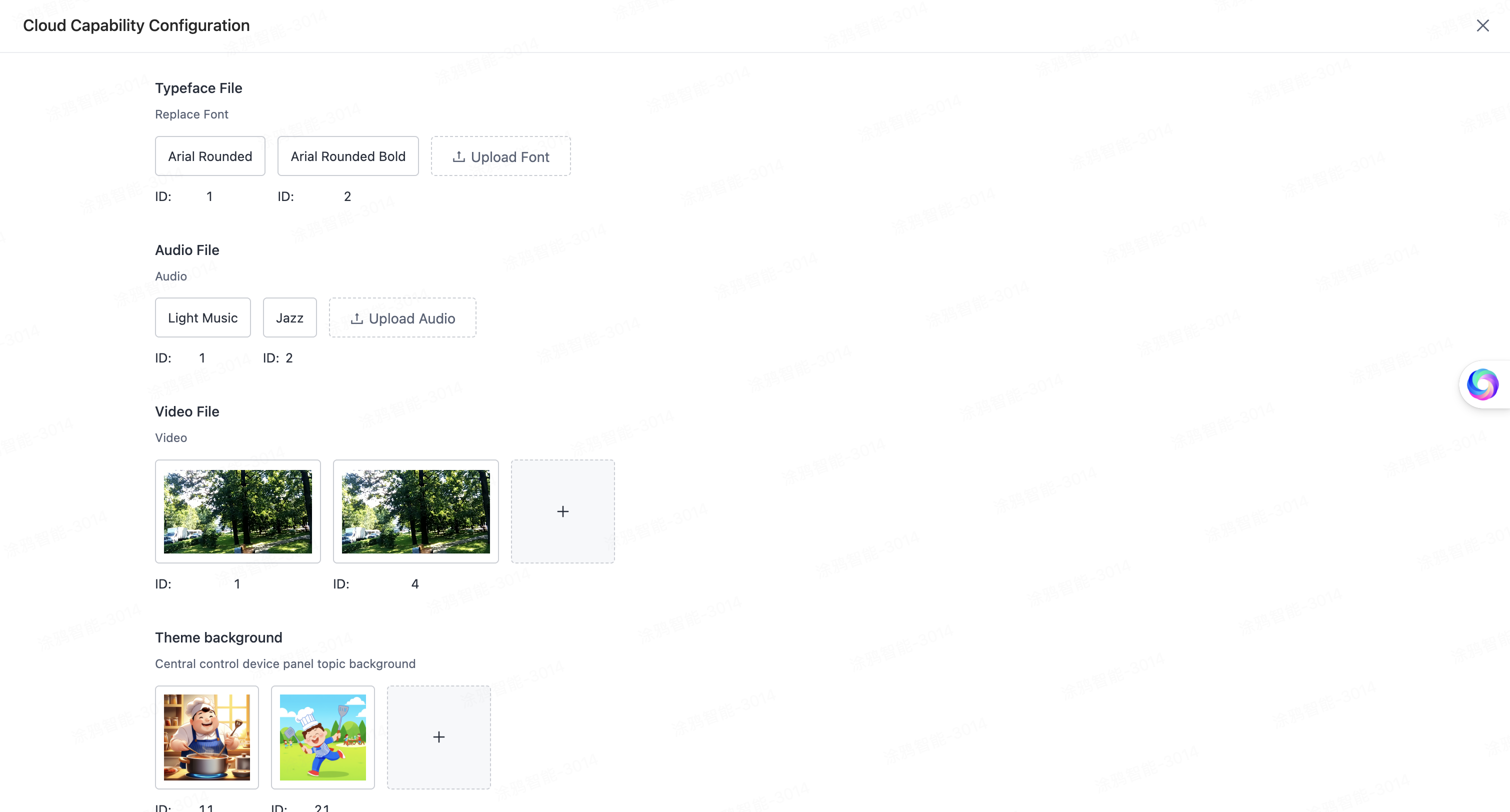

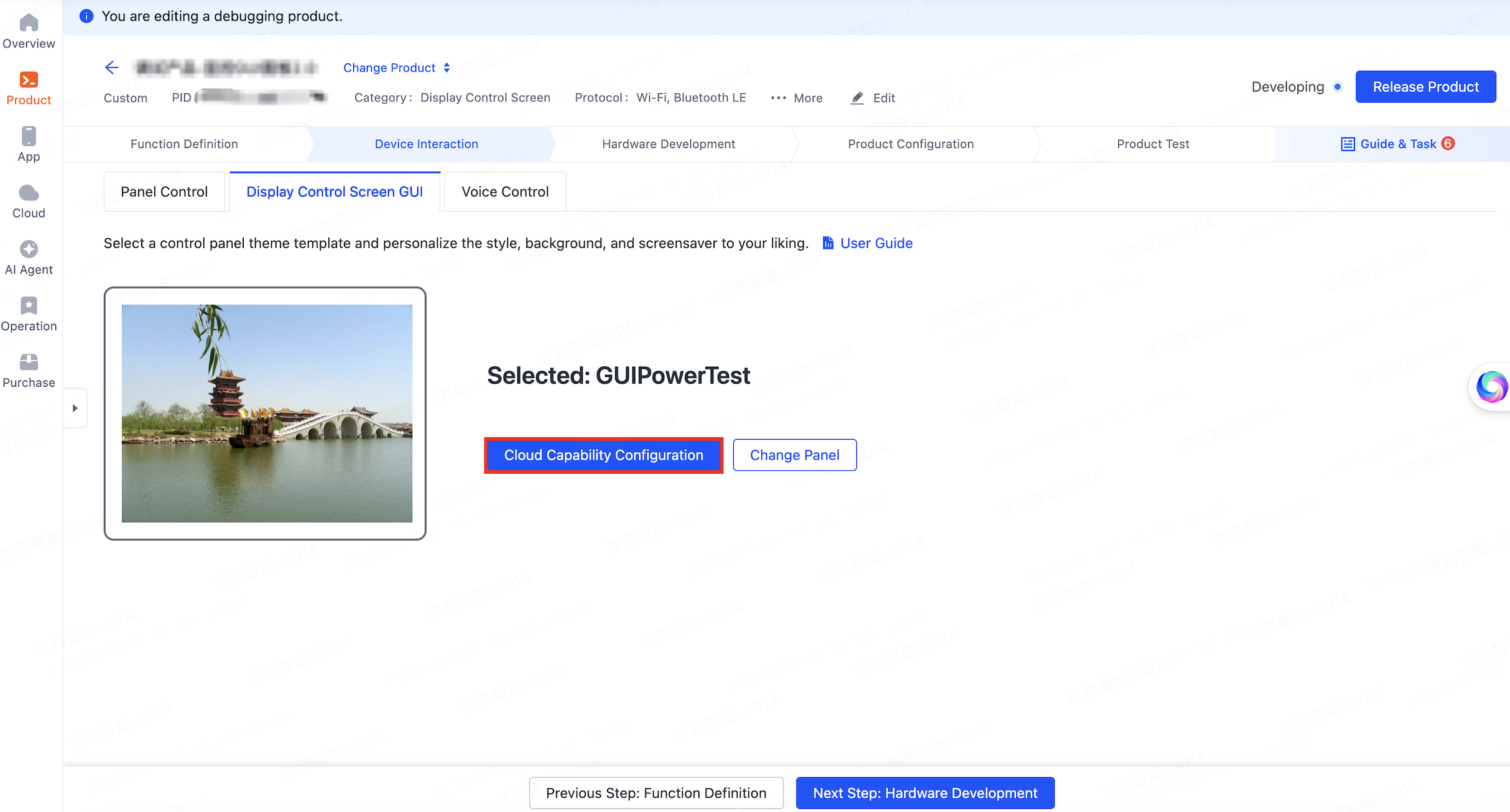

4. Click Cloud Capability Configuration. You can perform the following operations on various resource files:

   • Replace: Replace existing images, fonts, audio files, and other files.
   • Add: Add a new resource file and specify a unique ID.
   • Delete: Delete resources that are no longer used.
   • Modify ID: Modify the unique identifier of the specified resource.





5. After completing resource configuration, click Save.

Take effect

In the Advanced Functions settings, enable GUI Resource Configuration. The above resource configurations will only take effect after this advanced feature is enabled for your product.
