Smart Ebike Development Guide

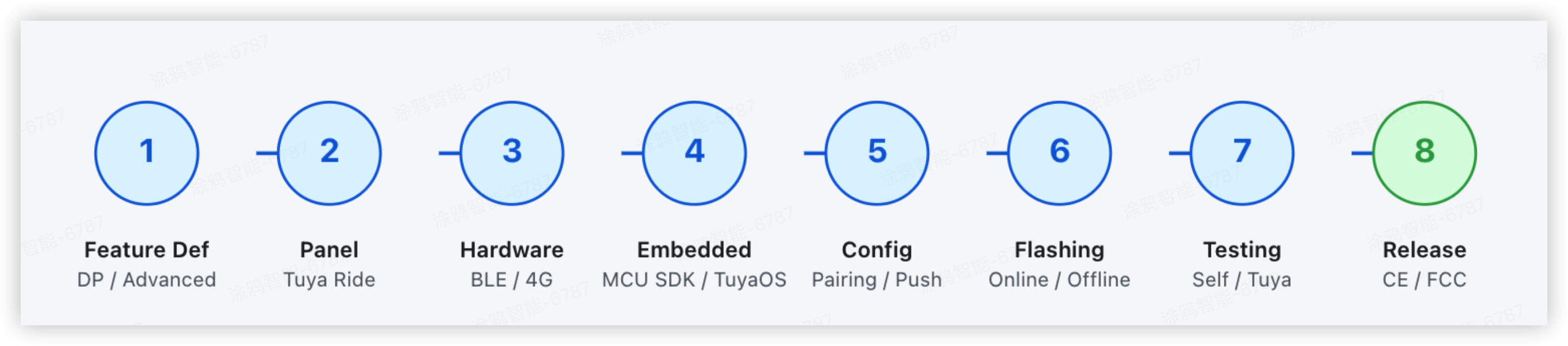

This topic describes how hardware, embedded, and app developers can develop Smart Ebike products on the Tuya Developer Platform.

Smart Ebike solutions are similar to smart electric motorcycle solutions. This topic follows the same eight-step workflow and describes the differences that are specific to Ebikes, including compact low-power hardware, signal shielding from aluminum or carbon fiber frames, European EN 15194 and North American UL 2849 certifications, data transmission-oriented with no analog control.

Before you start: confirm the Ebike product positioning

An Ebike, also called a pedal electric cycle (Pedelec), mainly targets Europe and North America. It is a bicycle with a pedal assist system (PAS), where the motor provides power as the rider pedals. Unlike electric bicycles that use full electric drive, an Ebike focuses on the combined mode of human power and electric assist.

Dimension	Ebike (Pedelec)	Electric motorcycle
Drive mode	Pedal-triggered electric assist, based on a PAS or torque sensing	Full electric drive or throttle control
Maximum assisted speed	Europe: up to 25 km/h North America: Class 1 and Class 3 up to 32 km/h	50 to 120+ km/h
Vehicle weight	15 to 30 kg	80 to 200+ kg
Frame material	Aluminum alloy or carbon fiber	Steel or aluminum alloy
Primary markets	Europe (60%+), North America (25%+)	Southeast Asia, mainland China, and South America
Certification	Europe: EN 15194 and CE marking North America: UL 2849 and Federal Communications Commission (FCC) certification	China Compulsory Certification (CCC), E-mark, and Department of Transportation (DOT) certification
Smart positioning	Data transmission first, lightweight	Full-feature control and dashboard integration
Price range	€1,500 to €8,000+	¥8,000 to ¥50,000

Core principle for Ebike smart features: keep hardware compact and low-power, and focus on data transfer. Do almost no analog control. Unlike electric motorcycles, the smart module in an Ebike works as a vehicle data black box and remote connector, not as the vehicle control unit (VCU).

How the Ebike frame affects smart hardware

Both aluminum and carbon fiber frames shield wireless signals. This is the key constraint for smart Ebike design:

• Aluminum alloy frame: the metal tube greatly attenuates Bluetooth Low Energy (Bluetooth LE), 4G, and GPS signals.
• Carbon fiber frame: the carbon fiber weave shields high-frequency signals.
• Limited installation space: Ebikes do not have seat buckets or large trim parts like electric motorcycles. Smart hardware can only be embedded in the tube or integrated into the dashboard.

Design constraint: place antennas outside the frame or close to tube openings, and strictly control the size of smart hardware.

Create a product

Prerequisites

• You have registered an account on the Tuya Developer Platform.
• Verify your organization’s identity to unlock more features (recommended).

Procedure

Open the Tuya Developer Platform and click Create on the home page. Under Standard Category, select Outdoor Travel > Travel > Smart Electric Vehicle.

After you create the product, the platform generates a product ID (PID). Use this PID for all embedded, app, and cloud debugging.

Feature definition (DP)

Tuya abstracts hardware capabilities into Data Points (DPs). DPs fall into three categories:

Type	Defined by	Application scenarios	Example
Standard features	Tuya platform	Common capabilities	Lock, unlock, battery level, speed, and positioning
Custom features	Developer	Standard features are not enough	Torque sensor data and custom assist levels
Advanced features	Platform-enabled	Cross-device and cloud services	QR code pairing, trip records, and password management

DPs support only the following six data types: Boolean (Bool), Value, Enum, Fault/Bitmap, String, and Raw.

Common Ebike DPs (excerpt)

The following table reflects actual values from the Tuya standard DP templates for smart electric vehicles. It includes the minimum usable DP set for Ebike scenarios. Select the corresponding DP IDs during development.

DP ID	Feature	Identifier (ID)	Type	Read/write	Description
1	Anti-theft switch	blelock_switch	Bool	rw	Arm or disarm the Bluetooth anti-theft mode.
3	Battery level	battery_percentage	Value	ro	Main battery level percentage, from 0 to 100.
4	GPS position	gps_position	String	ro	Latitude and longitude string (available on 4G dashboard).
5	Speed	speed	Value	ro	Unit: km/h. Range: 0 to 50.
6	Ride time	ridetime_once	Value	ro	Unit: seconds. Accumulated duration of the current ride.
11	Unit setup	unit_set	Enum	rw	km or mile, shown on the dashboard and the app.
12	Total mileage	mileage_total	Value	ro	Unit: km. Accumulated mileage that persists after power-off.
13	Estimated range	endurance_mileage	Value	ro	Estimated range based on the current battery level and assist level.
14	Current ride mileage	mileage_once	Value	ro	Unit: km. Accumulated mileage of the current ride.
18	Assist level	level	Enum	rw	eco, tour, sport, turbo. An Ebike usually supports three to five levels.
19	Find vehicle	search	Bool	rw	Trigger a beep from the app to locate the vehicle.
27	Status	status	Enum	ro	Vehicle status, such as standby, riding, charging, and fault.
29	Power system	power_system	Fault	ro	Fault Bitmap for the motor, controller, sensor and more.
30	Smart system	smart_system	Fault	ro	Fault Bitmap for the central control, communication, positioning, and more.
32	Battery system	lithium_battery_system	Fault	ro	Fault Bitmap for the battery and BMS.
45	Geofence	geofence_switch	Bool	rw	Geofence switch (available on the 4G form).
58	Battery information	battery_info	String	ro	Detailed battery fields, such as voltage, temperature, and cycle count.
—	Cadence	cadence	Value	ro	Custom DP. Unit: revolutions per minute (RPM). Cadence sensor data.
—	Human power	human_power	Value	ro	Custom DP. Unit: W. Calculated from torque sensor data.
—	Motor power	motor_power	Value	ro	Custom DP. Unit: W. Real-time motor output power.

Differences from electric motorcycles

Ebike solutions add riding data DPs, such as cadence, human_power, and motor_power. Ebike DPs mainly report read-only data. Ebikes support only a few writable control DPs, such as the anti-theft switch, assist level, and find vehicle.

Fault DP design

An Ebike splits faults into three Fault DPs by subsystem. Within each DP, each bit represents one type of fault source.

power_system                  smart_system           lithium_battery_system
bit0  Motor overheat          bit0  BLE comm loss      bit0  Low battery
bit1  Motor Hall fault        bit1  4G comm loss       bit1  Battery overheat
bit2  Controller overheat     bit2  GPS fix lost       bit2  Battery under-voltage
bit3  Torque sensor fault     bit3  OTA interrupted    bit3  Battery over-voltage
bit4  Speed sensor fault      bit4  Cloud auth fail    bit4  Cell voltage delta
bit5  Cadence sensor fault    ...                      bit5  BMS comms fault
...                                                    ...

When to use custom DPs

Add a custom DP when the standard DP table does not cover a capability you need. For example:

• Use a RAW DP and define your own byte protocol for raw cell voltages from a custom BMS.
• Use a Bool DP named climb_mode_enable for a brand-specific climb mode switch.
• Use Value DPs for riding data, such as cadence, torque, and power.

Advanced features (enable as needed)

The following features are often used on Ebikes:

• QR code pairing: users scan the QR code on the vehicle with the app to bind the device.
• Trip records: the cloud stores ride routes, and the app replays them.
• Password management: users can unlock the vehicle with a local four-to-six-digit password.
• Bluetooth keepalive: the vehicle unlocks when the phone is close and locks when the phone moves away.
• Direct-to-cloud connection: a 4G version connects to the cloud directly without a phone.
• Geofence: anti-theft alerts (available on the 4G form).

Configure the panel

Select a ride app

Smart electric vehicles and Ebikes must use Tuya’s dedicated ride apps, not the SmartLife app. Select the app by sales region:

Sales territory	Control app	App store keywords
Mainland China	涂鸦出行	涂鸦出行
Overseas (Europe and North America)	Tuya Ride	Tuya Ride

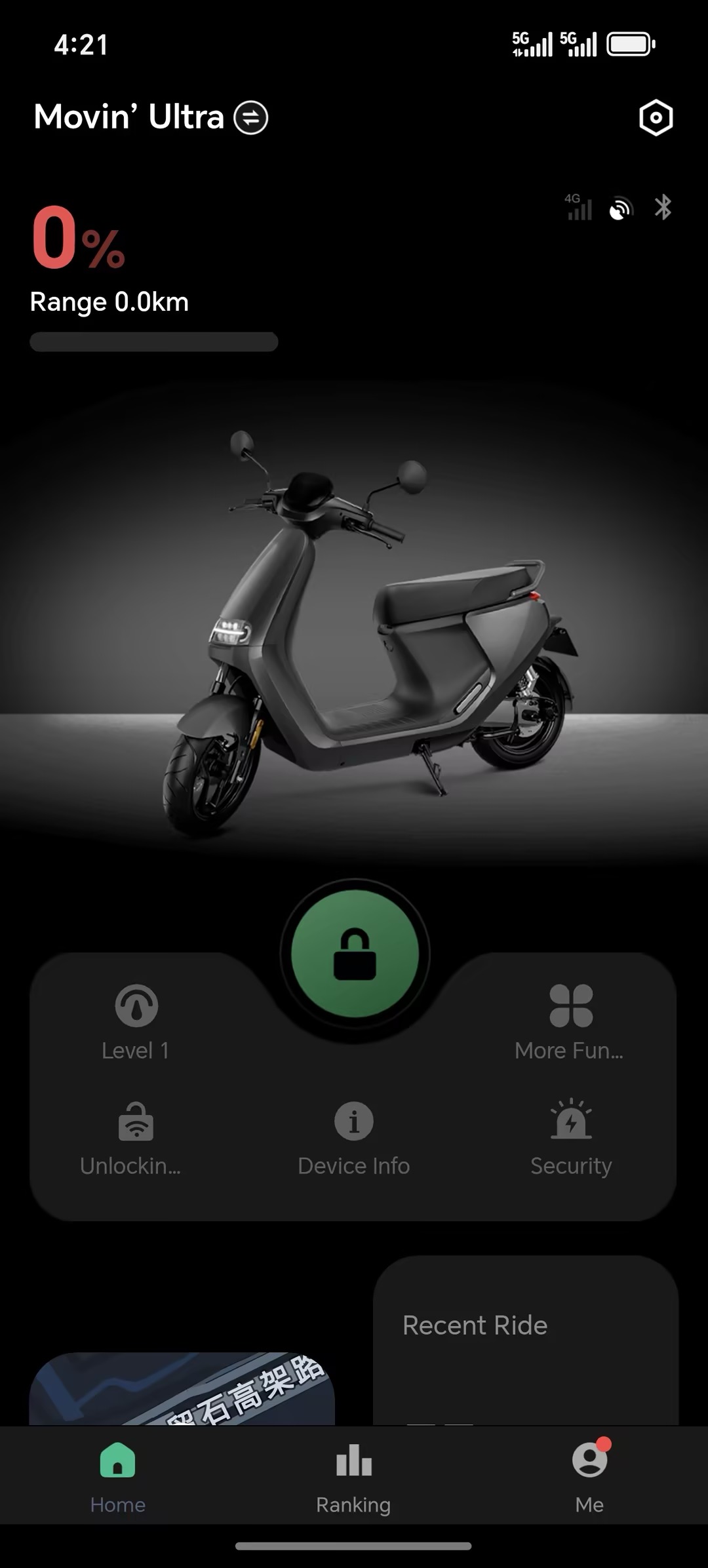

Electric vehicle all-in-one panel

涂鸦出行 or Tuya Ride includes an electric vehicle public panel. Most Ebike customers can use it out of the box without customization.

The all-in-one panel covers the following capabilities:

• Home: vehicle status card, including battery level, range, assist level, and communication signal.
• Control: one-tap lock and unlock, assist level switching, and find vehicle.
• Settings: unlock methods, speed limit, anti-theft sensitivity, and password management.
• Services: inspection report, route playback, and geofence.

Role split between phone and dashboard

Ebike smart interactions differ from electric motorcycle interactions. Ebikes ride at a relatively low speed, usually up to 25 to 32 km/h. Users can check the phone when parked, but the dashboard remains the primary information entry while riding.

• Dashboard (while riding): battery, speed, assist level, mileage, fault alerts.
• Mobile app (not riding): remote vehicle search, remote locking, riding data analysis, trip replay, over-the-air (OTA) updates, and parameter settings.

Ebike scenario characteristics: compared with an electric motorcycle, the Ebike dashboard is more streamlined (usually a segment LCD or a small TFT), so the mobile app takes on more data dashboard and configuration tasks.

Design hardware

Tuya offers two hardware integration paths for Ebikes. Choose one based on the compute capacity of your main controller and your cost target:

Solution	Microcontroller	Module	Best for	Difficulty
MCU SDK	Your MCU	Tuya Bluetooth or 4G module	The mainstream option, used most often	Low
TuyaOS	Module runs the business logic	TuyaOS-compatible module	Sufficient resources and cross-platform goals	Medium

Select a communication protocol

Scenario	Recommendation
Standard Ebike, user mainly views data on the phone	Bluetooth LE (preferred)
Shared bicycles or rental fleets	Bluetooth + 4G dual mode
High-end Ebike that requires anti-theft tracking	Bluetooth + 4G dual mode

Bluetooth serves as the primary communication protocol for Ebikes for the following reasons:

• It consumes minimal power, ensuring no impact on battery life.
• It does not require SIM cards or data plans, which removes overseas operating costs.
• It supports passive unlock when you enable Tuya’s advanced Bluetooth keepalive capability.

Select a hardware form factor

By feature granularity and cost, Ebike smart features come in three typical form factors. All three form factors use the BLE + X hardware architecture:

Form factor	Communication capabilities	Typical features	Advantages	Disadvantages	Recommendation
Bluetooth dashboard	Bluetooth LE only	Riding data display, Bluetooth OTA, riding data collection, and Bluetooth anti-theft.	Quick development, simple and mature hardware, and no SIM card or data. Bluetooth can integrate into small dashboards.	No remote capability, only short-range access.	Recommendation
4G smart T-box	Bluetooth LE, 4G, and GPS	Remote location, remote vehicle data view, and remote operations.	Supports remote operations and location through 4G, Bluetooth LE, and GPS.	Aluminum or carbon fiber frames shield signals. The T-box usually fits only inside a frame tube, which weakens signals.	Standard
4G dashboard	Integrated Bluetooth LE, 4G, and GPS	Dashboard display and all remote capabilities (the most integrated option)	Integrates 4G, Bluetooth LE, and GPS into the dashboard. It does not add vehicle parts and provides much better antenna signals than a T-box.	The dashboard volume and cost increase slightly.	Recommendation

Selection recommendation:

• Most Ebikes use a Bluetooth dashboard: this form factor supports fast development. The hardware uses only Bluetooth, which makes it simple and mature. It does not involve SIM card data traffic. A compact dashboard can still integrate Bluetooth features, support Bluetooth OTA updates, and collect riding data.
• Need remote capability: 4G dashboard. Integrates 4G, Bluetooth, and GPS into the dashboard, adding no extra parts to the vehicle. The system is simple and highly integrated. The antenna signal is much better than that of a T-box.
• 4G T-box is not the first choice. Both aluminum and carbon fiber Ebike frames shield the signal. An Ebike has no room for a 4G T-box and usually has to embed it in a tube, where the signal is relatively poor.

BLE + X hardware architecture

The BLE+X architecture uses Bluetooth LE as the system hub. The module connects to the vehicle MCU and the 4G Category 1 (Cat. 1) module through Universal Asynchronous Receiver/Transmitter (UART), when the product needs 4G. Bluetooth LE handles short-range control, low-power keep-alive, and power management. The 4G module provides remote capabilities. The MCU handles vehicle service logic. Tuya recommends that you connect an independent GPS module directly to the MCU through UART. The MCU parses National Marine Electronics Association (NMEA) data and reports results as needed.

Key difference for Ebikes: smart hardware must be compact and low-power. It should mainly provide data transfer and almost no analog control.

Bluetooth dashboard architecture (recommended)

            ┌──────────────┐
            │ BLE module   │── 📱 Direct BLE ── Tuya Ride app
            │ (BF6H-M)     │
            │ System hub   │
            │  + Dashboard │
            └───────┬──────┘
                   │ UART
                   │
            ┌──────┴─────────────┐
            │    MCU             │
            │  Vehicle controller│
            │ (PAS system)       │
            └────────────────────┘

The Bluetooth dashboard form is the simplest. The Bluetooth LE module is integrated on the dashboard PCB. It communicates with the vehicle controller over UART, obtains riding data (speed, cadence, battery level, mileage, and so on), and syncs the data to the app over Bluetooth LE. It supports Bluetooth OTA upgrades for the dashboard firmware.

4G dashboard architecture (recommended)

                           ┌─────────────────┐
                  ┌──UART──┤ 4G CAT.1 module │── ✈ Cloud
                  │        └─────────────────┘
            ┌─────┴─────────────┐
            │ BLE module        │── 📱 Direct BLE ── Tuya Ride app
            │ (BF6H-M)          │
            │ System hub        │
            │ + Power management│
            └─────┬─────────────┘
                  │ UART
                  │
            ┌─────┴─────────────┐         ┌──────────────────────┐
            │   MCU             │── UART──┤ Standalone GPS module│── Satellite
            │ Vehicle controller│         │ GB600/610 and more   │
            └───────────────────┘         └──────────────────────┘

The 4G dashboard integrates all communication modules (Bluetooth LE + 4G + GPS) on the dashboard PCB. The antennas are exposed on the dashboard housing to avoid shielding by the frame metal or carbon fiber.

Key pins of the Bluetooth module (BF6H-M)

Pin (silk screen)	I/O	Direction	Feature
TXD0 / RXD0	PD7 to PD6	OUT / IN	UART communication with the 4G module (used in the 4G dashboard form)
TXD1 / RXD1	PA3 to PA2	OUT / IN	UART with MCU.
PWM1	PA7	IN	Cellular module wakes up Bluetooth (low level ≥ 60 ms)
PWM0	PA6	IN	Cellular presence detect (active low)
PWM5	PA5	OUT	Bluetooth controls 4G power (active high to power on)
PA1	PA1	OUT	Bluetooth wakes up the MCU (drive high ≥ 20 ms before sending data)
PA0	PA0	IN	MCU wakes up Bluetooth (drive high ≥ 50 ms before sending data)

Key handshake timing

• Cellular module wakes Bluetooth: before sending UART data, the 4G module outputs a low level on PWM1 for at least 60 ms to make sure Bluetooth LE exits sleep.
• Bluetooth wakes MCU: pull up PA1 for at least 20 ms before sending UART data. The MCU wakes through an I/O interrupt.
• MCU wakes Bluetooth: pull up PA0 for at least 50 ms before sending UART data to prevent byte loss.
• Return to low after data transmission: after data transfer ends, pull the wake line low to enter low-power state.

Level matching

The UART between the Bluetooth module at 3.3 V and the 4G module at 1.8 V must use level shifting to prevent port damage and unstable communication. Tuya recommends two solutions:

Solution	Component	Strength	Best for
Bidirectional level translator	TXS010X or SN74LVC series	Few components, strong anti-interference capability, and automatic bidirectional translation	Mass production
Discrete NPN inverter	S8050 with 10 KΩ and 1 KΩ pull-up resistors	Lowest cost	Minimal or low-cost design

Standalone GPS module integration (4G dashboard form)

Connect the standalone GPS module to the vehicle MCU through UART. The MCU parses NMEA messages and reports location, speed, satellite count, and other results as DPs.

Recommended GPS module	Manufacturer	Frequency bands	Application scenarios
GB600	Tuya	L1 single frequency, five-system multimode: GPS, BDS, Galileo, QZSS, and GLONASS	Preferred for entry-level and low-cost mass production. Uses the Beken BK1661 SoC and offers a compact and low-power design.
GB610	Tuya	L1 + L5 dual-band (multi-mode and multi-band joint positioning)	High-precision scenarios. Beken BK1662 SoC and 120 tracking channels.

Wiring notes:

• MCU UART to GPS UART: default baud rate 9,600 or 115,200. Connect RX and TX.
• Power supply: GPS modules usually use a 3.3 V power supply. The MCU controls the switch through a GPIO or an LDO enable pin, and powers off the GPS during sleep.
• Antenna: aluminum and carbon fiber Ebike frames cause severe shielding. Place the GPS antenna outside the top of the dashboard housing or at the top of the handlebar stem, away from metal shields.
• Level: the MCU and GPS module usually use 3.3 V, so no level shifting is required.

Tuya recommended modules

Tuya has verified the following modules in mobility scenarios. You can search all datasheets and SDK documents in the Tuya Developer Platform.

Bluetooth module

Model	Sales territory	Frequency bands	Size	Resource link
BF6H-M	Global	2.4 GHz ISM band	19×15.5×2.5 mm	BF6H-M module datasheet MCU SDK

4G modules (choose by sales region, used in the 4G dashboard form)

Model	Sales territory	Frequency bands	Size	Resource link
L511E-Y6E	Europe, Southeast Asia, Africa, Australia, Middle East, Hong Kong, Macau, and Taiwan	LTE FDD B1/3/5/7/8/20/28, TDD B38/40/41	17.7×15.8×2.3 mm	L511(C/E/A/J)-Y6(E) module datasheet MCU SDK
L511A	North America	LTE FDD B2/4/5/12/13/14*/66/71	Same as above	Same as the L511 series

Selection rule: use BF6H-M for Bluetooth. It supports global deployment. Select the 4G module by target market. Use L511E-Y6E for Europe and L511A for North America. Most Ebike export scenarios target Europe and North America, and these two modules cover most requirements.

Embedded development

MCU SDK path (recommended)

Workflow:

Your MCU                    Tuya Bluetooth module              Phone app / Cloud
┌─────────────────────┐ UART  ┌───────────────────────┐ BLE/4G  ┌──────────────┐
│  Vehicle controller │<----->│ Tuya standard protocol│<------> │ Tuya Ride    │
│  + MCU SDK          │ TX/RX │(Universal)            │         │  + Tuya cloud│
└─────────────────────┘       └───────────────────────┘         └──────────────┘

The MCU SDK helps you implement:

• Frame encapsulation and parsing. You only handle DP sending and receiving, not serial bytes.
• Heartbeat, state machine, and reconnection.
• OTA reception and verification.
• Time synchronization and pairing state machine.

Implement only the following two callbacks:

• dp_download_handle(): handle control DPs sent from the app, such as assist level switching.
• dp_report(): report current status DPs, such as speed, battery level, and cadence.

TuyaOS path

The module itself runs the TuyaOS kernel, and the vehicle MCU integrates through a simple interface. The benefit is that one set of business code can be reused across chip platforms and protocols (Bluetooth or cellular).

Use TuyaOS when:

• One vehicle model needs both a Bluetooth version and a Bluetooth + 4G version.
• The vehicle MCU is short on resources, and you want the module to run the business logic.
• You want to use TuyaOS components directly, such as OTA, KV storage, and RPC.

Embedded development rules

• DP reporting frequency: report high-frequency DPs, such as speed and cadence, at 1 Hz or higher. Report low-frequency DPs, such as battery level and mileage, only when values change. Avoid unnecessary data traffic.
• OTA chunks: support resumable transfer for Bluetooth OTA. For major 4G OTA versions, push updates when the device is charging.
• Fault reporting: report faults with Fault DPs and Bitmaps. Do not create a separate Bool DP for each fault.
• Power loss protection: write cumulative values, such as mileage and ride records, to flash memory so power loss does not erase them.
• Low-power design: keep Ebike standby current at 50 μA or less for the entire smart module to prevent battery drain during long-term parking.
• European compliance: report the assist cut-off state at the 25 km/h speed limit through a DP to support traceability.

Configure the product

Go to Product Configuration on the Tuya Developer Platform. Select and configure the following items as needed:

Item	Ebike focus
Firmware update	Support Bluetooth OTA. Add cellular OTA for 4G versions.
Multilingual support	Required: Chinese and English
Pairing information	Select Bluetooth LE for pairing.
Device information push	Send anti-theft alerts, low battery alerts, and geofence breach alerts through push channels.
Scene linkage	Rarely used on Ebikes. You can leave it disabled at first.
Shortcut switches	Add one-tap lock and find vehicle to the app homepage.
Product manual	Use the electronic manual on the platform.

Pairing example (Bluetooth)

Ebikes do not use Wi-Fi, so the only pairing channel is Bluetooth. Tuya recommends the following two Bluetooth LE pairing methods:

Solution	Trigger method	User operation	Application scenarios
A: Bluetooth-triggered pairing	The user presses and holds the dashboard button for 5 seconds to enter broadcast state.	The app discovers the device automatically through Add Device.	Entry-level Ebikes
B: Bluetooth QR code pairing	A unique QR code (with PID, MAC, and token) is pre-printed on the vehicle.	Tap Scan in the app to bind.	Mid-range and high-end Ebikes that focus on out-of-box experience.

Solution comparison

Dimension	A: Triggered pairing	B: QR code pairing
User experience	Average: users must learn the trigger action.	Smooth. Scan to bind.
Mispairing prevention	Weak: nearby vehicles broadcast under the same name.	Strong: the QR code locks the target device.
Production process	Simple: no dedicated code needed.	Complex: generate and print the QR code.
Recommended group	Entry-level or Bluetooth dashboard form	4G dashboard or high-end vehicle

Recommendation: for high-end complete vehicle shipments, use solution B first. Keep solution A as a fallback.

Push examples

Trigger	Push content
Unusual movement detected when the vehicle is stationary	"Your bike detected unusual movement."
Battery at or below 15%	"Low battery — please charge soon."
Outside the geofence	"Your bike has left the safe zone."
OTA complete	"Firmware updated successfully."

Flash the firmware and authorize the module

Flash the firmware and the license to the device, or the device cannot connect to the cloud.

For the complete solution, flashing tool downloads, pin wiring for different modules, and production test processes, see Flashing and Authorization.

Three official Tuya solutions

Official solution	Best for	Description
Flashing and authorization combined	Tuya standard module	Ship after Tuya flashes the firmware. Or use the Tuya Cloud Module Burning Authorization tool yourself.
Flashing and authorization separated	Debug stage or non-Tuya standard modules	Authorize only. Flash the firmware with the chip vendor’s tool.
Production test integration	A complete in-house production system	Connect to your production line through the Tuya standard interface and run flashing and authorization in-house.

For solution selection and the production test interface specification, see Flashing and Authorization.

Practical options for Ebike production

Option	Best for	Official solution	Description
Online flashing	Sample stage	Flashing and authorization combined	Device connects directly to Tuya cloud for authorization.
Offline flashing	Factory mass production	Flashing and authorization combined	Send the authorization package in advance.
End-of-line authorization	One-time write during end-of-line vehicle testing	Separate flashing and authorization, or production test integration	Recommended. Merge into the end-of-line station workflow.
MCU self-flashing	MCU runs the authorization process	Production test integration	MCU SDK solution only.

Production recommendations

• Use one license per PID. Do not reuse codes.
• Add power-on and power-off test + Bluetooth connection test to the end-of-line test items to prevent missed flashing.
• Different modules use different flashing pins, writers, and drivers. See the corresponding sections in Flashing and Authorization.

Test the product

Before release, prepare a test report through one of the following methods:

• Self-test: download test cases from Testing Service, run the tests, and upload the report.
• Tuya Cloud Test app: run test cases directly with the cloud test app.
• Tuya test service: pay the Tuya test team to run tests for you.

Additional focus items for Ebike testing:

• Bluetooth signal coverage inside aluminum or carbon fiber frames, with stable connection at 5 m or more recommended.
• Bluetooth LE connection stability under riding vibration.
• Battery DP reporting accuracy at extreme temperatures from -10°C to 45°C.
• Recovery after power-off during OTA, including resumable transfer.
• Measured low-power standby current, with 50 μA or less for the whole module.
• Consistency of assist cut-off at the EN 15194 speed limit.

Release and certify the product

Release

After the test report passes, release the product on the Tuya Developer Platform. After release, use the PID for mass production authorization.

Required certifications

Ebikes mainly target Europe and North America. The certification requirements are as follows.

Target	Europe	North America
Vehicle	EN 15194:2017+A1:2023 (Pedelec safety and performance) + CE marking	UL 2849 (electric bicycle electrical system safety)
Bluetooth module	CE-RED (Radio Equipment Directive 2014/53/EU)	FCC Part 15
4G module	CE-RED	FCC Part 22/24/27
Battery	EN 62133-2 (lithium battery safety) + UN38.3 (transport)	UL 2271 (light electric vehicle battery) + UN38.3
Charger	EN 60335-2-29 + CE	UL 1310/UL 60950
EMC	EN 301 489 (wireless EMC)	FCC Part 15B

Certification description:

• EN 15194:2017+A1:2023: mandatory European standard for Pedelec. It covers mechanical safety, electrical safety, assist performance, charging system safety, and other requirements. The 2023 amendment adds battery system safety and functional safety requirements.
• UL 2849: the North American electrical system safety standard for electric bicycles. It covers safety assessment of the battery, motor, controller, charger, and wiring.
• CE marking: the mandatory marking for EU market access. For Ebike, it covers the Machinery Directive (2006/42/EC), EMC Directive (2014/30/EU), and RED (when wireless modules are present).
• FCC: all devices with wireless communication must pass FCC certification for the North American market.

Pre-release checklist

• EN 15194 and UL 2849 complete vehicle certifications passed.
• CE and FCC wireless module certifications obtained.
• Battery certifications completed, including EN 62133, UL 2271, and UN38.3.
• Multilingual settings configured, with at least English and the target market’s local language.
• Bluetooth OTA resumable transfer verified.
• Low-power standby current of 50 μA or less measured.
• Release region matched with 4G frequency bands, when applicable.

Appendix: Ebike and electric motorcycle solution differences

Dimension	Smart Ebike	Smart electric motorcycle
Drive mode	PAS	Full electric drive
Speed range	≤ 25 to 32 km/h	50 to 120+ km/h
Primary markets	Europe and North America	Southeast Asia, mainland China, and South America
Frame material	Aluminum alloy or carbon fiber, with signal shielding	Steel or aluminum alloy
Smart hardware positioning	Mainly data transfer, no analog control	Full-feature control and dashboard integration
Recommended hardware form factor	Bluetooth dashboard (preferred) or 4G dashboard	Bluetooth anti-theft device, 4G central controller, or 4G dashboard
Power consumption requirement	Very low (50 μA or lower standby)	Low (200 μA or lower standby)
Dashboard type	Segment LCD or small TFT	TFT color screen with rich features
Pairing protocol	Mainly Bluetooth LE	Mainly Bluetooth LE, with optional 4G
Certification	EN 15194 + CE/UL 2849 + FCC	China Compulsory Certification (CCC), E-mark, and Department of Transportation (DOT) certification
Typical DP count	20 to 40	50 to 100
Price range	€1,500 to €8,000+	¥8,000 to ¥50,000
Language	Mainly English, German, French, Dutch, and Italian	Mainly Chinese, with multilingual support for overseas markets

FAQ

Should Ebikes and electric motorcycles use the same PID or separate PIDs?

We recommend that you create separate PIDs. Ebikes and electric motorcycles differ significantly in DP sets, panel layout, and certification, so sharing a PID causes feature redundancy and maintenance difficulty.

How do I choose between the Bluetooth dashboard and the 4G dashboard?

Use the Bluetooth dashboard for most Ebikes. It supports fast development, uses simple and mature hardware, and avoids SIM card operating costs. Use the 4G dashboard when your product requires remote anti-theft tracking, fleet management, or similar capabilities. The 4G dashboard integrates 4G, Bluetooth LE, and GPS into the dashboard, and its signal quality is much better than a T-box.

How do I solve signal shielding from aluminum or carbon fiber frames?

• Expose the antenna on the dashboard housing or at the top of the handlebar stem.
• Avoid wrapping the module entirely inside a metal tube.
• If you must embed the module in a tube, open a hole in the tube wall or use a non-metallic cover for RF transparency.
• The 4G dashboard form factor outperforms the T-box form factor because the dashboard antenna location is better.

Which app fits overseas vehicles?

Use Tuya Ride for overseas sales. Use 涂鸦出行 for the Chinese mainland. Both apps provide the same panel capabilities. Select the app by sales region.

Development focus: multi-language (German, French, Dutch, Italian, Spanish), regional compliance (GDPR), and Bluetooth LE pairing first.

What special considerations apply to Ebike OTA?

The Bluetooth dashboard form can only use Bluetooth LE OTA, which has a relatively low transfer rate (about 4 to 8 KB/s). We recommend that you keep the firmware package under 200 KB and support resumable transfer. The 4G dashboard form can use cellular OTA for major version updates, which we recommend you push during charging.
