Tuya Ride Development Guide

This guide helps hardware, embedded, app, and after-sales debugging developers troubleshoot common issues during the development and launch of Tuya mobility products, including electric bicycles, electric motorcycles, and scooters. It covers data point (DP) reporting, debugging tools, Human Interface Device (HID) proximity unlock, vehicle inspection, trip records and navigation, map selection, notification push, pairing and connection troubleshooting. The capabilities are available on the Tuya Developer Platform and the public app Tuya Ride (涂鸦出行).

Notes

• In this guide, dpXX indicates the DP ID of a device. The feature name and identifier depend on the DP list configured on the platform.
• Bluetooth vehicle means Bluetooth LE only. 4G vehicle means cellular (Cat.1 or NB) only. BLE+X means a dual-mode architecture in which Bluetooth LE is the system hub, and the cellular module is managed by the Bluetooth LE module.
• If you cannot locate an issue on the platform backend, or if the DP list or tool entry mentioned in this guide does not appear on your product configuration page, contact your Tuya project contact or submit a service ticket.
• For the reference documents, search by title in the Tuya Developer Documentation Center.

DP reporting rules

Recommended reporting rules:

• Sync all DPs during pairing and reconnection queries: Ensure the cloud gets a full snapshot on the first sync.

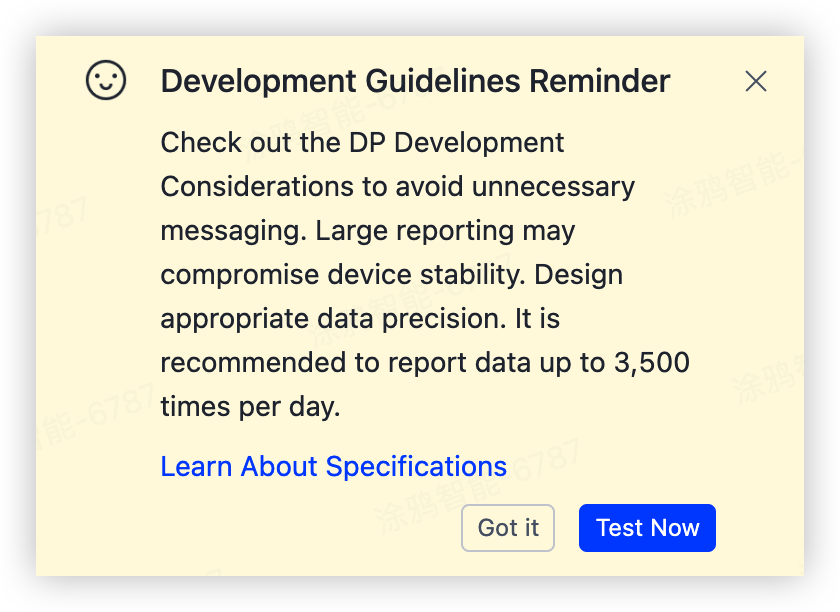

• Pack DPs reported in periodic loops: The cloud bills by DP report count. Packed reporting greatly reduces report count and cellular data traffic.

• Report on changes in other scenarios: Do not report a DP again when its value does not change.

• Do not report DPs that do not need cloud records: Examples include riding time and vehicle speed, which only need local display.

• Pack and report trip-related DPs on BLE+X devices: Tuya recommends reporting every 5 to 10 seconds to avoid a single-point report storm.

Debugging tools

Module Debugging Assistant

The Module Debugging Assistant from Tuya enables a PC to communicate with a Bluetooth or 4G module via a serial port. It is the first tool to use during the embedded integration phase. The tool provides two modes:

• Module simulation: The PC acts as the module to verify how the MCU code behaves after it receives protocol frames (suitable for the MCU general integration solution).

• MCU simulation: The PC acts as the MCU to verify the module firmware behavior over the serial port and the pairing flow (suitable for module firmware or TuyaOS joint debugging).

Download

Go to the Tuya Developer Platform. Go to Product Development > Hardware Development > Download Documents, and download the PC debugging tool package. The usage instructions are bundled in the package.

Usage

After you open the debugging assistant, follow these steps:

1. Click Switch Protocol to switch between MCU Simulation and Module Simulation, and then complete the corresponding configuration.

2. Under Settings, complete the following configuration:

   • Serial port configuration: Select Serial Port Name and Baud Rate.
   • DP file: Import the DP debugging file.
   • Select the working mode:

     Solution	Working mode
     General integration module (MCU SDK)	MCU and module cooperate
     TuyaOS solution (the module runs the application logic directly)	Module self-processing

3. Under Operations, send serial commands by protocol field to verify the module response to DP and pairing commands.

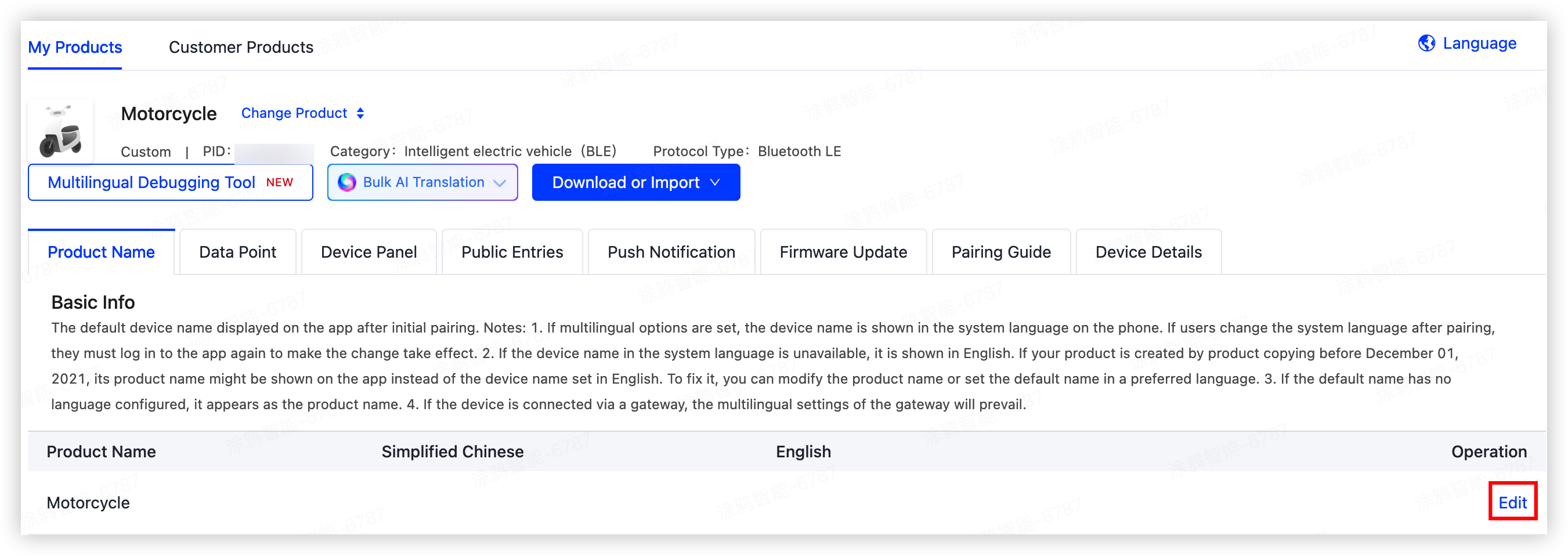

Multilingual configuration

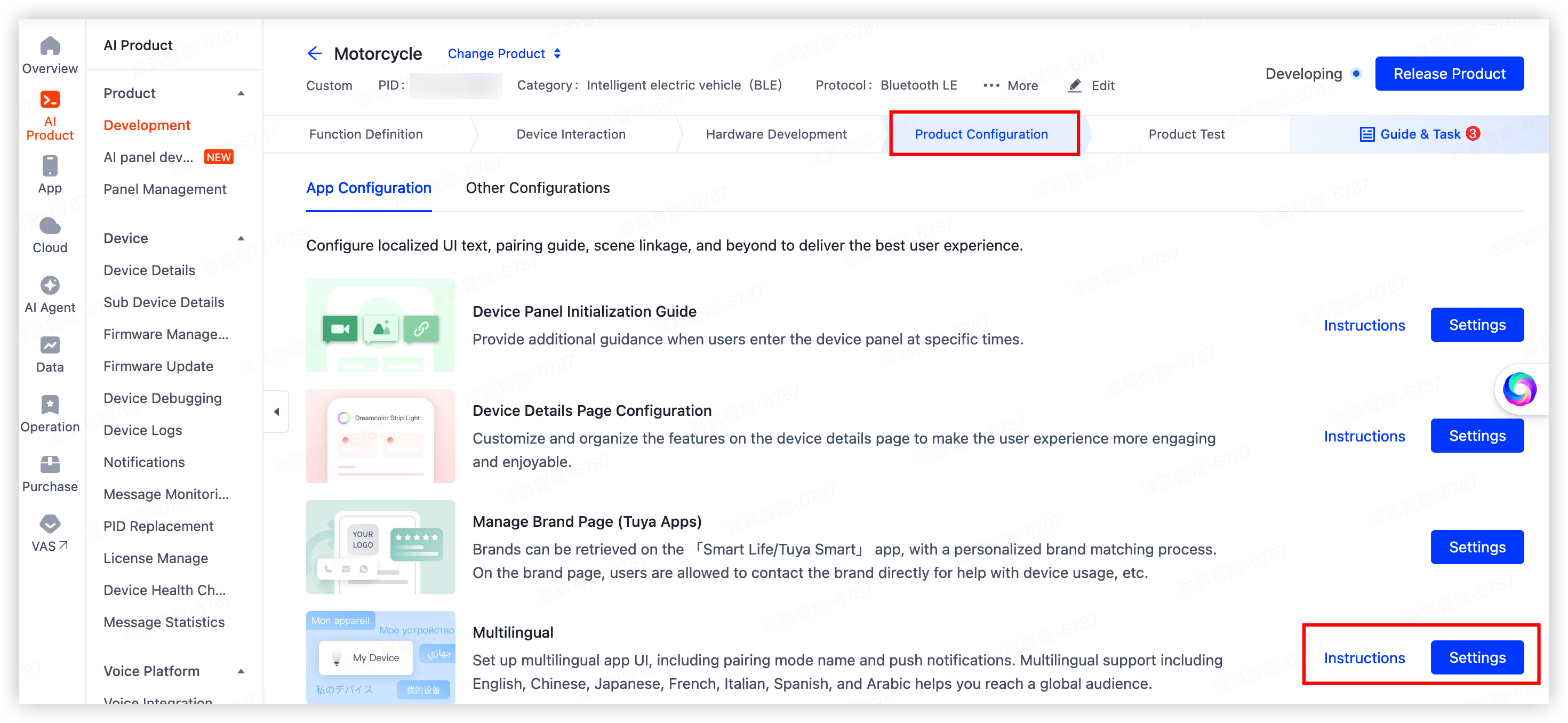

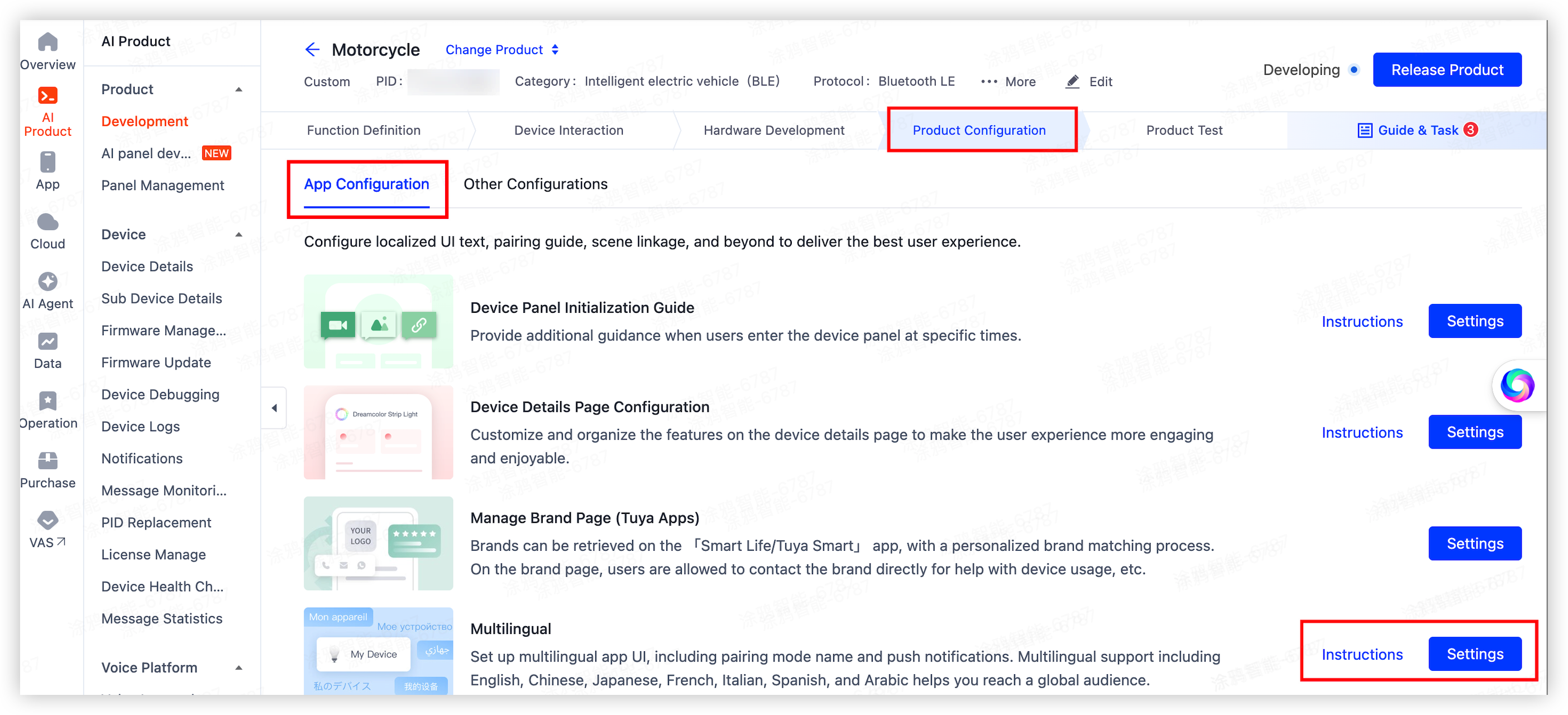

The app text, panel prompts, and fault alerts for Tuya mobility products come from the platform multilingual configuration. If you do not configure multilingual entries, the app shows blank text or raw keys. Follow the figures below to complete the configuration. For more information, see Multi-Language Management.

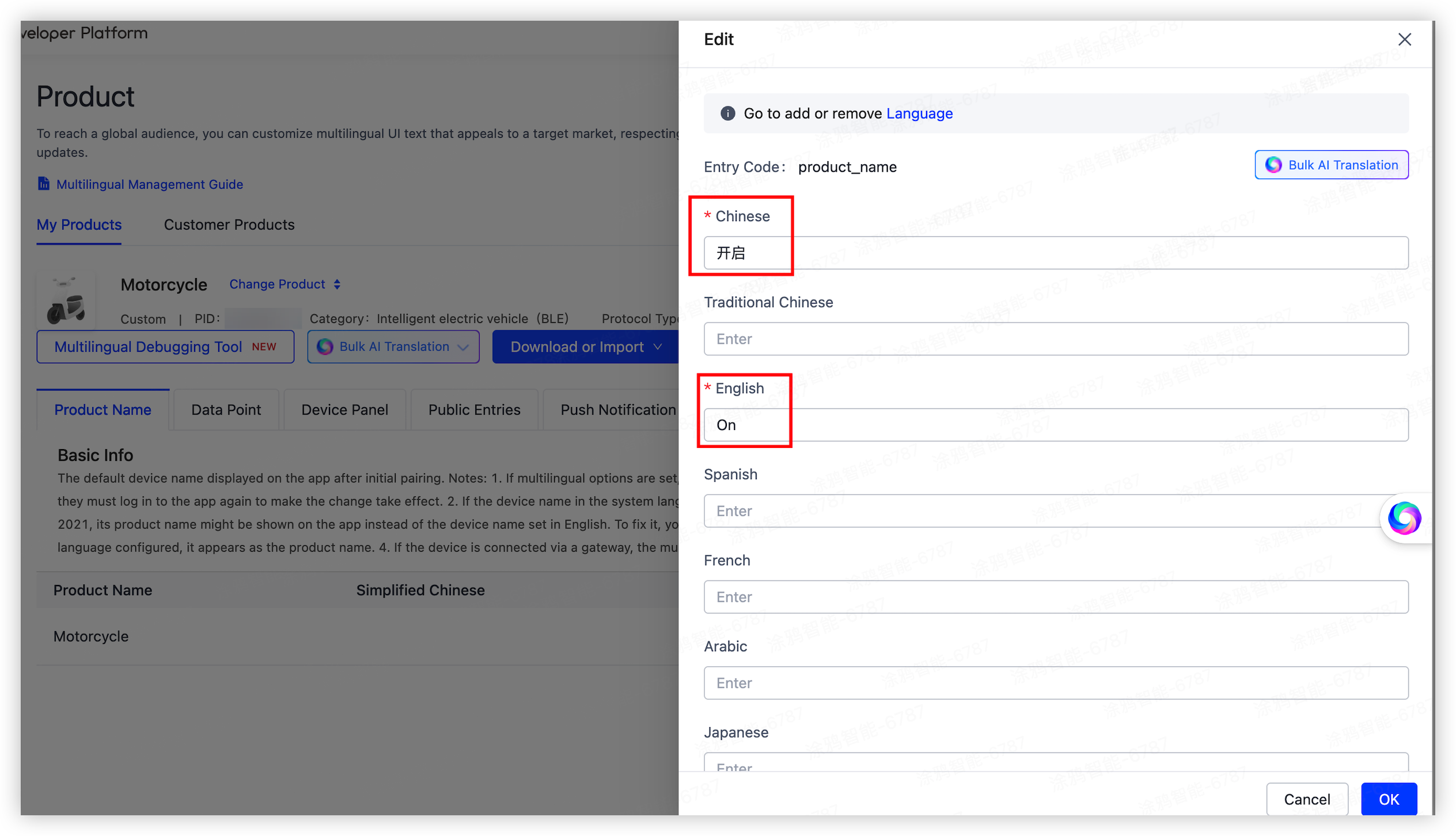

Enter descriptions for each language. You must configure Simplified Chinese and English. Configure other languages as needed.

Battery information

Battery data is critical for mobility products. Tuya recommends that you organize battery DPs from pack summary and cell details.

DP design recommendations

Dimension	Recommended DP type	Typical fields	Description
Pack summary	Standard DP (Value/Enum/Bitmap)	State of charge (SOC), total voltage, total current, battery temperature, charging status, cycle count, and estimated range.	Displayed directly on the public app panel and home page. Report on changes.
Battery Management System (BMS) fault	Fault/Bitmap	BMS communication fault, overcharge, overdischarge, overtemperature, and cell voltage delta alert.	Used for vehicle inspection and alert push. See Vehicle inspection.
Cell details	Raw DP	Cell voltage in mV, temperature in °C, internal resistance, and balancing status.	Displayed on secondary pages or tool pages. Use Raw pass-through for private BMS protocol fields.

The actual DP IDs and identifiers follow the standard DPs you select Product Configuration > Function Definition. Configure multilingual entries for all custom DPs. For more information, see Multilingual configuration.

Reporting and protocol key points

• Filter SOC jitter: Raw SOC from the BMS might jump by 1 to 2%. Smooth on-device (moving average or hysteresis), then report on change.

• Report charging status changes: Report transitions from not charging to charging or fully charged, and then to unplugged. Otherwise, the app cannot switch to the charging animation in time.

• Define units and byte order in the protocol document: Common voltage units include 0.01 V and mV. Common current units include 0.01 A and mA. Clearly define units, byte order, and signedness in the protocol document to prevent app panel rework.

• Pass through the BMS protocol with Raw: For common private BMS protocols, encapsulate the protocol as a Raw DP for pass-through. The app or cloud parses the payload per the BMS vendor protocol.

• BLE+X devices: Pack high-frequency DPs, such as battery level, voltage, and faults, during riding. For more information, see DP reporting rules.

NFC and password management

Electric vehicle apps usually provide NFC cards and power-on passwords as local unlock methods. Use them as fallbacks when the phone is dead, the network is down, or HID is unavailable.

DP configuration

DP ID	DP name	DP code	Data transfer type	Data type	Description
81	Add NFC card	nfc_id_input	Send and report (read-write)	String	See Add NFC card
82	Delete NFC card	nfc_id_delete	Send and report (read-write)	String	See Delete NFC card
83	NFC card sync	nfc_id_sync	Report only (read-only)	String	Reporting format: [{"nfc_id":"ID"},{"nfc_id": "ID"}]. The number of {} objects indicates the number of card slots supported by the app or device.
84	NFC card reset	nfc_id_reset	Send and report (read-write)	String	See Reset NFC card
87	Create password	password_creat	Send and report (read-write)	Raw	See Create password
88	Delete password	password_delete	Send and report (read-write)	Raw	See Delete password
89	Sync password	password_sync	Report only (read-only)	Raw	Reporting format: [{"pass_id":"ID","pass":"password"},...]. The number of {} objects indicates the number of password slots.

dp81: Add NFC card (nfc_id_input)

• Send:
  • Add an NFC card: {"publish":"1"}
  • Cancel adding: {"publish":"0"}
• Report:
  • Added successfully: {"upload":"1"}
  • Cancellation from the app: {"upload":"2"}
  • Local cancellation: {"upload":"4"}
  • Unauthenticated card: {"upload":"5"}
  • Quantity limit exceeded: {"upload":"6"}

dp82: Delete NFC card (nfc_id_delete)

• Send: {"nfc_id":"ID"}
• Report:
  • Deleted successfully: {"upload":"1"}
  • Failed to delete: {"upload":"0"}

dp84: Reset NFC card (nfc_id_reset)

• Send: {"publish":"1"}
• Report:
  • Reset successfully: {"upload":"1"}
  • Failed to reset: {"upload":"0"}

dp87: Create password (password_creat)

• Send: {"pass_id":"ID","pass":"Password"}. Send only one group at a time.
• Report:
  • Created successfully: {"upload":"1"}
  • Failed to create: {"upload":"0"}
  • Quantity limit exceeded: {"upload":"2"}

dp88: Delete password (password_delete)

• Send: {"pass_id":"ID"}
• Report:
  • Deleted successfully: {"upload":"1"}
  • Failed to delete: {"upload":"0"}

Sync, add, and delete NFC cards

• Sync after power-on or network connection: The device reports nfc_id_sync. For example, if the device supports up to three cards, report [{"nfc_id":""},{"nfc_id":""},{"nfc_id":""}]. When the slots are full, the app disables the Add button.
• Add: The app sends dp81 {"publish":"1"} and displays a 30 s countdown. After the card is read successfully, the device reports {"upload":"1"} and refreshes nfc_id_sync, for example [{"nfc_id":"1234"},{"nfc_id":"4321"},{"nfc_id":""}]. When the user cancels, the app sends {"publish":"0"}, and the device reports {"upload":"2"}. No further list sync is required.
• Delete: The app sends dp82 {"nfc_id":"ID"}. On success, the device reports {"upload":"1"} and syncs the list. On failure, the device reports {"upload":"0"} and does not sync.
• Reset (clear all): The app sends dp84 {"publish":"1"}. On success, the device reports {"upload":"1"} and syncs a list of empty slots. On failure, the device reports {"upload":"0"}.

For extended reporting values, configure the multilingual field ty_outdoor_dp_nfc_id_input_id in the app.

Sync, add, and delete power-on passwords

Sync after power-on or network connection: The device reports password_sync. For example, if the device supports up to two password groups, report [{"pass_id":"","pass":""},{"pass_id":"","pass":""}]. When the slots are full, the app disables adding.

Add password

After the user enters a four-digit PIN in the app dialog, the app sends dp87 (password_creat) such as {"pass_id":"001","pass":"1234"}. On success, the device reports {"upload":"1"} and performs a full password_sync.

Delete password

The app sends dp88 (password_delete) {"pass_id":"001"}. On success, the device reports {"upload":"1"} and syncs the list. On failure, the device reports {"upload":"0"} and does not sync.

For extended reporting values, configure the multilingual field ty_outdoor_dp_password_creat_id.

Product and security requirements

• The app provides add, name, delete, and enable or disable NFC cards. The device unlocks by local UID matching without network access. The unlock source is reported through a DP for trip records and auditing.
• The app sets a 4- to 6-digit PIN (the public interaction uses 4 digits). The MCU verifies it and stores it locally. Do not log the password in plain text or upload it to the cloud.
• Tuya recommends that you support lockout, delay, or alert reporting after N wrong inputs. Write the strategy into DPs and the protocol document.
• On unbind, clear the NFC whitelist and power-on password. Force a reset when the primary user changes.

Firmware update and OTA

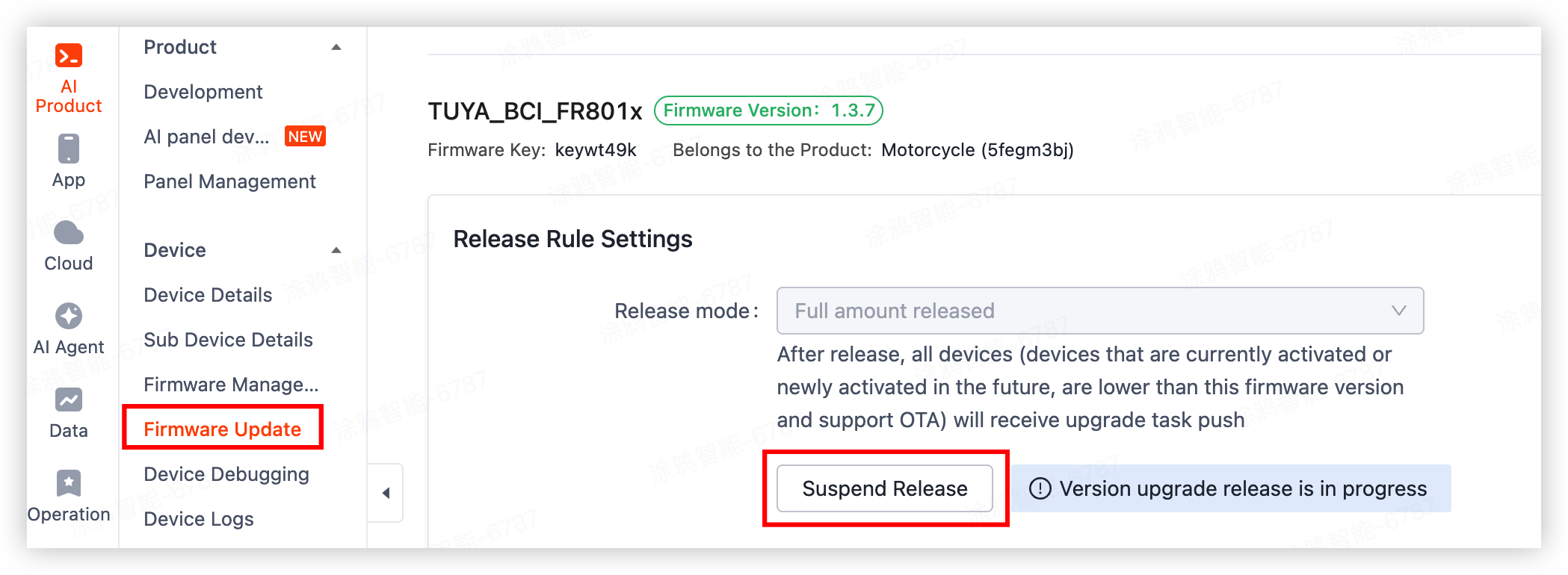

Why does the app still prompt an update after you remove firmware?

Symptom: After a developer removes a firmware version, the app still prompts users to update to a new version.

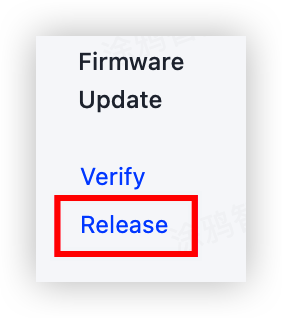

Solution: First release the target firmware version in the cloud, and then pause or revoke the release on the firmware update page. The app cache expires automatically. Direct removal causes an incomplete version tree, and the app still follows the cached update guide.

Telink TuyaOS (TLSR) OTA update fails

Root cause: The old SDK applies a hard limit on the firmware size and does not support upgrades for firmware larger than 124 KB.

Solution: Upgrade the TuyaOS SDK version. The new version removes this limit. As an emergency workaround only, reduce the firmware size to 124 KB or less.

HID proximity unlock

How it works

The solution uses BLE HID + SecurityManager to unlock by proximity without opening the app.

• When Bluetooth is enabled on the phone, the phone reconnects automatically to a paired HID device nearby.

• The device determines distance by Bluetooth Received Signal Strength Indicator (RSSI) and triggers lock or unlock.

• A traditional Bluetooth LE device connects only while the app is open and disconnects when the app closes. An HID device stays paired in the system Bluetooth list. The app checks the system connection and then reads the scan response packet or uses the standard connection path.

Key differences from a traditional Tuya Bluetooth LE device:

Stage	Traditional Bluetooth LE device	HID device
Connection and binding	Connect when the app opens and disconnect when the app exits	If the system is already paired, the app reads the connected device. If not paired, the device initiates a pairing request.
Unbinding while online	Send a Tuya Bluetooth LE command to clear binding	Send a command to clear binding and delete the phone system Bluetooth pairing information.
Unbinding while offline	Any phone or gateway sends an abnormal unbinding command	Offline unbinding is not supported

DP quick reference

DP ID	Identifier	Feature	Description
dp92	auto_unlock	Auto unlock	Sent by the iOS app. The device initiates a pairing request on receipt.
dp93	auto_unlock_pair	Auto unlock pairing	Sent by the Android app. The app initiates a pairing request.
dp94	fortify_distance_record	Arm distance record	After auto unlock is enabled, auto lock is enabled automatically.
dp95	disarm_distance_record	Disarm distance record	FR8018 HID 2.0 ignores this DP
dp96	hid_bind	HID binding	—

Troubleshoot iOS and Android inconsistencies

Android works but iOS does not

• Confirm the DP list includes both dp92 and dp93.

• Confirm the device processes dp92. In the iOS path, the device must initiate the pairing request.

iOS works but Android does not

• Confirm the DP list includes both dp92 and dp93.

• Review the device logic branches for dp92 and dp93.

• Review the app HID version. The HID 1.0 Android app does not initiate pairing requests.

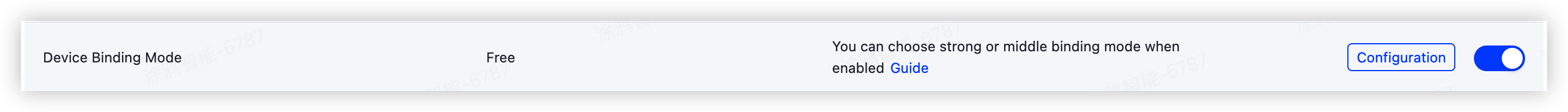

Phone still reconnects automatically after local unbinding

• Confirm HID is enabled. With HID on, local unbinding must also remove the device from phone system Bluetooth settings. Otherwise, the system automatically reconnects.

• Confirm local unbinding also clears the persistent binding information on the device.

Vehicle inspection

DP configuration

In Product Development > Function Definition, select or configure fault DPs based on the standard mobility panel. Typical items are as follows. The actual DP IDs depend on your product.

DP name	DP code	Data transfer type	Data type	Description
Fault detection	fault_detection	Send and report (read-write)	Boolean	User-triggered inspection entry. The app sends 1 to trigger inspection.
Power system	power_system	Report only (read-only)	Fault	Fault values: Current fault: current_fault Voltage fault: voltage_fault Line fault: line_fault Power tube fault: power_tube_fault Hall sensor fault: hall_sensor_fault Temperature sensor fault: temp_sensor_fault Communication bus fault: com_bus_fault Drive fault: drive_fault
Smart system	smart_system	Report only (read-only)	Fault	Fault values: OTA fault: ota_fault Some models also include handlebar fault: handlebar_fault. Add or remove as needed.
Lithium battery system	lithium_battery	Report only (read-only)	Fault	Fault values: Discharge fault: discharge_fault Charge fault: charge_fault Battery balancing fault: battery_balance_fault Battery temperature fault: battery_temp_fault Battery BMS fault: battery_bms_fault
Electronic system	electronic_system	Report only (read-only)	Fault	Customize fault bits based on the solution. Configure display text for each bit in multilingual settings.

Configuration notes:

• You can modify or customize fault DPs and fault values as needed. The app distinguishes each fault DP in the UI and supports up to 10 fault DPs.

• Configure display text for fault values in multilingual settings. Otherwise, the app fault dialog shows blank entries.

Data definition

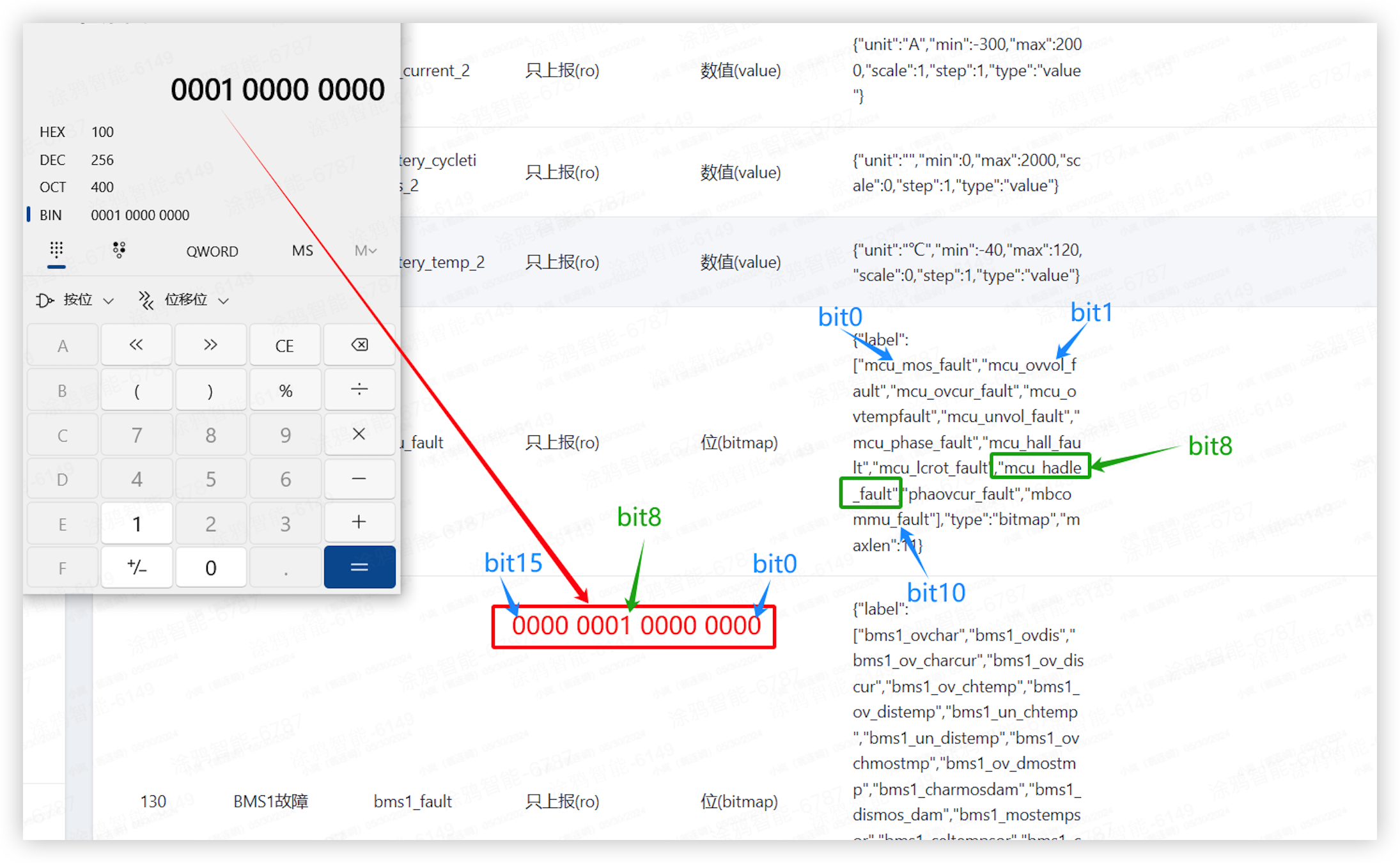

A fault DP has a length of 1, 2, or 4 bytes. Each bit represents whether a specific test item is abnormal. Bits beyond the defined ones are padded with 0. Setting an out-of-range bit to 1 triggers the exception branch.

Example: Power system with eight fault values

current_fault, voltage_fault, line_fault, power_tube_fault,
hall_sensor_fault, temp_sensor_fault, com_bus_fault, drive_fault

Reported value	Meaning
0x00	No fault in all eight items
0x03	bit0 and bit1 have faults (current_fault, voltage_fault). All other items are normal.

The following serial port packet corresponds to 0x03 for the power system:

55 AA 00 07 00 05 1C 05 00 01 03 30

Multilingual settings

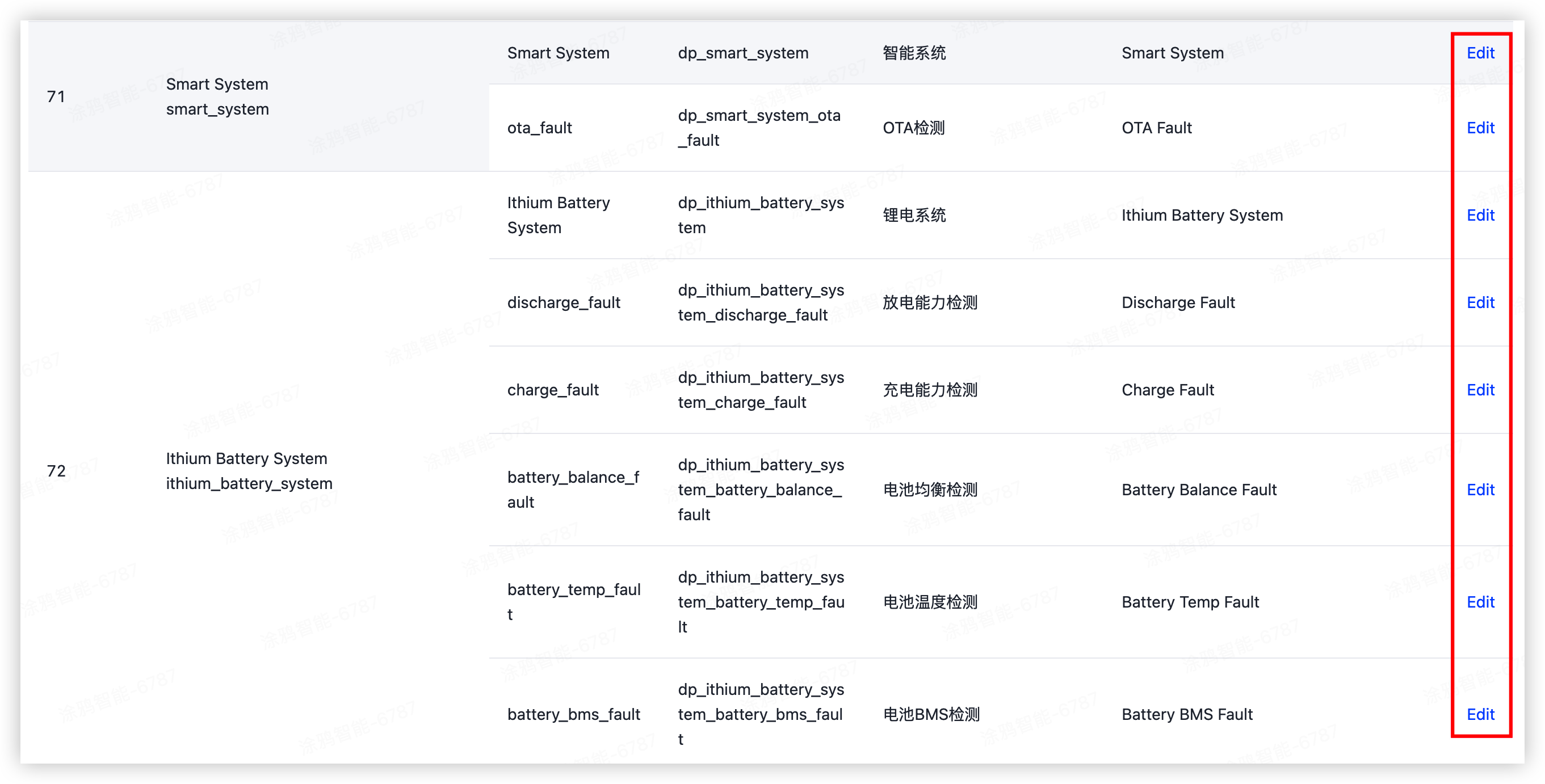

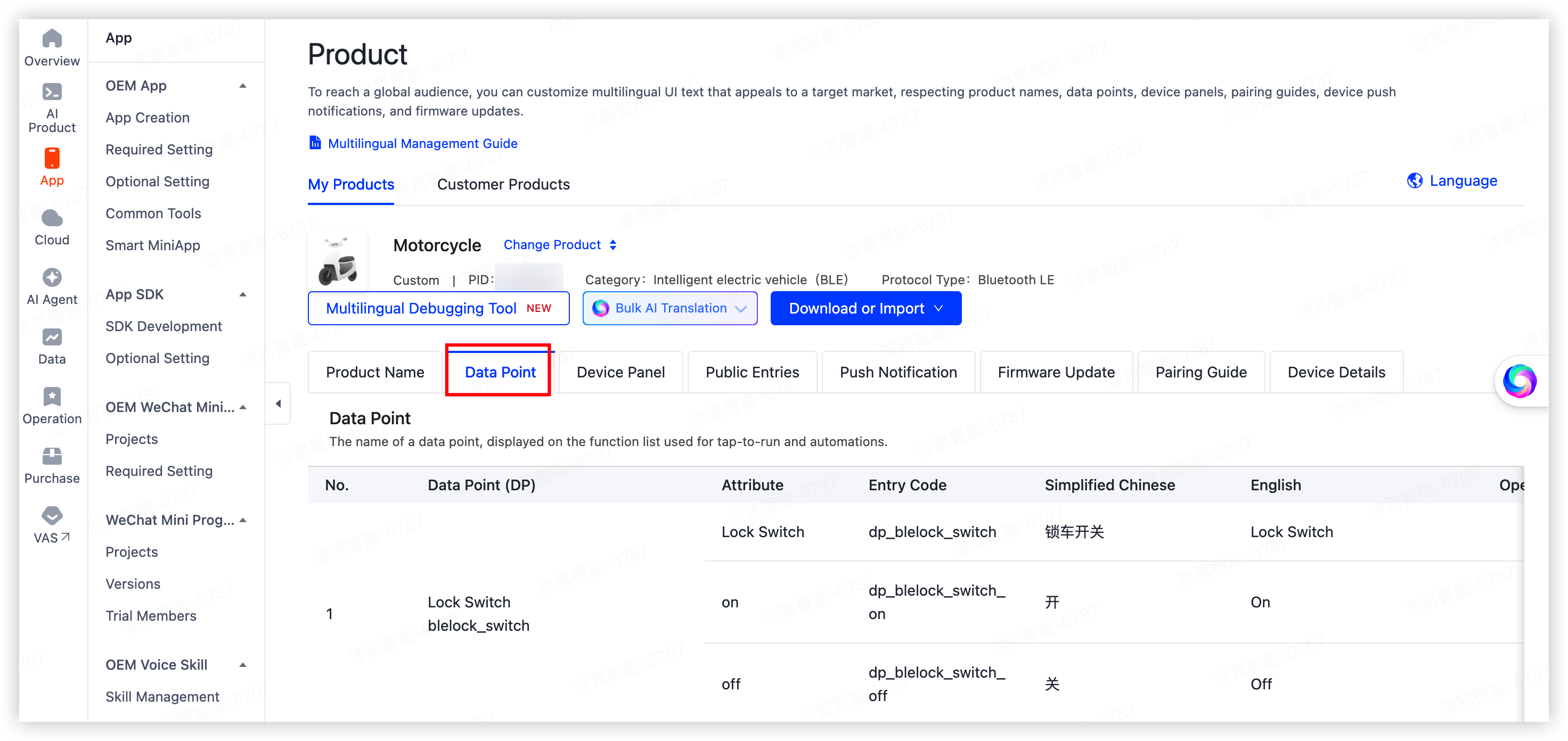

Go to Product Configuration > Multilingual > Data Point. Find the fault DP and complete the multilingual text for each fault value. Configure multilingual entries for all custom fault DPs and custom fault values. Otherwise, raw key strings appear in the app.

User-triggered inspection and device-triggered reporting

User-triggered inspection

• The user taps Vehicle Inspection or Reinspect in the app, and the app sends fault_detection=1.

• After receiving the command, the device runs a local inspection, and then reports fault_detection=1 and all fault DPs simultaneously.

• The app uses the time when it receives fault_detection=1 as the inspection time and counts the reported faults.

• After the app sends the command, it starts a 60-second timer. Report all data within 60 seconds, or the app returns an error.

Device-triggered reporting

When a vehicle fault occurs, the device can automatically report fault DPs. You can configure FAQ entries and message push for fault information on the Tuya Developer Platform. When triggered, the cloud pushes notifications to the app message center and the system notification bar. This requires the product to have the notification push service enabled.

For more information about device notification push, see Configure Push Notification.

Trip records

Key differences between Bluetooth vehicles and 4G vehicles

Dimension	Bluetooth vehicle	4G vehicle
Location source	Phone GPS	Cellular module location on the device
Reporting channel	Reported by the app	Reported by the device and stored in the cloud
How to enter trip records	Tap Start Riding manually	Tap ride navigation and enter the virtual dashboard
Flow	Map navigation > Start riding > Virtual dashboard > Report (cloud fills timestamps) > Exit	Map navigation > Virtual dashboard > Report (cloud fills timestamps) > Exit

DP reporting logic for Bluetooth vehicles

Trigger

The app generates trip records from Start Riding or End Riding button taps. If the user directly returns to the homepage or terminates the process, trip records appear after a short delay.

Built-in app filtering logic

• The app reports GPS locations only when the device reports a non-zero speed. When speed is 0, the app does not report GPS locations.

• Trips shorter than 100 m do not generate trip records. This prevents accidental taps.

• GPS drifts indoors. The app filters GPS points with speed 0 during trip generation, but not during riding.

Device-side requirements

Report related DPs on changes. Packing is not required:

• start = 1 (already reported)

• Speed

• Single mileage

• Battery level

Data source for single riding time and average speed

• If you select Single Riding Time and Single Average Speed in the DP list on the Tuya Developer Platform, the app prioritizes the values reported by the device.

• If you do not select these two DPs, the cloud starts timing from the trip start point and calculates single-trip average speed by Single Mileage / Single Riding Time.

DP reporting logic for 4G vehicles

Related DPs

Start (ACC=1), Single Mileage, Speed, Battery Level, GPS.

Trip start point

The cloud takes the point at which it receives start=1, Single Mileage, and GPS at the same time. At each start, the single mileage of the first point is 0.

Reporting sequence

• Vehicle startup: Pack and report five DPs above. The device must report start=1, Single Mileage, and GPS. Speed and battery level are optional.

• During driving: Continuously pack and report the five DPs. Tuya recommends reporting every 5 to 10 seconds. Use the default channel and prioritize cellular.

• Vehicle power-off: Pack and report five DPs above. The device must report start=0, Single Mileage, and GPS. Speed and battery level are optional.

Ride navigation (dashboard display)

DP configuration

Parse direction codes

The turn arrow on the dashboard is driven by the direction code. The following table maps codes to turn types.

Field	Value
Turn left	2
Turn right	3
Left front	4
Right front	5
Left back	6
Right back	7
Take a left U-turn	8
Go straight	9
Enter the roundabout	11
Leave the roundabout	12
Reach the destination	15
Turn left around the island, move within a roundabout in right-hand traffic, and circulate in an anticlockwise direction	21
Turn right around the island, move within a roundabout in right-hand traffic, and circulate in an anticlockwise direction	22
Go straight around the island, move within a roundabout in right-hand traffic, and circulate in an anticlockwise direction	23
Make a U-turn around the island, move within a roundabout in right-hand traffic, and circulate in an anticlockwise direction	24

Map and navigation selection

Selection by region and platform

Purpose	Region	Platform	Service provider
Map	Mainland China	Android	Amap
Map	Mainland China	iOS	Apple Maps
Map	Overseas	Android	Google
Map	Overseas	iOS	Apple Maps
Navigation	Mainland China	Android	Amap
Navigation	Mainland China	iOS	Amap
Navigation	Overseas	Android	Mapbox
Navigation	Overseas	iOS	Mapbox

Resource links:

• Apply for a Google Maps Android API key
• Apply for an Amap key
• Mapbox official website

Troubleshoot invalid map keys

When a map key is incorrect, expired, or rate-limited, the app commonly shows the following:

• Maps unavailable: map configuration is not set.
• Route planning failed: MD5 security code verification failed.

Troubleshoot in the following order:

1. Key validity: Confirm the console key is not expired.
2. SHA1: Confirm the signing certificate SHA1 is allowlisted.
3. Network allowlist: Confirm IP or domain restrictions are correct.
4. Build type: Confirm you are not mixing Debug and Release keys.

Geofence

See Vehicle Geofence

Push notifications

The Tuya cloud device message service triggers push notifications in the app message center and system notification bar.

• See Configure Push Notification
• Flow: Device reports DPs > Cloud matches message templates > Cloud pushes to the app and system notification bar.

Self-check list:

• In Product Configuration > Device Notification/Alert Service, confirm that the target DP has a message template configured, including multilingual text.

• On the device side, confirm that the DP report is visible to the cloud (you can see the DP value change in the product debugging panel).

• In the app, go to Me > Message Center > Notifications Settings, confirm that the switch for the corresponding category is on and that the system notification permission is granted.

• If push still fails—for example, messages are sent but not received—contact your Tuya project contact or submit a service ticket. Tuya support can help query message sending records and UID push status.

Cellular reports the Bluetooth version number

The cellular module reports the Bluetooth version number in these cases:

1. Cellular startup: Query BLE version → BLE responds → report after the server connection is up.
2. After a peripheral OTA via cellular: Query BLE version again → BLE responds → report.

General troubleshooting

The app cannot scan the device

Troubleshoot as follows:

• Standard integration (MCU SDK): The module is not initialized. See Basic Features and Module Debugging Assistant to complete initialization.

• TuyaOS: Confirm broadcasting is enabled.

• Search online for nRF Connect usage if needed.

• Pairing status:

  • 0x41 (not paired): The device has not been bound to an account. The app can discover it through standard search and start pairing. This is common after factory reset or unbinding. The first byte of Service Data is 0x41.
  • 0x49 (paired): The device has been bound to an account. You must unbind it first before the app of a new account can find and connect to it.

• Pairing mode:

  • 0x06 (self-discovery + QR code pairing): The app can discover the device through device list search and also supports QR code pairing. When the first byte of Manufacturer Data is 0x06, the device usually supports this capability.
  • 0x08 (QR code pairing): The app does not discover the device through standard search. The user can only complete pairing by scanning the QR code. If nRF Connect can find the device but the app list cannot, confirm the mode is 0x08 first.

Pairing fails

Possible causes:

• After pairing succeeds, the app immediately sends a command (0x00) to query the device model. If the device does not respond within the timeout, the app disconnects. Check the device-side logic for the 0x00 command.

• The device has strong binding enabled and has not been unbound from the old account. See Still bound to Account A.

Still bound to Account A

If Account A is still bound, Account B can discover the device but cannot pair. Tuya divides the binding relationship between users and devices into three levels: strong binding, medium binding, and weak binding. The level is configured on the PID and can be changed at any time, taking effect immediately. Cross-region strong binding requires device removal plus re-activation before the new rules apply.

Level	Definition	Typical scenario
Strong binding	The current user must unbind the device in the app before another user can pair it. The cloud rejects cloud reset API calls from the device.	IPC, door lock, and electric bicycles with high security requirements
Medium binding	Less restrictive than strong binding. Commonly used when products are unbound through service tickets after resale.	—
Weak binding	A local device reset is enough for a new account to pair.	Appliances without security sensitivity

Special cases for strong binding

• No restriction before user binding: A device that calls active and activates successfully but has not bound a user can activate again.

• Same-home administrator exemption, effective from May 18, 2023: If the pairing user has administrator permissions for the home that contains the device, the user can directly activate the device again without unbinding first.

• The cloud distinguishes devices by UUID: The same physical device with different UUIDs is treated as two devices by the cloud. Different physical devices with the same UUID are treated as one.

• Forced pairing is rejected: The app prompts in both the same region and cross-region: The device is bound by another user, and you cannot pair.

How to unbind

• Self-service in the app (recommended and faster): Log in with the bound account, go to device details, and tap Unbind Device or Unbind and Clear Data.

• Via Tuya support: If you cannot contact the old account owner, a test sample is missing, or the customer has left the company, submit a service ticket and provide the PID, UUID, and MAC address. Tuya can help unbind the device in the backend.

Strong binding behavior

Account A connects to the device.
  └─ The device is locally reset after disconnection.
       └─ The device broadcasts as "unbound".
            └─ Account B discovers the device but cannot connect (app disconnects).
                 └─ Account A cannot connect from the original screen, but can "Add Device" and pair successfully.
                      └─ After Account A performs "Unbind" or "Unbind and Clear Data", Account B can connect.

Weak binding behavior

Account A connects to the device.
  └─ The device is locally reset after disconnection.
       └─ The device broadcasts as "unbound".
            └─ Account B discovers the device and connects successfully.

Troubleshooting

Confirm strong binding is enabled. You can view the binding level attribute of the PID on the product configuration page.

Phone still reconnects automatically after local unbinding

This is usually an HID issue. See Phone still reconnects automatically after local unbinding in HID proximity unlock.

Unable to pair after unbind: hardcoded authorization license

• Root cause: The customer directly hard-coded the triplet, including PID, UUID, and Authkey, in code and enabled an independent authorization process. Authorization fails and invalidates the authorization triplet written in code.

• Solution: Replace it with a valid triplet and authorize again. The long-term solution is to avoid hard-coding the triplet and complete the standard flashing process based on Flashing and Authorization.

Recover a lost pairing QR code

1. Get the MAC address or SN of the device.

2. Regenerate the QR code with the QR code generation tool on the platform.

3. Attach the laser-printed SN sticker to the device.

Bluetooth cross-region pairing

• Key rules:

  • Enable the two advanced capabilities, shared device cross-region activation and Bluetooth cross-region synchronization, on the order PID. Do not enable them on the PID after activation.

  • The post-activation PID is known only after activation, but both flags are evaluated at pre-activation discovery, so the system checks the order PID.

• If the two flags are incorrectly enabled on the PID after activation, check the following items:

  • On the product configuration page, confirm the PID matches the authorization PID.

  • Contact your Tuya project contact to check the device order PID and authorization status. This involves an internal authorization information query tool.

Bluetooth is unstable or disconnects frequently

Troubleshoot in the following order:

1. Antenna and shielding: Check for metal shielding over the antenna and interference from nearby components (for example, inductors).

2. MCU interrupt load: Look for frequent interrupts in the application (for example, a high-frequency timer interrupt). High-frequency interrupt can starve the Bluetooth stack and cause dropped connections.

3. Interrupt callback duration: Reduce the code running time in interrupt callbacks to avoid blocking the Bluetooth protocol stack.
