WBR2D Module Datasheet

Last Updated on : 2024-06-14 03:15:56download

WBR2D is a low-power embedded Wi-Fi module that Tuya has developed. It consists of a highly integrated wireless RF chip (W701D-VA1-CG), a few peripherals, a built-in Wi-Fi network protocol stack, the Bluetooth network protocol, and varied library functions.


WBR2D has an embedded low-power 32-bit CPU, 512-KB SRAM, 4-MB flash memory, and rich peripherals.

WBR2D is an RTOS platform that integrates all function libraries of the Wi-Fi MAC and TCP/IP. You can develop embedded Wi-Fi products as required.


  • Embedded low-power 32-bit CPU, which can also function as an application processor
  • The maximum clock rate: 200 MHz
  • Operating voltage: 3.3±0.3V
  • Peripherals: 6 GPIOs, 1 UART, 1 UART (which can display log information and be used for debugging), and 1 ADC
  • Wi-Fi connectivity
    • 802.11 a/b/g/n 1x1, 2.4 G&5 G
    • Channels 1 to 14@2.4 GHz; channels 36 to 177@5 GHz
    • Support WEP/WPA/WPA2/WPA2 PSK (AES) WPA3 security mode
    • Up to +17 dBm output power in 802.11b mode; up to +15 dbm output power in 802.11a mode
    • Support STA/AP/STA+AP working mode
    • Support SmartConfig and AP network configuration manners for Android and iOS devices
    • Onboard PCB antenna with a gain of 2 dBi@2.4 G or 2.6 dBi@5 G
    • Operating temperature: -20℃ to 85℃
  • Bluetooth LE connectivity
    • Support Bluetooth LE V5.0
    • Up to +9 dBm output power
    • PCB antenna with a gain of 2 dBi@2.4 G, which is shared by Wi-Fi and Bluetooth
    • Operating temperature: -20℃ to 85℃


  • Intelligent building
  • Smart household and home appliances
  • Smart socket and light
  • Industrial wireless control
  • Baby monitor
  • Network camera
  • Intelligent bus

Module interfaces

Dimensions and footprint

The WBR2D dimensions (H x W x L) are 3.5±0.15 mm x 15±0.35 mm x 18±0.35 mm.

Diagram of dimensions of WBR2D:

WBR2D Module Datasheet
WBR2D Module Datasheet

Pin definition

WBR2D Module Datasheet

Pin number Symbol I/O type Function
1 VCC P The internal level conversion circuit supplies power to the input pin and the actual voltage is the voltage uploaded by the user’s backplane
2 A28 I/O Common GPIO pin, hardware PWM
3 GND P Power supply reference ground pin
4 A26 I/O Common GPIO pin, hardware PWM
5 RX I/O RXD pin of the serial interface
6 A25 I/O Common GPIO pin, hardware PWM
7 TX I/O TXD pin of the serial interface
8 ADC AI ADC pin (See the following Note 2.)
9 A12 I/O Common GPIO pin, hardware PWM
10 EN I/O External reset pin
11 A13 I/O Common GPIO pin, hardware PWM


  • P indicates power supply pins, I/O indicates input/output pins and AI indicates analog input pins.
  • RST is only a hardware reset pin and cannot be used for clearing information about Wi-Fi network configuration.

Definitions on test points

Pin Number Symbol I/O type Function
- TEST I Be used for the production test of the module

Note: Test pins are not recommended.

Electrical parameters

Absolute electrical parameters

Parameter Description Minimum value Maximum value Unit
Ts Storage temperature -20 85
VBAT Power supply voltage 3.0 3.6 V
ESD voltage (human body model) TAMB-25℃ - 2 KV
ESD voltage (machine model) TAMB-25℃ - 0.5 KV

Normal working conditions

Parameter Description Minimum value Typical value Maximum value Unit
Ta Operating temperature -20 - 85
VBAT Power supply voltage 3.0 3.3 3.6 V
VIL I/O low-level input -0.3 - VCC*0.25 V
VIH I/O high-level input VCC*0.75 - VCC V
VOL I/O low-level output - - VCC*0.1 V
VOH I/O high-level output VCC*0.8 - VCC V
Imax I/O drive current - - 12 mA

TX and RX power consumption

Transmission and receiving at 2.4G

Working status Mode Rate Transmit power/Receive Typical value Unit
Transmit 11 b 11Mbps +18dBm 250 mA
Transmit 11g 54Mbps +17dBm 180 mA
Transmit 11n-HT20 MCS7 +16dBm 170 mA
Transmit 11n-HT40 MCS7 +16dBm 150 mA
Receive 11b 11Mbps Constantly receive 70 mA
Receive 11g 54Mbps Constantly receive 72 mA
Receive 11n-HT20 MCS7 Constantly receive 70 mA
Receive 11n-HT40 MCS7 Constantly receive 73 mA

Transmission and receiving at 5G

Working status Mode Rate Transmit power/Receive Typical value Unit
Transmit 11a 54Mbps +15dBm 300 mA
Transmit 11n-HT20 MCS7 +15dBm 230 mA
Transmit 11n-HT40 MCS7 +14dBm 220 mA
Receive 11a 54Mbps Constantly receive 71 mA
Receive 11n-HT20 MCS7 Constantly receive 72 mA
Receive 11n-HT40 MCS7 Constantly receive 76 mA

Operating current

Working mode Working status, Ta = 25℃ Average value Maximum value (Typical value) Unit
Quick network connection state The module is in the fast network connection state and the Wi-Fi indicator flashes fast 57 184 mA
Hotspot network connection state The module is in the hotspot network connection state and the Wi-Fi indicator flashes slowly 203 392 mA
Connected The module is connected to the network and the Wi-Fi indicator is always on 55 98 mA
Disconnected The module is disconnected and the Wi-Fi indicator is dark 53 59 mA

RF parameters

Basic RF features

Parameter Description
Working frequency 2.412 to 2.484 GHz; 5.180 to 5.885 GHz
Wi-Fi standard IEEE 802.11 a/b/g/n (Channels 1 to 14; channels 36 to 177)
Data transmission rate 11b: 1, 2, 5.5, 11 (Mbps)
11 a/g: 6, 9, 12, 18, 24, 36, 48, 54 (Mbps)
11n: HT20 MCS 0 to 7, HT40 MCS 0 to 7
Antenna Type PCB antenna with a gain 2 dBi@2.4 G, PCB antenna with a gain 2.6 dBi@5G

TX performance

TX performance at 2.4G

Parameter Minimum value Typical value Maximum value Unit
Average RF output power, 802.11b CCK Mode 11M - 17 - dBm
Average RF output power, 802.11g OFDM Mode 54M - 16 - dBm
Average RF output power, 802.11n HT20 Mode MCS7 - 15 - dBm
Average RF output power, 802.11n HT40 Mode MCS7 - 14 - dBm
Frequency error -10 - 10 ppm

TX performance at 5G

Parameter Minimum value Typical value Maximum value Unit
Average RF output power, 802.11a OFDM Mode 54M - 15 - dBm
Average RF output power, 802.11n HT20 Mode MCS7 - 14 - dBm
Average RF output power, 802.11n HT40 Mode MCS7 - 13 - dBm
Frequency error -10 - 10 ppm

RX performance

RX sensitivity

Parameter Minimum value Typical value Maximum value Unit
PER<8%, RX sensitivity, 802.11b DSSS Mode 11M - -91 - dBm
PER<10%, RX sensitivity, 802.11a/g OFDM Mode 54M - -75 - dBm
PER<10%, RX sensitivity, 802.11n OFDM Mode HT20-MCS7 - -72 - dBm


Antenna type

WBR2D uses only an onboard PCB antenna.

Antenna interference reduction

To ensure optimal Wi-Fi performance when the Wi-Fi module uses an onboard PCB antenna, it is recommended that the antenna be at least 15 mm away from other metal parts.

To ensure antenna performance, the PCB should not be routed or clad with copper in the antenna area. The main points of the layout:

  • Make sure that there is no substrate medium directly below or above the printed antenna.
  • Make sure that the area around the printed antenna is far away from the metal copper skin, so as to ensure the radiation effect of the antenna to the greatest extent.

WBR2D Module Datasheet

For the antenna area of the PCB of the module, refer to the diagram of Mechanical Dimensions.

Power-on sequence and resetting

Power-on sequence

The RTL8720DN chip has requirements on the power-on sequence. It is recommended that the voltage rises from 0 to 3.3V within 40ms.

WBR2D Module Datasheet

Symbol Parameter Minimum Typical Maximum Unit
TPRDY 3.3V ready time 0.6 40 ms
CHIP_EN CHIP_EN ready time 0.6 40 ms


When designing a plate of a module, you should reserve a reset IC on the pin CHIP_EN. The preferable type of IC is BL8506-27CRO. The IC is packaged in the form of SOT23. Refer to the circuit in the following figure (R30 is reserved and may not be mounted).

WBR2D Module Datasheet

Treatment of Pin GPIO

A few pins (PA 12, PA 13, PA 15, PA 25, PA 28, and PA 26) of the module will have instantaneous high-level pulses before the chip fully works, and everything will be normal after the chip works. For these pins, if they are directly used as driving light sources or relays, in order to avoid the effect of burrs at the moment of power-on, refer to the following processing:

Pull down a 1K resistor at an output port of a pin, and then connect a diode in series. In this case, the voltage of a GPIO will drop to about 2.7V after passing through the diode. The red box represents the original drive tube on the customer’s baseboard. A diode D1 and pull-down 1-KΩ resistor need to be added.

If a lamp is directly driven, pull down a 10-KΩ resistor on the grid of the positive MOS. If a lamp is not directly driven and a PWM signal will not be sent until the module is officially launched, there is no need to add a pull-down resistor and diode.

If a relay is driven, you can change the diode to a resistor of 0 Ω according to the actual situation.

WBR2D Module Datasheet

Packaging information and production instructions

Mechanical dimensions

The PCB dimensions are 15±0.35 mm (W)×18±0.35 mm (L) ×0.8±0.1 mm (H).

WBR2D Module Datasheet

WBR2D Module Datasheet

Note: The default dimensional tolerance is ±0.35 mm. If you have any specific requirements on the key dimensions, please make them clear in the module datasheet.

Side view

WBR2D Module Datasheet

Note: The default dimensional tolerance is ±0.35 mm. If you have specific requirements on dimensions, make them clear in the datasheet after communication.

Schematic diagram of a package

WBR2D Module Datasheet

PCB footprint

Optionally, WBR2D can adopt the in-line package.

WBR2D Module Datasheet

Production instructions

  1. For the Tuya in-line module, wave soldering is most preferred and manual soldering is less preferred. After being unpacked, the module must be soldered within 24 hours. Otherwise, it must be put into the drying cupboard where the RH is not greater than 10%; or it needs to be packaged under vacuum again and record the exposure time (the total exposure time cannot exceed 168 hours).
  2. Wave soldering devices and materials:
    • Wave soldering equipment
    • Wave soldering fixture
    • Constant-temperature soldering iron
    • Tin bar, tin wire, and flux
    • Thermal profiler
  3. Baking devices:
    • Cabinet oven
    • Anti-electrostatic and heat-resistant trays
    • Anti-electrostatic and heat-resistant gloves
  4. The module needs to be baked in the following cases:
    • The packaging bag is damaged before unpacking.
    • There is no humidity indicator card (HIC) in the packaging bag.
    • After unpacking, circles of 10% and above on the HIC become pink.
    • The total exposure time has lasted for over 168 hours since unpacking.
    • More than 12 months have passed since the sealing of the bag.
  5. Baking settings:
    • Temperature: 40°C and ≤ 5% RH for reel package and 125°C and ≤5% RH for tray package (please use the heat-resistant tray rather than a plastic container)
    • Time: 168 hours for reel package and 12 hours for tray package
    • Alarm temperature: 50°C for reel package and 135°C for tray package
    • Production-ready temperature after natural cooling: < 36°C
    • Re-baking situation: If a module remains unused for over 168 hours after being baked, it needs to be baked again.
    • If a batch of modules is not baked within 168 hours, do not use the wave soldering to solder them. Because these modules are Level-3 moisture-sensitive devices, they are very likely to get damp when exposed beyond the allowable time. In this case, if they are soldered at high temperatures, it may result in device failure or poor soldering.
  6. In the whole production process, take electrostatic discharge (ESD) protective measures.
  7. To guarantee the quality of products, you must pay attention to the following items: The amount of soldering flux, the height of the wave peak, whether the tin slag and copper content in the wave soldering tank exceed standards, whether the window and thickness of the wave soldering fixture are appropriate, and whether the wave soldering oven temperature curve is appropriate.

Recommended oven temperature curve and temperature

Set oven temperatures according to the following temperature curve of wave soldering. The peak temperature is 260°C±5°C.

WBR2D Module Datasheet

Recommended soldering temperature:

Suggestions on oven temperature curve of wave soldering Suggestions on manual soldering temperature
Preheat temperature 80 to 130 °C Soldering temperature 360±20°C
Preheat time 75 to 100s Soldering time <3s/point
Peak contact time 3 to 5s NA NA
Temperature of tin cylinder 260±5°C NA NA
Ramp-up slope ≤2°C/s NA NA
Ramp-down slope ≤6°C/s NA NA

Storage conditions

Storage conditions for a delivered module:

  • The moisture-proof bag is placed in an environment where the temperature is below 40°C and the relative humidity is lower than 90%.

  • The shelf life of a dry-packaged product is 12 months from the date when the product is packaged and sealed.

  • There is a humidity indicator card (HIC) in the packaging bag.

    WBR2D Module Datasheet

    WBR2D Module Datasheet

MOQ and packaging information

Product model MOQ (pcs) Shipping packaging method Number of modules per reel Number of reels per carton
WBR2D 4000 Tape reel 1000 4

Appendix: Statement

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This device has been tested and found to comply with the limits for a Class B digital device, according to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used following the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the device and receiver.
  • Connect the device to an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

Radiation Exposure Statement

This device complies with FCC radiation exposure limits set forth for an uncontrolled rolled environment. This device should be installed and operated with a minimum distance of 20cm between the radiator and your body.

Important Note

This radio module must not be installed to co-locate and operate simultaneously with other radios in the host system except following FCC multi-transmitter product procedures. Additional testing and device authorization may be required to operate simultaneously with other radios.

The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end-user.

The host product manufacturer is responsible for compliance with any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed.

The end-user manual shall include all required regulatory information/warnings as shown in this manual, including “This product must be installed and operated with a minimum distance of 20 cm between the radiator and user body”.

This device has got an FCC ID: 2ANDL-WBR2D. The end product must be labeled in a visible area with the following: “Contains Transmitter Module FCC ID: 2ANDL-WBR2D”.

This device is intended only for OEM integrators under the following conditions:

The antenna must be installed such that 20cm is maintained between the antenna and users, and the transmitter module may not be co-located with any other transmitter or antenna.

As long as the 2 conditions above are met, further transmitter tests will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed.

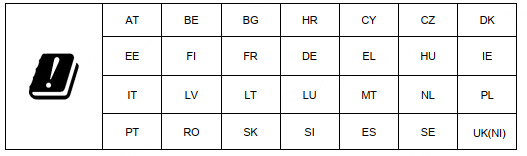

Declaration of Conformity European Notice

WBR2D Module Datasheet

Hereby, Hangzhou Tuya Information Technology Co., Ltd declares that this module product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU,2011/65/EU. A copy of the Declaration of conformity can be found at https://www.tuya.com.

WBR2D Module Datasheet

This product must not be disposed of as normal household waste, in accordance with the EU directive for waste electrical and electronic equipment (WEEE-2012/19/EU). Instead, it should be disposed of by returning it to the point of sale, or to a municipal recycling collection point.

The device could be used with a separation distance of 20cm to the human body.
